Parts; Figure 23. Check Valve And Pressurstat Assembly; Table G - Veeder-Root Red Jacket Maxxum Big-Flo Quick-Set Series Installation, Operation & Service Manual

Parts

8
7
6
5
Item
1
2
3
4
5
6
7
8
9

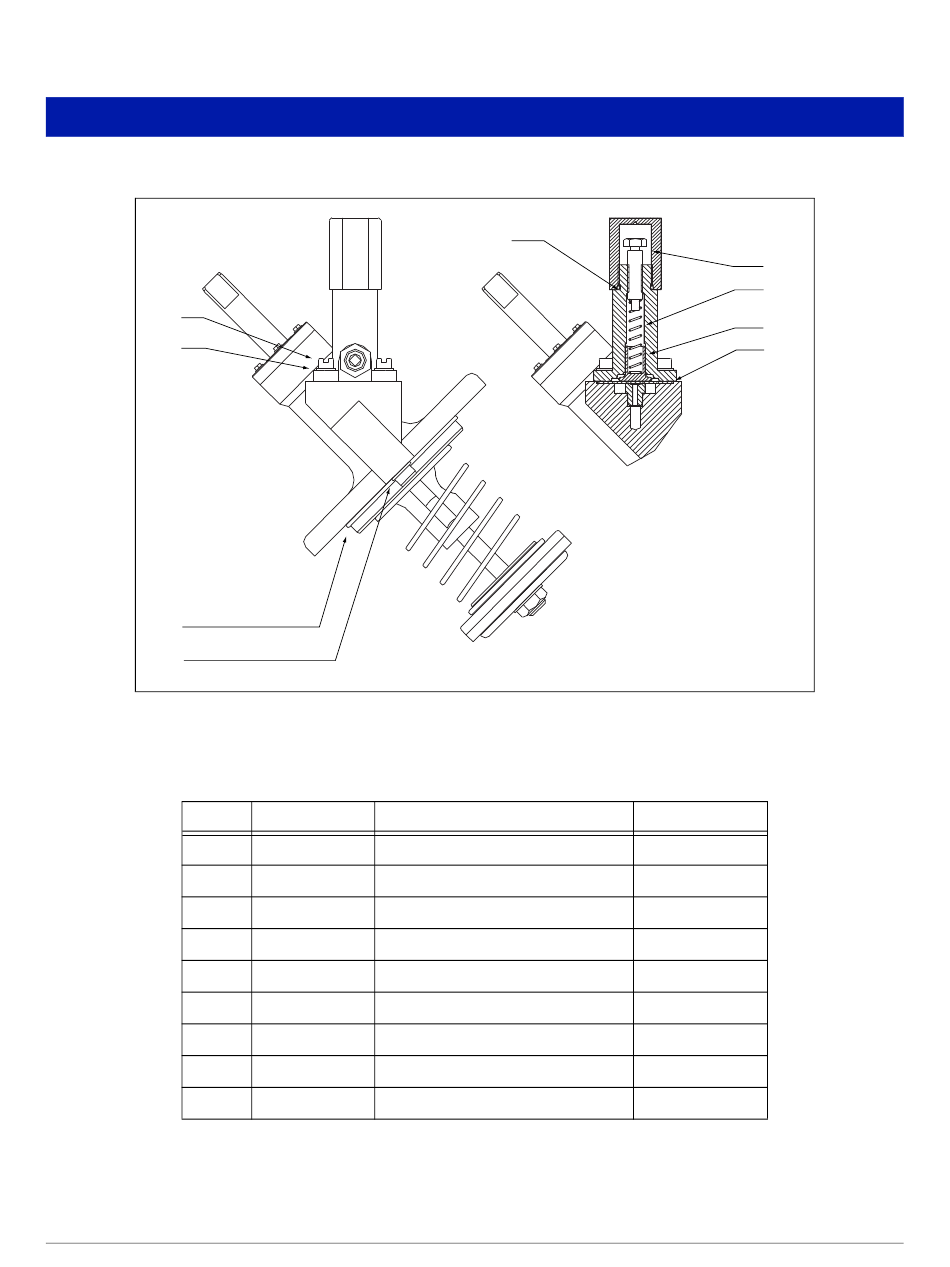

Figure 23. Check Valve And Pressurstat Assembly

Table G.

Part No.
076-447-1 Screw - Adjustment
080-944-1 Spring - Expansion Relief
067-278-1 Plunger
017-573-1 Diaphragm - Expansion Relief
072-642-1 O-Ring (-112)
072-699-1 O-Ring (-240)
026-752-1 Lockwasher
026-748-1 Screw - Hex Socket
072-684-1 O-Ring (-910)
9
Description
36
1
2
3
4
rj/051-301-25.eps
Qty.
1
1
1
1
1
1
4
4
1
