Floating Suction Installation Information; Figure 9 - Veeder-Root Red Jacket Maxxum Big-Flo Quick-Set Series Installation, Operation & Service Manual

6” submersible pump
Table of Contents

Advertisement

Installation

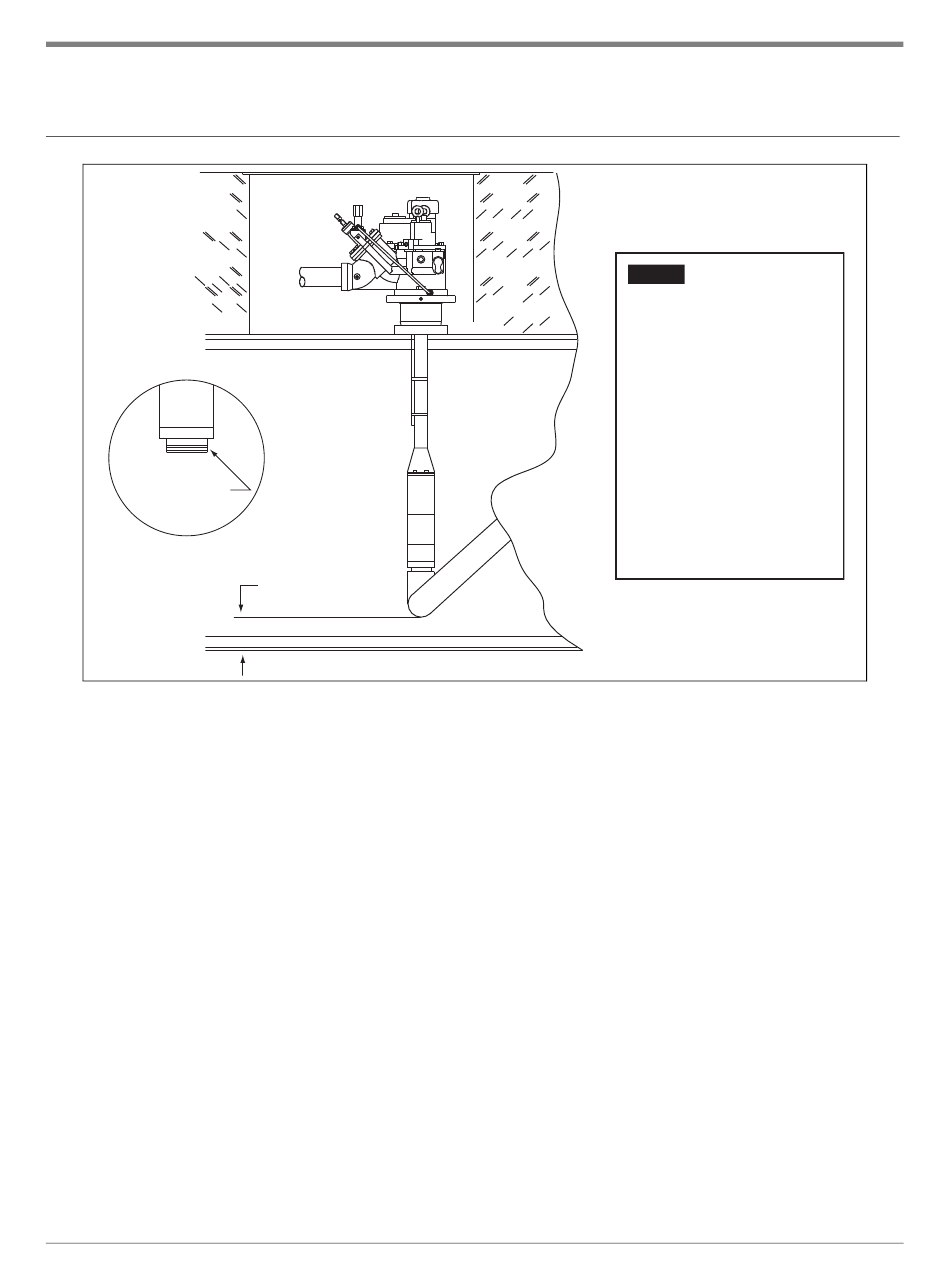

Floating Suction Installation Information

Pump
3" NPT male
thread
4.0" Approx.

Figure 9.

19
Floating Suction Installation Information
rj/051-301-11.eps
NOTICE
1.
Veeder-Root only supplies
the adapter.
2.
Red Jacket pumps are
centrifugal type and as
such are not designed to
pump product when level
is below the bottom of the
pump.
3.
Before installing pipe
threads apply an adequate
amount of fresh, UL
classified for petroleum,
non-setting thread sealant.
