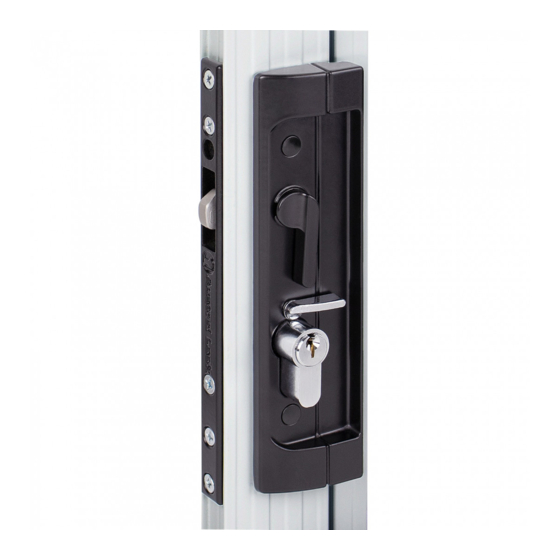

Allegion SD9 Illustrated Fitting Instructions

Allegion SD9 Illustrated Fitting Instructions

For sliding screen doors

Advertisement

Quick Links

for
sliding
Austral
ock

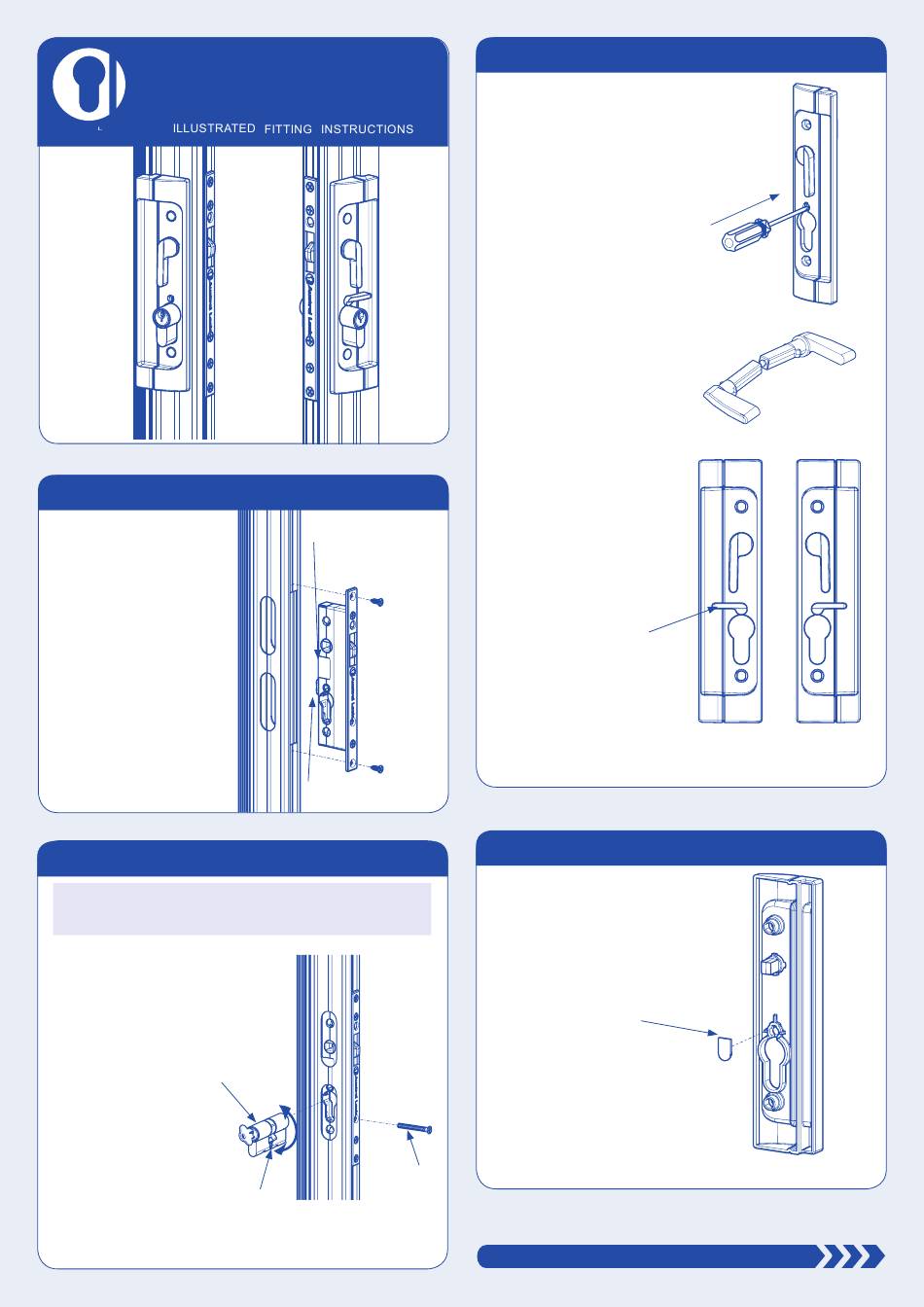

1. LOCKBODY INSTALLATION
● The Sticker on the rear of
the Lockbody is to assist
in easy installation. - Do
not remove.
● If the Sticker has been
broken or removed,
ensure that the Rear
Slide is pushed
completely down
before assembling the
Lockbody into the door
cutout.
● Insert the Lockbody into
the door cutout
● Secure the Lockbody
with the two #8x13mm
Lockbody screws.
2. CYLINDER INSTALLATION
IMPORTANT : If installing with a multipoint accessory kit, be
sure to follow the cylinder installation procedure within the
multipoint kit instructions.
● Assemble the Cylinder
through the lock so the
Cylinder protrudes
equally from both sides.
NOTE : the Cylinder
Cam must rotate as
shown below. (cam turns
towards front of door)
● Insert the Key and turn
Cylinder
to locked position.
● Insert #10 x 38mm
Cylinder Screw &
tighten.
NOTE : test, Main Bolt
should not depress.
● Turn Key to unlocked
position and remove
Key.
SD9
screen
doors
Sticker
Rear Slide
Cylinder
Screw
Cylinder
Cam
Lockbody screv
3. INTERIOR FURNITURE
● Select the Interior Handle
to suit your door, then
punch out the Snib Hole
Cover.
◦ (Place the punch on the
Austral Logo and punch
from the front.)
● Break the Snib Lever pair
in two.
● Install the correct Snib and
Lever as shown.
◦ Hold the Snib vertical
and and insert it into the
Escutcheon. Secure by
rotating the Snib 90 ° to
the position shown.
Lockbody screws.vv
4. EXTERIOR FURNITURE
● Select the Exterior Handle
assembly.
● Fit the Snib Plug in behind
the Austral logo of the
Exterior Escutcheon.
PLEASE TURN OVER
LH escutcheon
RH escutcheon
set up for Interior.
set up for Interior.
LH escutcheon set
up for exterior.
asd9doc01
