4 Handling notes
4.4

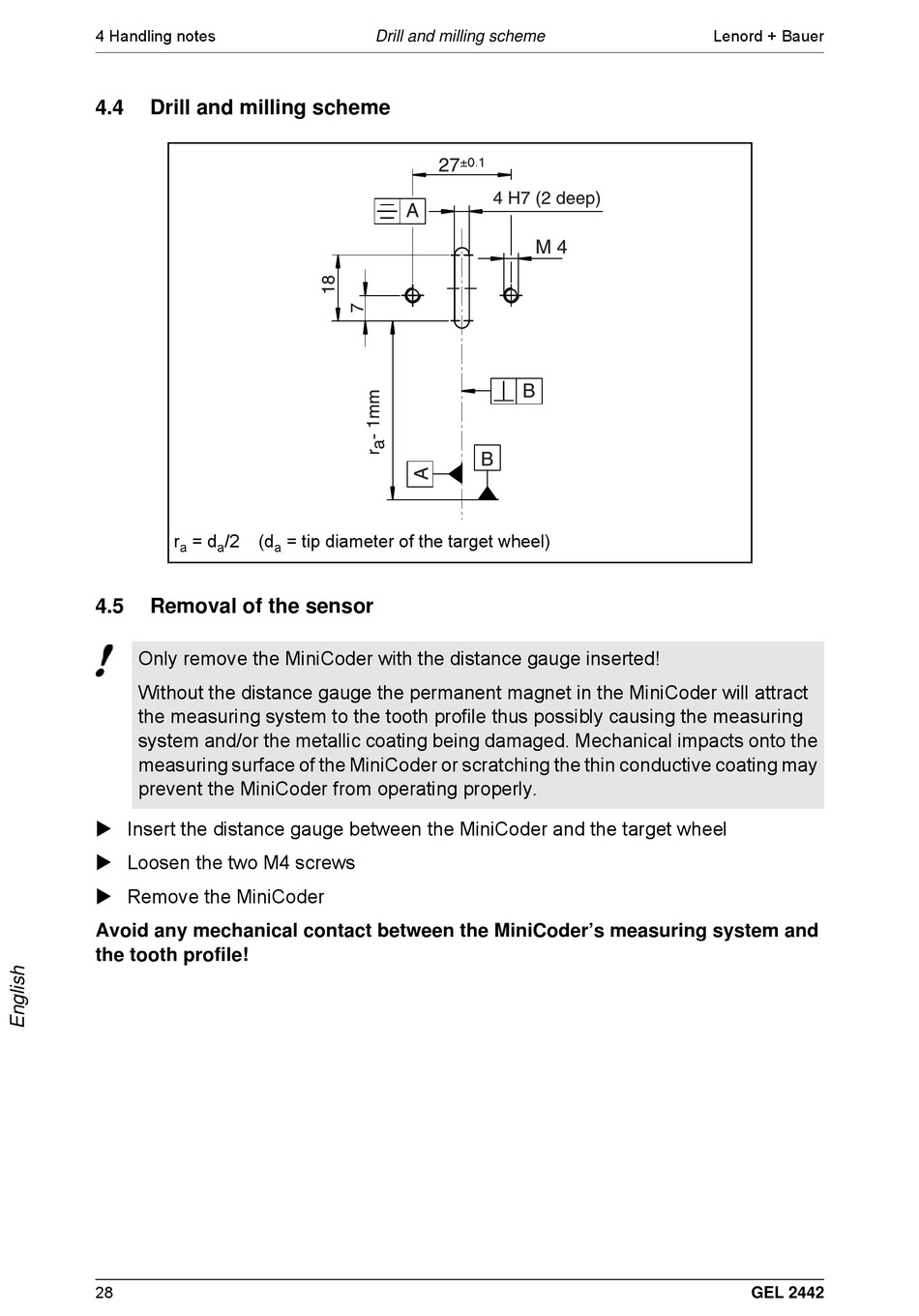

Drill and milling scheme

r
= d
/2
(d
a
a
4.5

Removal of the sensor

Only remove the MiniCoder with the distance gauge inserted!
Without the distance gauge the permanent magnet in the MiniCoder will attract
the measuring system to the tooth profile thus possibly causing the measuring
system and/or the metallic coating being damaged. Mechanical impacts onto the
measuring surface of the MiniCoder or scratching the thin conductive coating may
prevent the MiniCoder from operating properly.
 Insert the distance gauge between the MiniCoder and the target wheel
 Loosen the two M4 screws
 Remove the MiniCoder
Avoid any mechanical contact between the MiniCoder's measuring system and
the tooth profile!
28
Drill and milling scheme
= tip diameter of the target wheel)
a
Lenord + Bauer
GEL 2442
