ADB Signature Series Manual

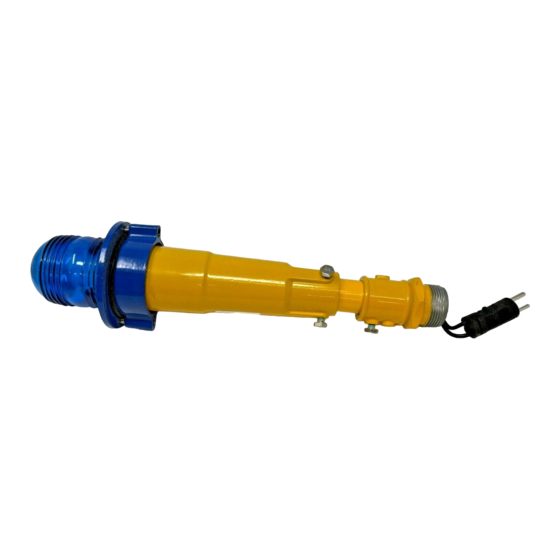

Elevated taxiway edge led (etel) light
Hide thumbs Also See for Signature Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
(Signature Series)
L-861T Elevated Taxiway
Edge LED (ETEL) Light
Document No. 96A0297
Issued: September 3, 2002
Rev. H: May 27, 2010
Patented: Patent No.: US 7,083,315 B2
ETL Certified to FAA Specification
AC 150/5345-46B
ADB Airfield Solutions
Copyright  2003 by ADB Airfield Solutions, LLC. All rights reserved.
Record of Changes

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Signature Series and is the answer not in the manual?

Questions and answers

Related Manuals for ADB Signature Series

Summary of Contents for ADB Signature Series

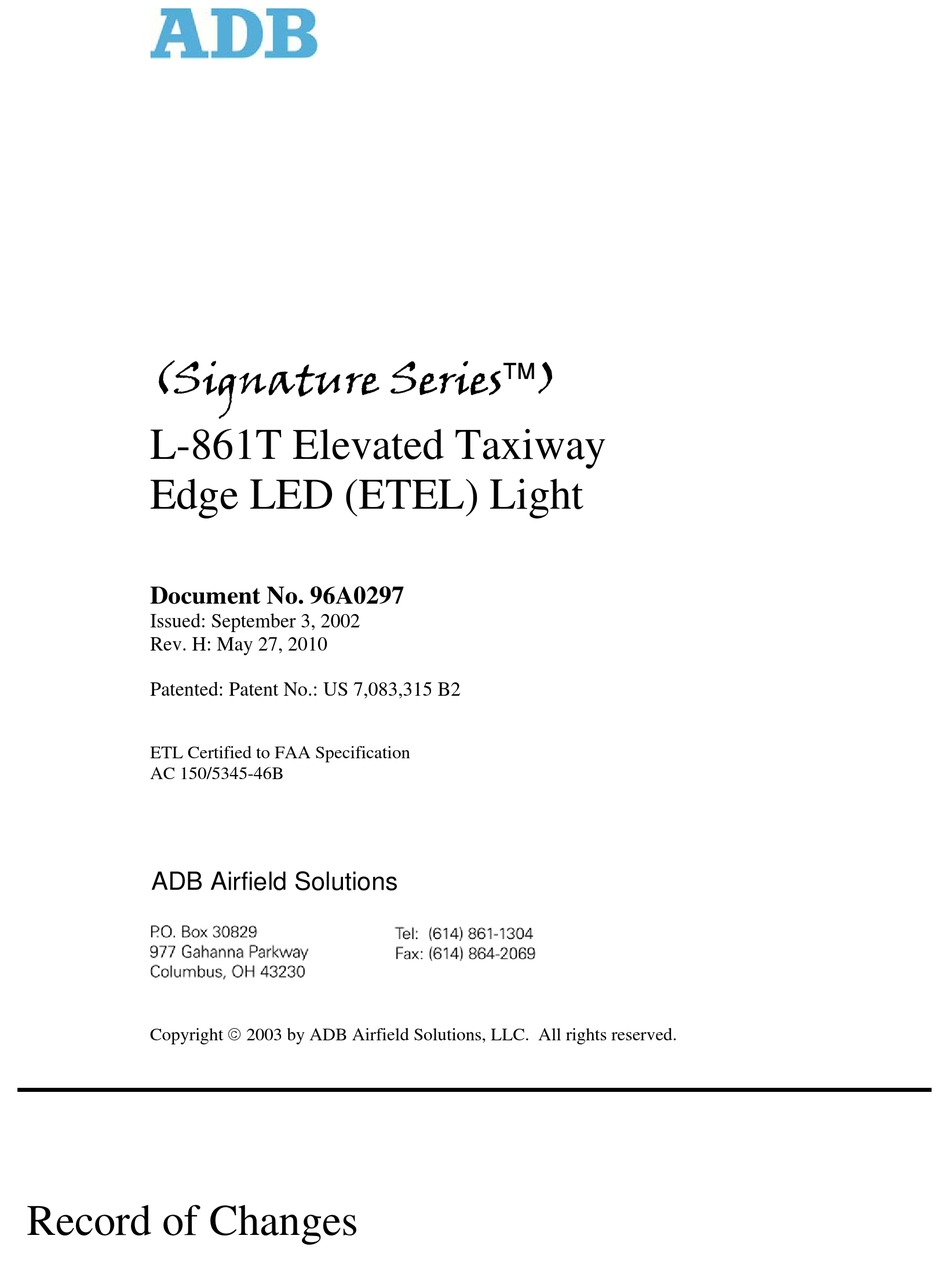

  • Page 1 Document No. 96A0297 Issued: September 3, 2002 Rev. H: May 27, 2010 Patented: Patent No.: US 7,083,315 B2 ETL Certified to FAA Specification AC 150/5345-46B ADB Airfield Solutions Copyright  2003 by ADB Airfield Solutions, LLC. All rights reserved. Record of Changes...

  • Page 2: Record Of Changes

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Record of Changes Page Description EC No. Checked Approved Date Released new manual. 00921 9/3/02 Title page Changed manual number from 96A00297 to 00959 10/7/02 96A0297. 3-5, 3-6 Added a caution statement and changed...

  • Page 3: Table Of Contents

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Table of Contents Table of Contents Record of Changes ..................................ii Table of Contents ..................................iii Warranties ....................................v Section 1 Safety..................1-1 Safety 1. Safety ....................1-1 2. Safety Symbols ..................1-1 3.
  • Page 4 L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Table of Contents Section 6 Repair ..................6-1 Repair 1. Introduction ................... 6-1 2. LED Electronic Module Replacement ..........6-1 3. Replacing Existing Fixture with L-861T LED Fixture ......6-2 Replacing Existing Light Fixture and Transformer ......6-2 Replacing Only Light Fixture ............

  • Page 5: Warranties

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Warranties WARRANTY FOR GOODS AND SERVICES: Seller warrants, to Warranties the extent to which any of the same may be applicable, that (a) on the date of shipment the goods are of the kind and quality described herein...
  • Page 6 This manual could contain technical inaccuracies or typographical errors. Disclaimers ADB Airfield Solutions reserves the right to revise this manual from time to time in the contents thereof without obligation of ADB Airfield Solutions to notify any person of such revision or change.

  • Page 7: Safety

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Safety Section 1 Safety This section contains general safety instructions for using your ADB 1. Safety Airfield Solutions equipment. Some safety instructions may not apply to the equipment in this manual. Task- and equipment-specific warnings are included in other sections of this manual where appropriate.

  • Page 8: Qualified Personnel

    Unintended uses may result from taking the following actions:  making changes to equipment that have not been recommended or described in this manual or using parts that are not genuine ADB Airfield Solutions replacement parts  failing to make sure that auxiliary equipment complies with approval agency requirements, local codes, and all applicable safety standards ...

  • Page 9: Installation

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Safety  using materials or auxiliary equipment that are inappropriate or 4. Intended Use (contd.) incompatible with your ADB Airfield Solutions equipment  allowing unqualified personnel to perform any task Read the installation section of all system component manuals before 5.

  • Page 10: Operation

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Safety Only qualified personnel, physically capable of operating the equipment 6. Operation and with no impairments in their judgment or reaction times, should operate this equipment. Read all system component manuals before operating this equipment. A thorough understanding of system components and their operation will help you operate the system safely and efficiently.
  • Page 11 L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Safety  Connect all disconnected equipment ground cables and wires after 8. Maintenance and Repair servicing equipment. Ground all conductive equipment. (contd.)  Use only approved ADB Airfield Solutions replacement parts. Using unapproved parts or making unapproved modifications to equipment may void agency approvals and create safety hazards.

  • Page 12: Description

    LED light is used to delineate the edges of airport taxiways, holding bays, and aprons. These elevated lights are ETL certified according to FAA specification AC 150/5345-46B, and FAA LED specifications. NOTE: Signature Series is a trademark of ADB Airfield Solutions. Figure 2-1 L-861T Elevated Taxiway Edge Light 1. Optical Column 4.

  • Page 13: L-861T Elevated Light Fixture: Required Equipment

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Description See Figure 2-1. The L-861T elevated light fixtures consist of the following 1. Introduction (contd.) physical elements:   Optical column (1) Column (5)   Locking ring (2) Frangible coupling (6) ...

  • Page 14: Specifications

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Description Table 2-3 Required Equipment Not Supplied 2. L-861T Elevated Light Description Quantity Fixture: Required Torque wrench (0 to 200 inch-pounds) 1 (if Equipment (contd.) required) Loctite number 243 or equivalent...

  • Page 15: Weight

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Description Relative Humidity Up to 100 % Refer to Table 2-5. Weight Table 2-5 Light Fixture Weight Assembled Fixture Fixture Weight 14-Inch overall height 5 lb (2.27 kg) 24-Inch overall height 6.25 lb (2.84 kg)

  • Page 16: Section 3 Installation

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Installation Section 3 Installation WARNING: Allow only qualified personnel to perform the following tasks. Observe and follow the safety instructions in this document and all other related documentation. This section provides instructions for installing the L-861 medium intensity 1.

  • Page 17: Installation

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Installation This subsection provides installation instructions for the L-861T light 4. Installation fixtures. L-861T light fixtures can be mounted on an L-867 base mated with a base Base Mounting plate with a diameter and bolt-hole corresponding to either a 12-inch- (304.8 mm-) diameter L-867B base or a 16-inch-...

  • Page 18: Figure 3-1 Base Mounting

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Installation To install the base, perform the following procedure: Base Mounting (contd.) 1. See Figure 3-1. Install the L-867 base (2) on undisturbed soil. If the soil is unsuitable, remove soil to an adequate depth and replace with compacted acceptable material.
  • Page 19 L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Installation 2. Orient the cable entrance hubs of the base in the proper directions. Base Mounting (contd.) 3. Level the light base so that the mounting flange surface is level with the finished grade.

  • Page 20: Figure 3-2 L-861T Elevated Light Fixture Installation

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Installation 11. Connect the male L-823 plug (Figure 3-1, Item 3) from the light fixture to the female plug on the secondary lead of the isolation transformer by first loosening the frangible coupling hex screw (Figure 3-2, Item 7) until the coupling is free.
  • Page 21 L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Installation 12. Plug the L-823 into the mating isolation transformer secondary lead. Base Mounting (contd.) 13. Loosen the hex screw on the coupling to free the coupling. Handscrew the coupling into the base plate hub. Finish tightening the coupling with a wrench.

  • Page 22: Stake Mounting

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Installation Mount the column light fixtures on 30-inch (762-mm) galvanized steel stakes with Stake Mounting a fitting attached to the top of each stake to receive the male thread of the frangible coupling.

  • Page 23: Figure 3-4 Stake Mounting

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Installation 2. See Figure 3-4. Install the stake (4) in 6-inch- (152.4-mm-) diameter Stake Mounting (contd.) holes in the ground at a depth of 30 inches (762 mm) so that the mounting hub (8) of the stake is level.
  • Page 24 L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Installation 3. Backfill around the stake with compacted earth passing a 1-inch (25.4 Stake Mounting (contd.) mm) sieve. NOTE: Use a bubble level or carpenter’s level to ensure the stake is vertical before backfilling around stake.

  • Page 25: Maintenance

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Maintenance Section 4 Maintenance This section provides maintenance information for the L-861T LED 1. Introduction elevated light. To keep the L-861T light fixtures operating efficiently, follow a preventive 2. Maintenance Schedule maintenance schedule.

  • Page 26: Assembly Instructions

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Maintenance NOTE: The L-861T LED elevated light is assembled at the factory. Use 3. Assembly Instructions the assembly instructions below when you need to assemble parts for repair or maintenance purposes.

  • Page 27: Troubleshooting

    This information covers only the most common problems that you may encounter. If you cannot solve the problem with the information given here, contact your local ADB Airfield Solutions representative for help. Refer below for troubleshooting procedures for the L-861T LED elevated 2.

  • Page 28: Section 6 Repair

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Repair Section 6 Repair WARNING: Allow only qualified personnel to perform the following tasks. Observe and follow the safety instructions in this document and all other related documentation. WARNING: De-energize the circuit and lock out the circuit or regulator so that the circuit cannot be energized by remote means before attempting to service the fixture.

  • Page 29: Replacing Existing Fixture With L-861T Led Fixture

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Repair 6. Cut the nylon wire tie (11) to separate the electronic module. 2. LED Electronic Module Replacement (contd.) 7. Attach the replacement electronic module. Refer to the light fixture assembly procedure in Assembly Instructions in Section 3, Installation.

  • Page 30: Section 7 Parts

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Parts Section 7 Parts To order parts, call ADB Airfield Solutions Customer Service or your local 1. Introduction representative. Use this four-column parts list, and the accompanying illustration, to describe and locate parts correctly.

  • Page 31: L-861T Led Light Fixture Ordering Code

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Parts Figure 7-1 shows the ordering code for an L-861T LED light fixture. 3. L-861T LED Light Fixture Ordering Code ETEL -X X X X Optical Column 0 = Acrylic, clear (Standard)

  • Page 32: L-861T Light Fixture Parts List

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Parts See Figure 7-2. 4. L-861T Light Fixture Parts List Part Number Description Quantity Note 44A6227-50 Electronic module assembly, 50 Hz 44A6227-60 Electronic module assembly, 60 Hz 44A6233-1 Cordset assembly for 14 in. overall height 44A6233-2 Cordset assembly for 24 in.

  • Page 33: Figure 7-2 L-861T Light Fixture

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Parts 4. L-861T Light Fixture Parts List (contd.) Figure 7-2 L-861T Light Fixture  2003 ADB Airfield Solutions, LLC Page 7-4 96A0297H Issued 8/03 All rights reserved...

  • Page 34: L-861T Optional Stake Assembly Parts List

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Parts See Figure 7-5. The optional stake assembly part number is 44B0348. 5. L-861T Optional Stake Assembly Parts List Part Number Description Quantity Note 62B0268-1 Stake hub 64A0176-12 Hex head screw, 3/816 x 3/4 in.

  • Page 35: Optional Parts

    L-861T Elevated Taxiway Edge LED (ETEL) Light (Signature Series) Parts Refer below for optional parts. 6. Optional Parts Part Number Description Quantity Note 1935 12-inch-diameter base plate, 1.512 UNF tap 44B1070 Flag NOTE A: Supplied with gasket. NOTE B: Special order.
