ADB L-810 SBOL User Manual

Steady burning obstruction light single and dual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

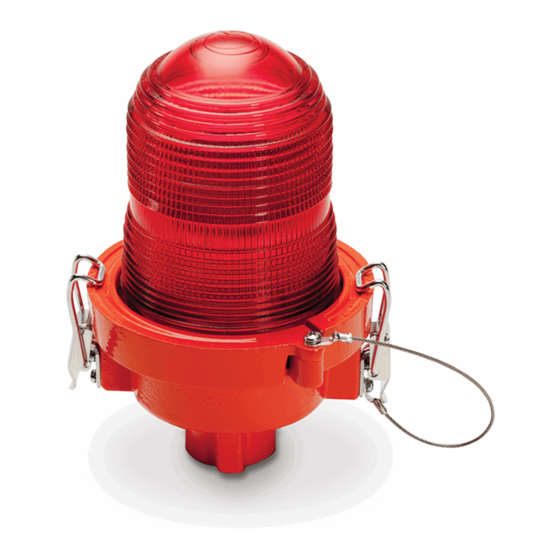

L-810 SBOL - Steady Burning Obstruction Light Single and Dual
User Manual
96A0006, Rev. N, 2018/11/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-810 SBOL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADB L-810 SBOL

Summary of Contents for ADB L-810 SBOL

  • Page 1 L-810 SBOL - Steady Burning Obstruction Light Single and Dual User Manual 96A0006, Rev. N, 2018/11/01...
  • Page 3 Where applicable, per FAA EB67(applicable edition), ADB SAFEGATE L858(L) Airfield Guidance Signs are warranted against electrical defects in design or manufacture of the LED or LED specific circuitry for a period of 4 years. ADB SAFEGATE LED light fixtures (with the exception of obstruction lighting) are warranted against mechanical and physical defects in design or manufacture for a period of 12 months from date of installation;...
  • Page 4 ADB SAFEGATE’s liability under no circumstances will exceed the contract price of goods claimed to be defective. Any returns under this guarantee are to be on a transportation charges prepaid basis. For products not manufactured by, but sold by ADB SAFEGATE, warranty is limited to that extended by the original manufacturer.

  • Page 5: Table Of Contents

    7.2.3 Dual L-810 Obstruction Light (With Lamp-out Relay)........................22 7.2.4 Dual-with-Relay L-810 Wiring Schematic............................23 A.0 SUPPORT..25 A.1 ADB Safegate website......................................25 A.2 Recycling............................................26 A.2.1 Local authority recycling...................................26 A.2.2 ADB Safegate recycling..................................... 26 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 6 L-810 SBOL - Steady Burning Obstruction Light Single and Dual TABLE OF CONTENTS Copyright ADB Safegate, All Rights Reserved ©...

  • Page 7: Safety

    1.0 Safety Introduction to Safety This section contains general safety instructions for installing and using ADB SAFEGATE equipment. Some safety instructions may not apply to the equipment in this manual. Task- and equipment-specific warnings are included in other sections of this manual where appropriate.

  • Page 8: Introduction To Safety

    L-810 SBOL - Steady Burning Obstruction Light Single and Dual Safety 1.1.1 Introduction to Safety CAUTION Unsafe Equipment Use This equipment may contain electrostatic devices, hazardous voltages and sharp edges on components • Read installation instructions in their entirety before starting installation.

  • Page 9: Material Handling Precautions: Storage

    The tip of the soldering iron must be grounded. • Electronic modules and components must be stored and transported in conductive packing. Failure to follow this instruction can result in equipment damage 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 10 L-810 SBOL - Steady Burning Obstruction Light Single and Dual Safety Copyright ADB Safegate, All Rights Reserved ©...

  • Page 11: L-810 Sbol

    Carry Out Troubleshooting on the SBOL. 2.1.1 How to work with the manual 1. Familiarize yourself with the structure and content. 2. Carry out the actions completely and in the given sequence. 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 12 L-810 SBOL - Steady Burning Obstruction Light Single and Dual L-810 SBOL Copyright ADB Safegate, All Rights Reserved ©...

  • Page 13: Introduction

    Both single and dual units are available for use with either 120 VAC parallel or 6.6 A series lighting circuits Operating Conditions Temperature: -67 °F to +131 °F (-55 °C to + 55 °C) Humidity: 0 to 100% Wind speeds: Up to 150 mph (240 kph) 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 14 L-810 SBOL - Steady Burning Obstruction Light Single and Dual Introduction Construction Lamp-Out Relay Operation 120 VAC input power to the dual L-810 fixture energizes a relay and the normally operating lamp #1. If lamp #1 fails, the relay is de-energized causing the 120 VAC to be switched to the backup lamp #2. At the same time, 120 VAC power is also switched to the alarm terminal, which can be used to activate a user-supplied alarm.

  • Page 15: Options

    3.2.2 Alarm Terminal An optional alarm terminal is provided on units with lamp-out relay that can activate a customer-supplied alarm in case of lamp failure. 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...

  • Page 16: L-810 Obstruction Light: Required Equipment

    L-810 SBOL - Steady Burning Obstruction Light Single and Dual Introduction 3.3 L-810 Obstruction Light: Required Equipment Refer to Table 1 for required equipment that is supplied. Refer to Table 2 for required equipment that is not supplied. Refer to the “Parts”...

  • Page 17: Specifications

    120 VAC to be switched to the backup lamp #2. At the same time, 120 VAC power is also switched to the alarm terminal, which can be used to activate a user-supplied alarm. 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 18 L-810 SBOL - Steady Burning Obstruction Light Single and Dual Specifications Copyright ADB Safegate, All Rights Reserved ©...

  • Page 19: Installation

    Refer to FAA Advisory Circular 70/7460-1 for more specific information regarding placement of obstruction lights on locations such as poles, towers, buildings, and smokestacks. 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...

  • Page 20: Single L-810 (6.6A Or 120 Vac) Wiring Procedure

    L-810 SBOL - Steady Burning Obstruction Light Single and Dual Installation 5.2.2 Single L-810 (6.6A or 120 Vac) Wiring Procedure To connect the wiring for a single L-810 (6.6A or 120 Vac), perform the following procedure: 1. Disassemble the L-810 light assembly by removing the lens clamps, lens, and lamp socket.

  • Page 21: Dual L-810 (120 Vac) Wiring Procedure (Without Lamp-Out Relay)

    Before connecting wires to the terminal block, add wire grommets for strain relief. 4. Connect alarm leads to TB1 pin 5 and pin 1. 5. Reassemble the L-810 light fixture and install two 69-watt lamps. 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 22 L-810 SBOL - Steady Burning Obstruction Light Single and Dual Installation CAUTION Take up the wire slack as needed. Do not put tension on the wires. Figure 2: Dual-with-Relay L-810 Wiring Copyright ADB Safegate, All Rights Reserved ©...

  • Page 23: Maintenance

    Clean the contact surfaces of the electrical disconnect. Table 6: Lamp Replacement Schedule If you have the following Replace lamp after... lamp wattage... 750 hours 6000 hours 6000 hours 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 24 L-810 SBOL - Steady Burning Obstruction Light Single and Dual Maintenance Copyright ADB Safegate, All Rights Reserved ©...

  • Page 25: Parts

    7.0 Parts To order parts, call ADB Safegate Customer Service Center or your local representative. Use the accompanying illustrations, part number callouts and descriptions to identify and order parts correctly. 7.1 Spare Components Description Part No. Gasket 63B0015-1 Lamp, 45 W/6.6 A...

  • Page 26: L-810 Obstruction Light Parts List

    L-810 SBOL - Steady Burning Obstruction Light Single and Dual Parts 7.2 L-810 Obstruction Light Parts List This subsection describes the parts for the single and dual L-810 obstruction light, and the dual L-810 obstruction light with lamp-out relay. 7.2.1 Single L-810 Obstruction Light...

  • Page 27: Dual L-810 Obstruction Light (Without Lamp-Out Relay)

    64A0191/20 8-32 X 1 1/4 PAN HD PHIL 64A0198/6 6-32 X 3/8 PAN HD PHIL 66A0026/11 #6 SPLIT LOCKWASHER 66A0026/15 #8 SPLIT LOCKWASHER 70A0056 TERM RING 16-12AWG #8 NOINSUL 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...

  • Page 28: Dual L-810 Obstruction Light (With Lamp-Out Relay)

    L-810 SBOL - Steady Burning Obstruction Light Single and Dual Parts 7.2.3 Dual L-810 Obstruction Light (With Lamp-out Relay) Figure 5: Dual L-810 Obstruction Light (With Lamp-out Relay) GENERAL ASSEMBLY BILL OF MATERIAL ITEM NO. PART NUMBER PART NAME/DESCRIPTION UNITS QTY.

  • Page 29: Dual-With-Relay L-810 Wiring Schematic

    TB-KI T 94A0457 TERM BLK & WIRE KIT 7.2.4 Dual-with-Relay L-810 Wiring Schematic Figure 6 shows the wiring schematic for the dual-with-relay L-810. Figure 6: Dual-with-Relay L-810 Wiring Schematic 96A0006, Rev. N, 2018/11/01 Copyright ADB Safegate, All Rights Reserved ©...
  • Page 30 L-810 SBOL - Steady Burning Obstruction Light Single and Dual Parts Copyright ADB Safegate, All Rights Reserved ©...

  • Page 31: Support

    Table 7: ADB Safegate Support Live Technical Support - Americas If at any time you have a question or concern about your product, just contact ADB’s technical service department. Trained in all areas of system issues, troubleshooting, quality control and technical assistance, our highly experienced Technical support specialists are available 24 hours a day, seven days a week to provide assistance over the phone.

  • Page 32: Recycling

    A.2.1 Local authority recycling The disposal of ADB Safegate products is to be made at an applicable collection point for the recycling of electrical and electronic equipment. The correct disposal of equipment prevents any potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling.
  • Page 33 Tel.: +46 (0)40 699 17 00, Internet: www.adbsafegate.com Fax: +46 (0)40 699 17 30 ADB Safegate Airfield Technologies Ltd. China ADB Safegate, China Address: Unit 603, D Block, CAMIC International Convention Center, No 3, Hua Jia Di East road, ChaoYang district, Beijing 100102, P.R.
