Lovato T-FIRE MODUL Assembling Instructions And Maintenance page 32

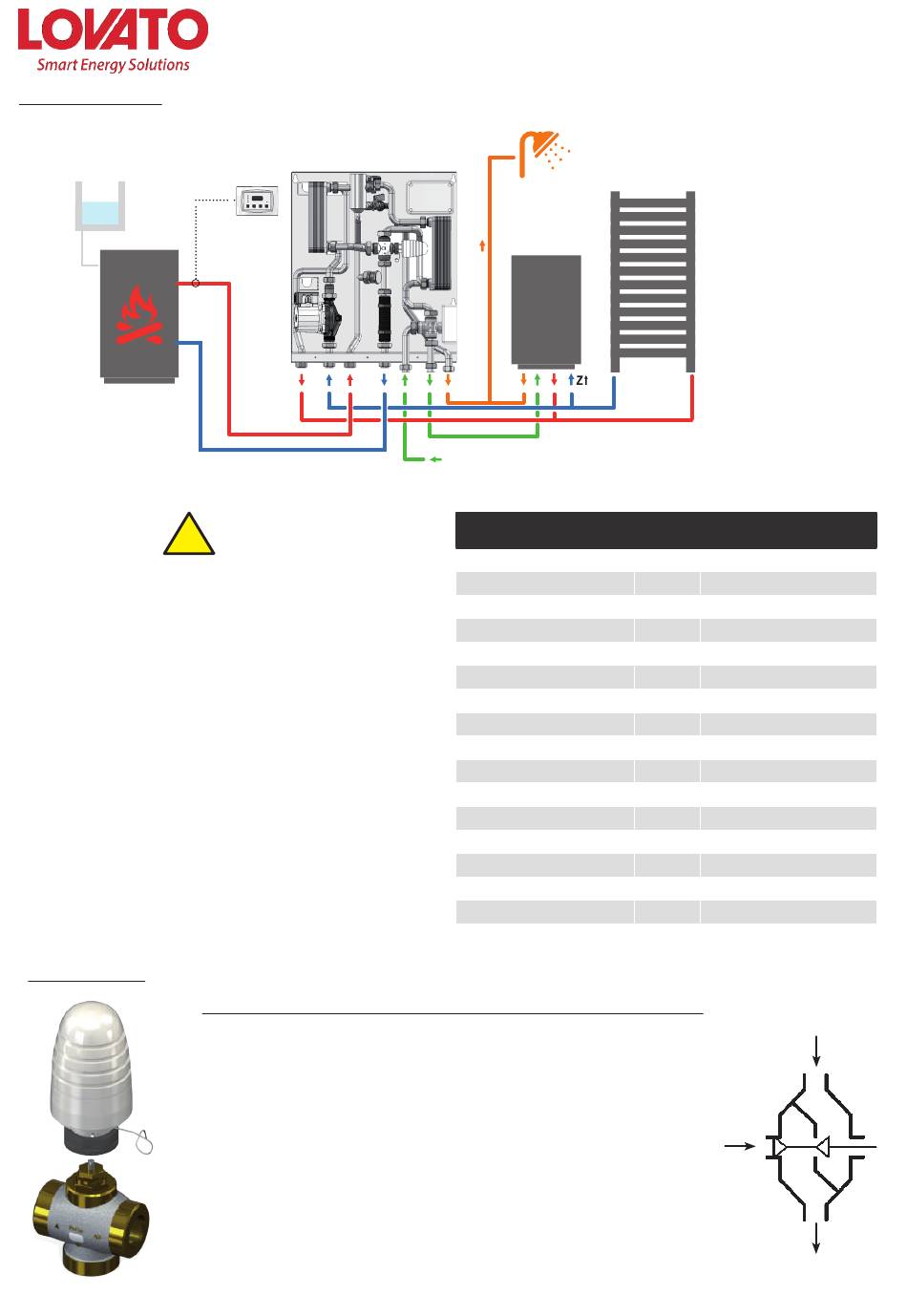

ExAMPLE OF APPLICATION
Boiler - Fireplace stove
!
IMPORTANT
In presence of water with hardness above 25 ÷ 30 ° Fr, is prescribed an
appropriate treatment of the heating water, in order to avoid limescale
problems. It should
be noted that even a small quantity of limescale, could reduce the per-
formances of the domestic side.
The materials of construction are in compliance with the Directive 98/83
EC.
Despite the fittings are mounted at the factory, it is advisable to monitor
all screw connections. Equally important is to do a pressure test during
the operation.
Exceeding above listed limits may cause damages to module and impair
warranty terms consequently
Components description
T-FIRE MODUL
Controller
PRIMARY RETURN 3-PORT PROPORTIONAL MIxING VALVE (ONLY WITH DHW PRODUCTION KIT)
Function: the mixing valve is thermostatically controlled through a bulb connected on the DHW
outlet pipe. In function of the demand of DHW, the valve will increase/decrease the opening.
The temperature is adjustable from 40 to 70°C. The expansion of the liquid inside the bulb deter-
mine the functioning of the valve. Connection M30x1,5
3-port valve with body in brass – No. 3 threaded male connections G1" with flat seat. Stroke of
the shutter 3,7 mm.
With the valve's stem in lower position the port A is closed, with the valve's stem in high position
the port B is closed.
Kvs: 5,0
Max working temperature: 120 °C
Max operating pressure: 16 bar
Assembling instrunctions and maintenance
DHW outlet
User (heating circuit)
Caldaia a gas
DCW inlet
DESCRIPTION
PH
Saturation factor(delta PH))
Total hardness
Conductivity
Sediments
Clorine
Hydrogen sulphide
Ammonia
Hydrogen carbonate
Hydrogen carbonate / sulphide
Sulphide
Nitrate
Nitrite
Sulphate
Manganese
Free iron
Free carbon dioxide
LIMIT VALUES FOR COPPER SOL-
UNIT
DERED HEAT EXCHANGER
pH 7-9 (including saturation factor)
pH -0.2<0<+0.2
°Fr 15-30
µS/cm 10...500
mg/l <30
mg/l <0.5
mg/l <0.05
mg/l <2
mg/l <300
mg/l >1.0
mg/l <1
mg/l <100
mg/l <0.1
mg/l <100
mg/l <0.1
mg/l <0.2
mg/l <20
A
B
AB
