Electric Connection - Lovato T-FIRE MODUL Assembling Instructions And Maintenance

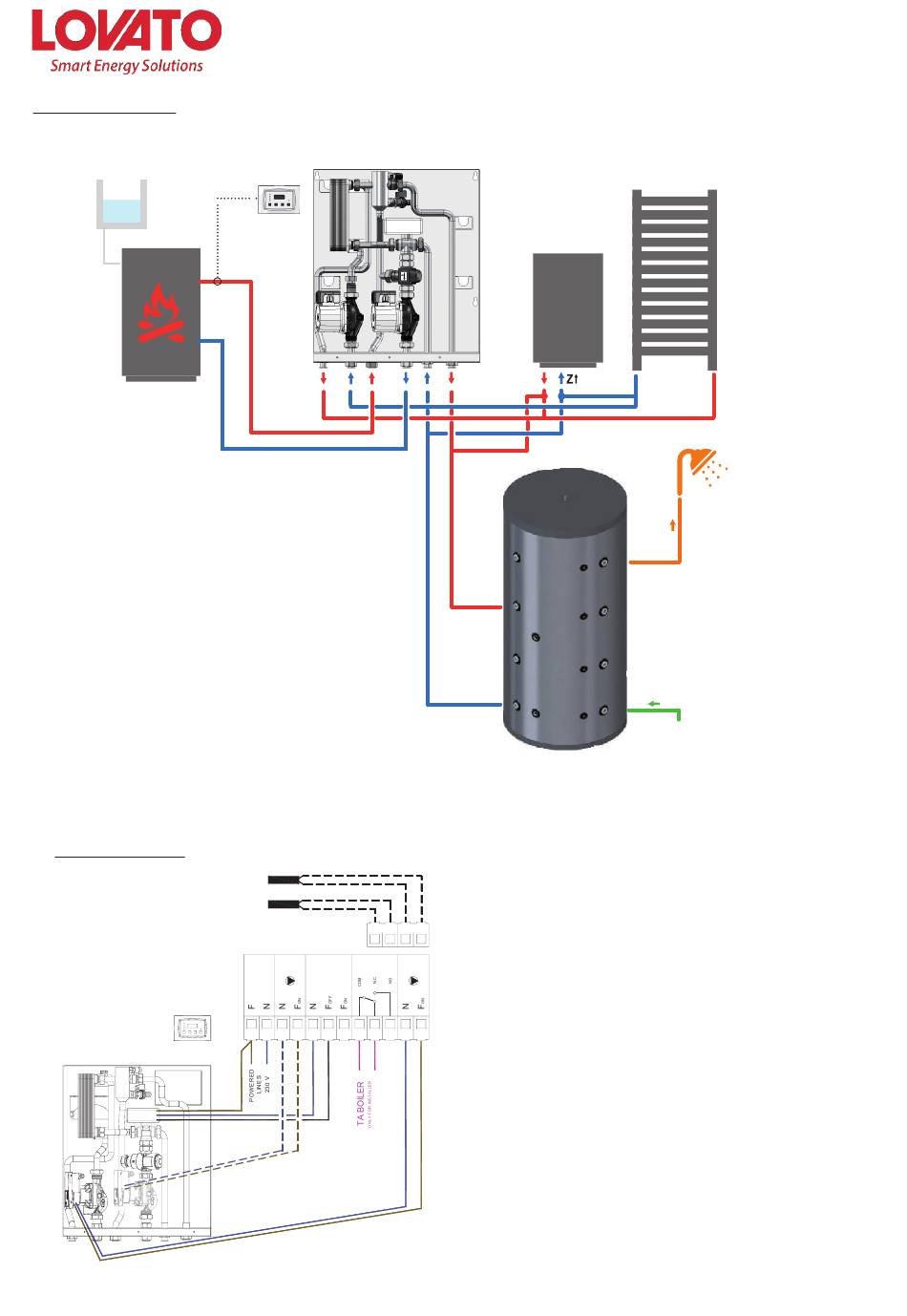

ExAMPLE OF APPLICATION
Boiler - fireplace stove

ELECTRIC CONNECTION

STORAGE TANK PROBE
FLOW SENSOR
Fireplace stove
VALV
P 2 P 1
T-FIRE MODUL
Controller
S1 S2
LINE P 1 VALVE AUX P 2
230 Vac 230 Vac 230 Vac Cons. Cald 230 Vac
1 2 3 4 5 6 7 8 9 10 11 12
Assembling instrunctions and maintenance
User (heating circuit)
Boiler
DHW outlet
Rete AFS
