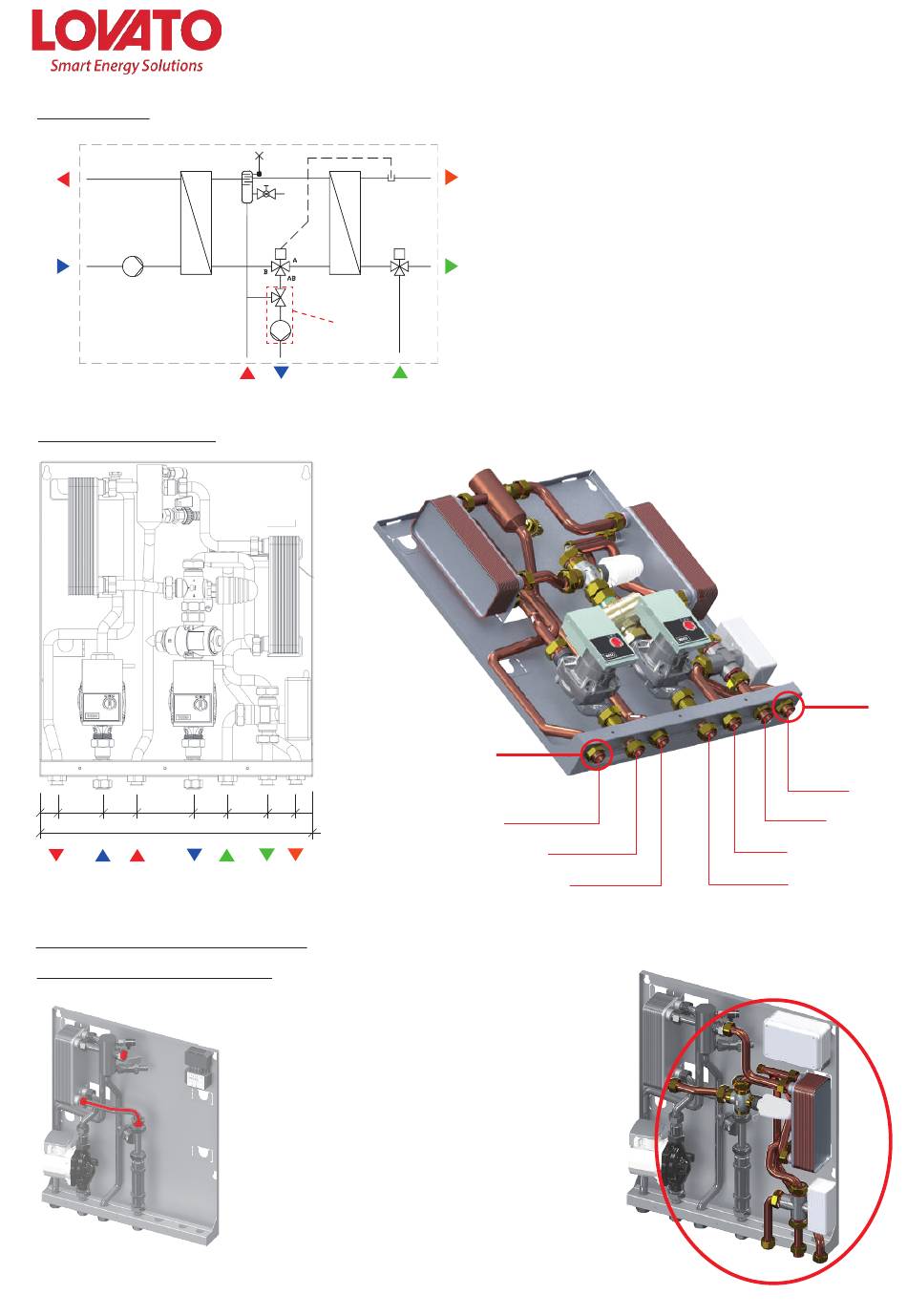

HYDRAULIC SCHEME
MI
3
RI
1

DIMENSIONS AND CONNECTIONS

30 80 60 100 60
480
RI IP UP
MI
¾" F ¾" F ¾" F ¾" F ¾" F
Accessories installation (Only for separately supply)
T-FIRE MODUL with kit "S" DHW PRODUCTION
2
1
1
5
4
8
6
7
Accessories
2
IP UP
70 50 30
EAFS UAFS UACS
¾" F ¾" F
a - Shut off the ball valves of the T-Fire (separately supplied)
b - Unscrew the caps ref.1 as shown in the picture and remove the
pipe
c - Remove the tap ref.2
d - Connect the kit "B" (ref.3) for DHW tank with the washers and
screw the nuts
e - Controllare la tenuta idraulica del modulo.
f - Connect the servomotor of the diverter valve to the terminal
board of the module (see chapter – electric connections) e re
golare set the thermostatic valve up for the control of DHW
g - Switch on the module
h - Check the correct functioning of the module
Assembling instrunctions and maintenance
UACS
1
2
3
4
UAFS
5
6
7
8
EAFS
F 3/4"
Heating supply
Heating return
Heating circulation pump;
Primary circuit pump;
Brazed plate iron steel heat exchanger (primary circuit);
Degasser / dirty separator system with drain tap and manual air
vent valve;
Brazed plate iron steel heat exchanger (DHW circuit);
3-port diverting proportional valve with thermostatic actuator;
Anticondensation valve;
3-port motorized diverting valve with actuator
Primary return
Primary supply
F 3/4"
DHW outlet
DCW outlet
DCW inlet
3
31
