Current Orbit Marine IC PRO LED Safety Instructions page 4

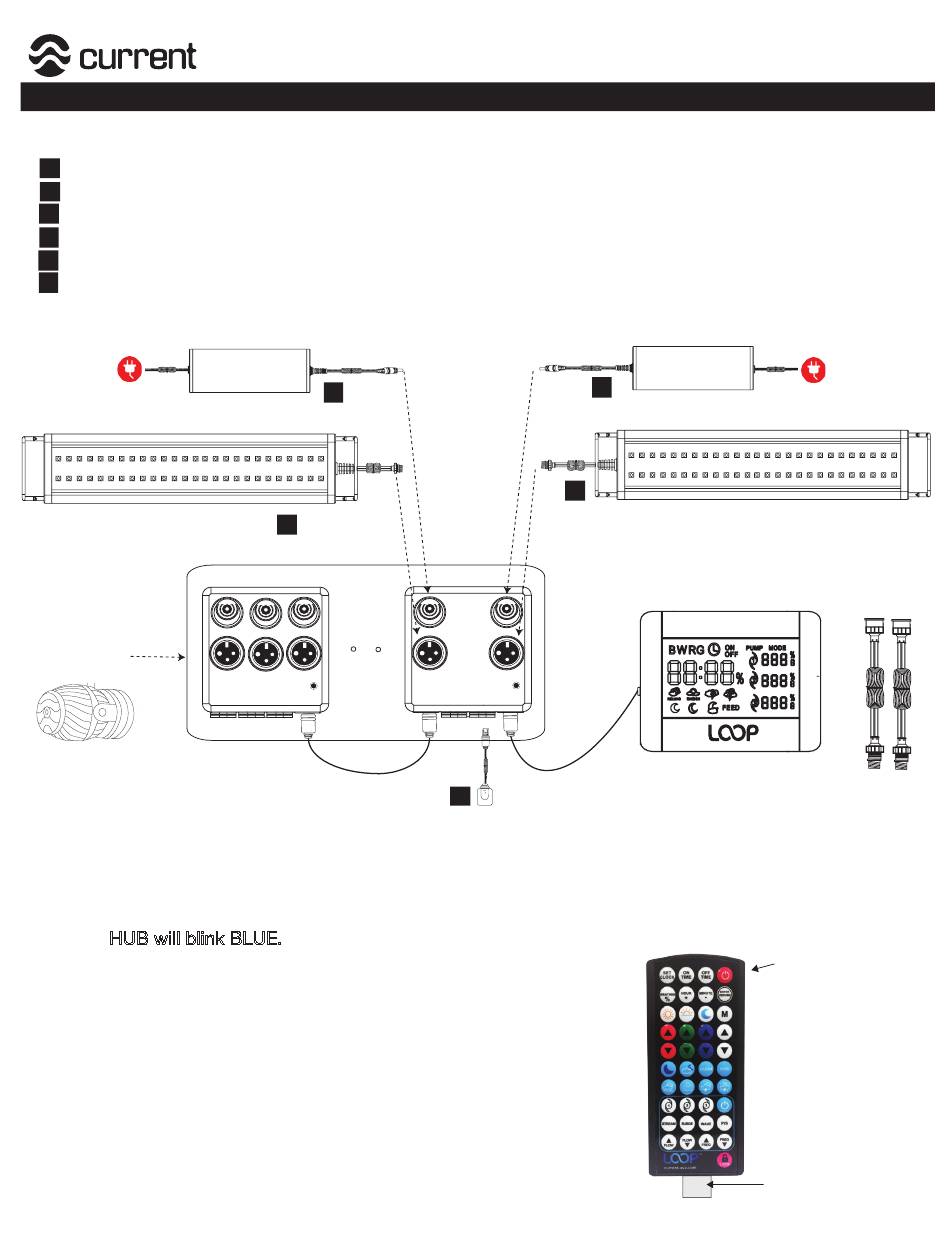

Cable Connections
Step 8. Connect cables in the following order:
A
a. Connect LOOP
®
b. Connect IR Sensor micro USB cable into Port#2 on bottom of IC Light Manifold HUB (optional)*
B
c. Connect Orbit Marine IC PRO LED light #1 into L1 Light Connection on front of IC Light Manifold HUB**
C
d. Connect 12V DC transformer cable into L1 Light Power DC input on front of IC Light Manifold HUB
D
c. Connect Orbit Marine IC PRO LED light #2 into L2 Light Connection on front of IC Light Manifold HUB**
E
d. Connect 12V DC transformer cable into L2 Light Power DC input on front of IC Light Manifold HUB
F
AC Power
GFCI Outlet
Orbit Marine IC PRO LED Light #2
Connect up to 3 eFlux
Accessory Wave Pumps
(sold separately)
#6004 eFlux Accessory Wave Pump 660 gph
#6005 eFlux Accessory Wave Pump 1050 gph
#6006 eFlux Accessory Wave Pump 2100 gph
* NOTE: The LOOP Controller has an integrated IR sensor on the front display. If mounting the controller outside your cabinet, the optional IR
IR Infrared Sensor B is not required. If the the LOOP
**If additional lighting cable is needed, 2 Extension cables (J) are included.
Step 9. Plug 12V DC transformers into GFCI outlet. Communication LED indicator light on IC light manifold
Step 10. Use velcro cable wraps (L) to safely store excess cables.
Step 11. Remove clear plastic tab from battery compartment
on Orbit Marine IC PRO remote control (H).
Step 12. Press Main Power key to turn Orbit Marine IC PRO light ON.
Step 13. Follow programming steps on the following pages to
set the LOOP
Controller microUSB cable into Port#1 on bottom of IC Light Manifold HUB
12VDC Transformers will
have black O-ring on cord
12VDC
Transformer
F
E
Wave Pump HUB
®
IC Controller clock and begin operation.
®
Orbit Marine IC PRO LED Light
L2 L1
IC LIGHT HUB
Optional Remote
B
IR Infrared Sensor
controller is mounted inside the cabinet, the IR sensor can be mounted outside the stand.
Page 4
TM
12VDC
Transformer
D
C
Orbit Marine IC PRO LED Light #1
L2
AC Power
GFCI Outlet
Optional Extention
Cables (J)
Main Power
Remove Battery Tab
