LOOP IC Controller Programming
®
eFlux Wave Pump Programming
Designating Wave Pumps for Programming
Press the wave pump key
are choosing to program, the designated pump icon on the LOOP
will flash and show its current flow program.

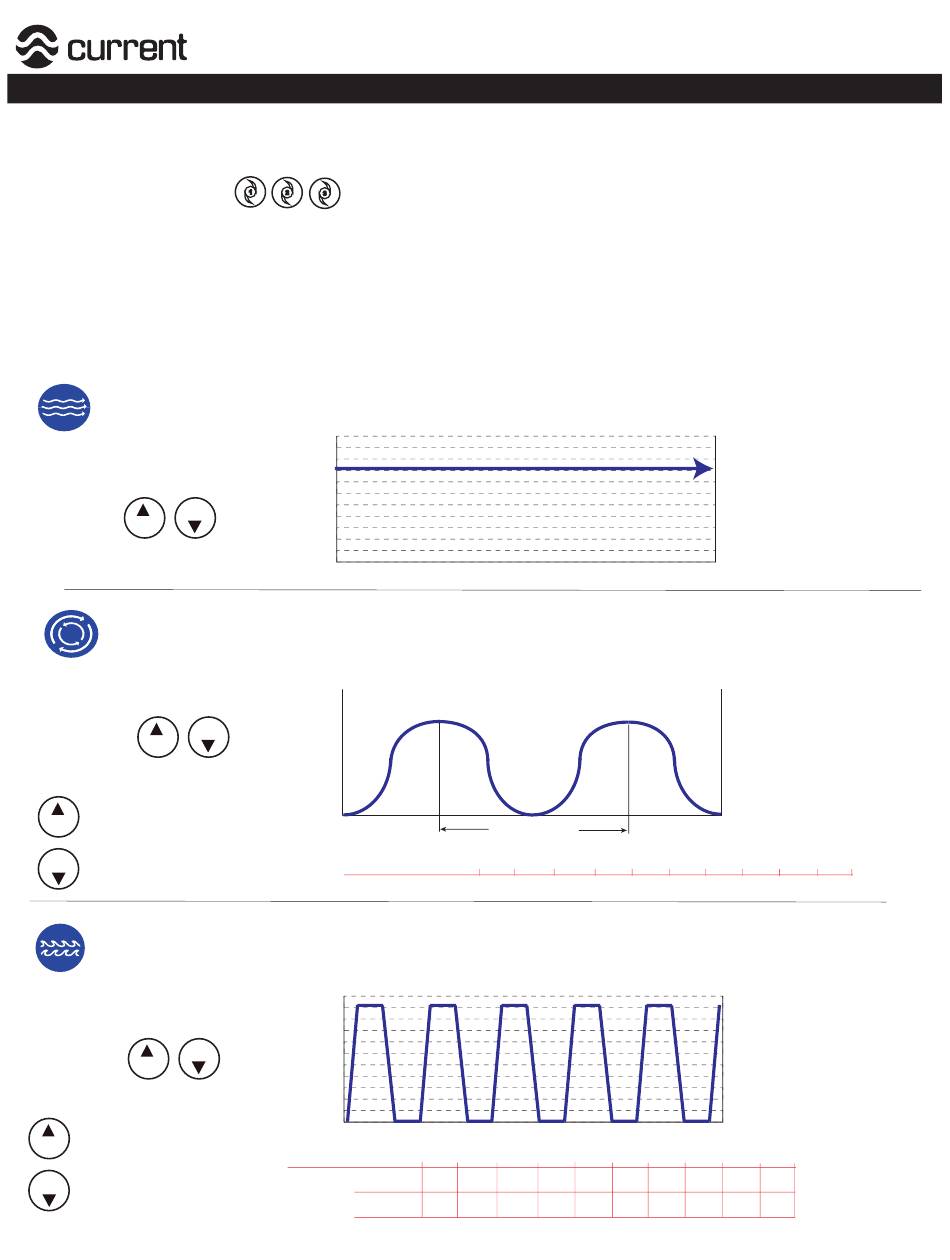

Operational Flow Modes
There are three modes of water flow available for Pumps 1 and 2; Stream/Steady, Surge/Gyre and
Wave/Pulse. Note that Pump 3 is designated as a circulation pump and can only be programmed in
Stream/Steady Flow Mode.
STREAM/STEADY MODE
Flow rate is adjustable from
0-100% in 10% increments by
pressing:
FLOW
FLOW
SURGE MODE
Flow rate is adjustable from
0-100% in 10% increments by
pressing:
FLOW
Frequency (timer duration) is adjustable:
Press to DECREASE time duration
FREQ
of pulse and INCREASE wave motion
Press to INCREASE time duration
FREQ
of pulse and DECREASE wave motion
WAVE/PULSE MODE
Flow rate is adjustable from
0-100% in 10% increments by
pressing:
FLOW
FLOW
Frequency (timer duration) is adjustable:
Press to DECREASE time duration
FREQ
of pulse and INCREASE wave motion
Press to INCREASE time duration
FREQ
of pulse and DECREASE wave motion
on the wireless remote you
0
1
2
When a pump is in Stream/Steady mode, the pump will constantly circulate
water at the programmed speed.
100%
Flow
50%
0
When a pump is in Surge/Gyre mode, the pump will gently ramp up and down
to the maximum flow speed based on the frequency (time) programmed. This
mode mimics back and forth water surges found in the ocean. See GYRE for
using 2 pumps and creating Gyre flow.
100%
FLOW
FLOW
50%
0
FREQUENCY (seconds)
When a pump is in Wave/Pulse mode, the pump will turn on/off, creating a
pulsing between the maximum flow and off. This flow simulates waves
commonly found on reef crests.
100%
Flow
50%
0
FREQUENCY (seconds)
Pump ON
Pump OFF
Orbit Marine IC PRO LED Light
TM
IC Controller
®
TIME
MAX FLOW
OFF
FREQUENCY
10s 15s 20s 25s 30s 40s 50s 70s 80s 90s
Max FLOW
ON
OFF
TIME
.7s 1s 2s 3s
.3s .5s
1s
.3s .5s .7s 2s
.3s .5s .7s
1s 2s
Page 10
ON
4s 5s 6s 7s
3s 5s 6s 7s
4s
3s 4s 5s 6s 7s
