Swing-N-Slide Olympus WS 5031 Instructions

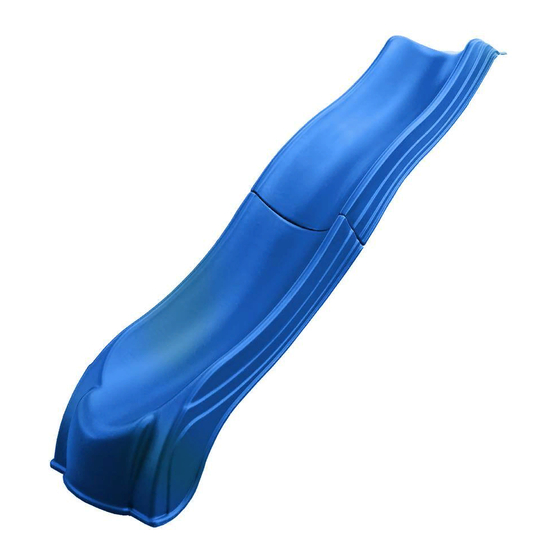

Olympus Wave Slide Instructions
Fits 60" (152,4 cm) Deck Height
KIT INCLUDES:
Not Included In Kit:
17" (43,1 cm)
Cut
1-3/4"
(4,4 cm)
x1
1-3/4" (4,4 cm)
Tools Required:
Phillips Bit
1/8" & 1/4" Drill Bits
ASSEMBLY STEPS
1. Align slide sections and the backing plates together on
the ground (Fig. 1). Begin attaching two slide sections
together by securing the bolts in place fi nger tight (see
Fig. 2 for proper Bolt Sequence). Following this pattern
install (1) bolt, (2) washers and (1) lock-nut per hole
(see Fig. 1).
Once all (11) bolts, (22) fl at washers and (11) lock-nuts
are in place go back and tighten all hardware with
appropriate tools.
IMPORTANT: Tighten securely so backing plates
and slide sections are tight against each other AND
there are a minimum of one to two threads extending
beyond each lock-nut.
4
10
11
2
Weight Limit: 250 lbs
For children 2-10 years of age
Specifi cations subject to change without notice.
Manufactured for: Swing-N-Slide® • 1212 Barberry Drive • Janesville, Wisconsin 53545 • USA • 1-800-888-1232 • www.swing-n-slide.com
Made in USA • Printed in USA
Stake
2" x 4" x 17" (5,1 x 10,2 x 43,1 cm)
Use Pressure-Treated Wood
Tape Measure
Electric Drill
8
9
7
Backing Plates
Fig. 2
WARNING: Assembly by adult.
AVERTISSEMENT: L'assemblage dolt être exécuté par un adulte.
ADVERTENCIA: El ensamblaje lo debe hacer un adulto.
WARNING: ASSEMBLY BY ADULT.
WARNING: ASSEMBLY BY ADULT
x11
x11
x22
Deck Screw
x2
1-1/4"
(3,2 cm)
Screw size should be a #8 thread size
minimum and coated for use
with treated wood.
Hammer
Backing Plates
(11) 5/16" (7,8 mm) Lock-nut
6
3
5
1
1
WS 5032, WS 5033
FOR PRIVATE USE ONLY
DO NOT USE IN PUBLIC SETTNGS!
Hex Bolt
1/2"
(12,7 mm)
Screw must be to sizes shown at a
minimum. Do not use a screw size
shorter than 1-1/4" (3,2 cm) long.
Circular Saw
(22) 5/16" (7,8 mm)
Flat Washers
(11) 5/16" x 1"
(7,8 mm x 19 mm)
Hex Head Bolt
Tighten nut until washers are tight against backing plates.
LDR 03-08-2019
WS 5031,
x2
Truss Screw
x4
1/4"
1-1/4"
(6 mm)
(3,2 cm)
Socket Wrench set /
Wrenches
Fig. 1
LA 5940
