USB-1208FS block diagram

USB-1208FS functions are illustrated in the block diagram shown here.

For information on the features of InstaCal and the other software included with your USB-1208FS, refer to the

Quick Start Guide that shipped with your device.

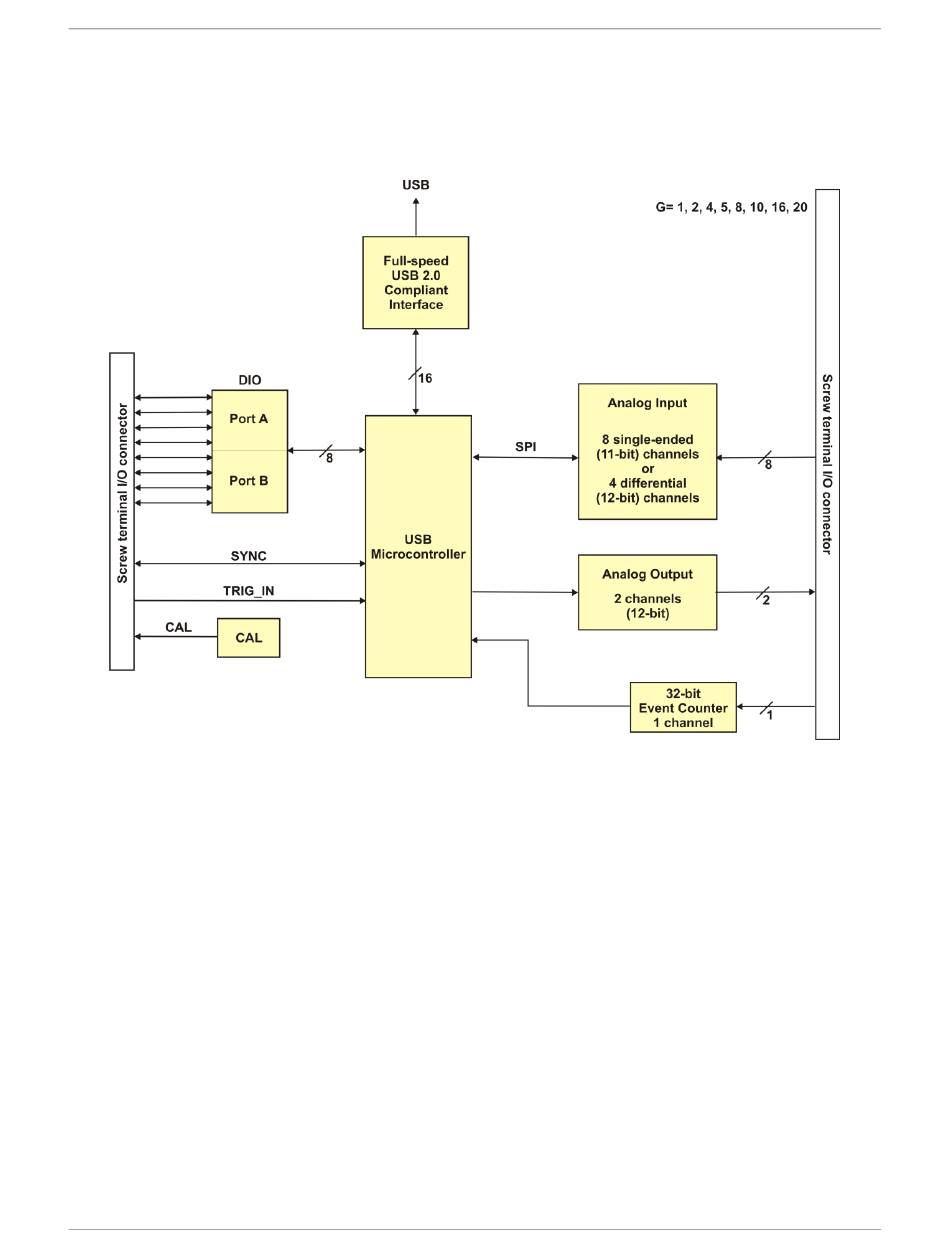

Figure 2. USB-1208FS functional block diagram
