USB-1208FS User's Guide
Functional Details
4. Select Gated from the
Ext. Clock Type
drop-down list.
EXTCLOCK
cbAInScan()/AInScan
5. Set the Universal Library
option with
for the slave USB-1208FS to
enable pacing from the master USB device.
EXTCLOCK
This InstaCal option does not affect internally paced acquisition. It only affects scans that use the
option.

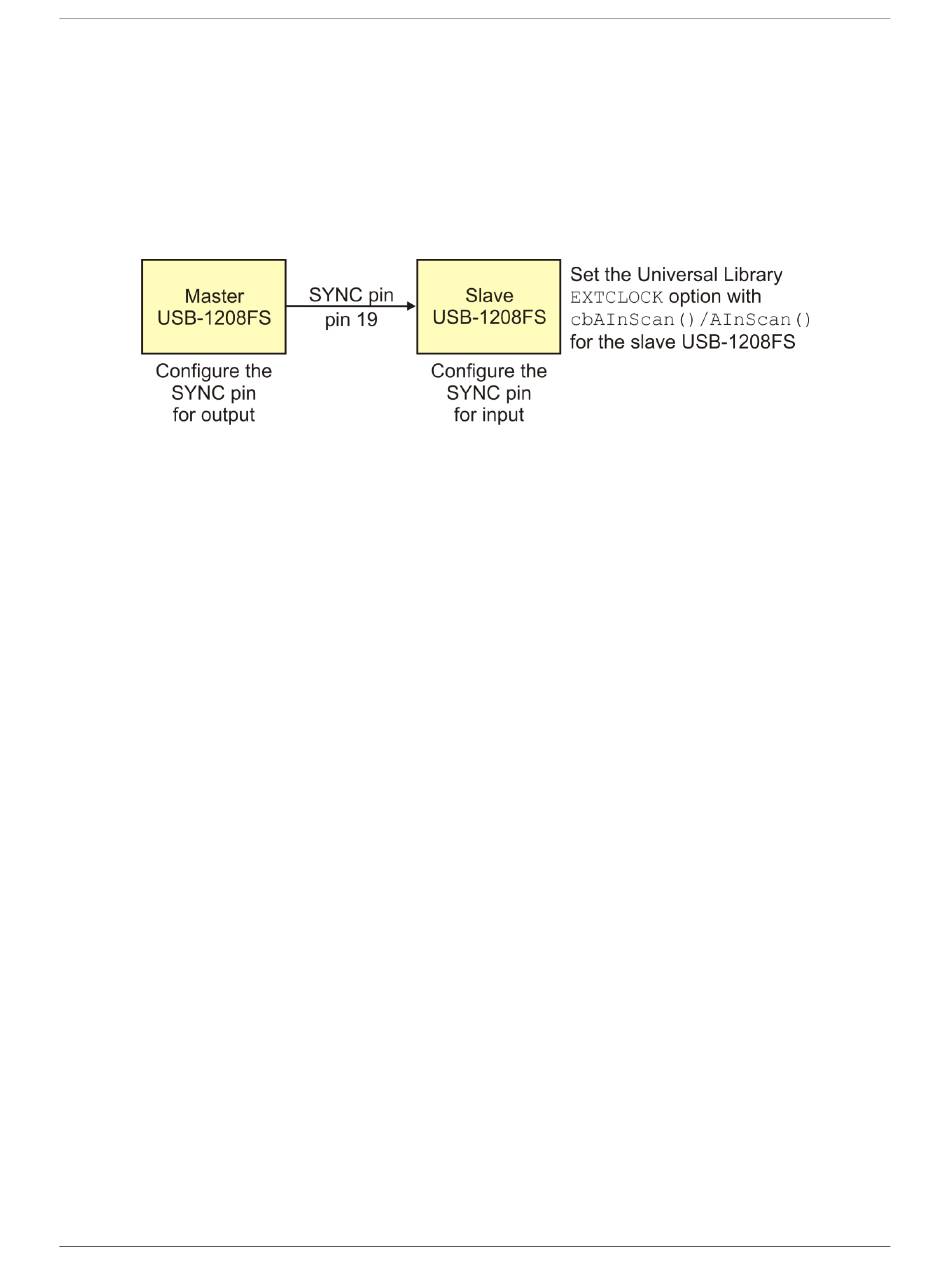

An example of a master/slave configuration is shown below.
Figure 15. Configuring for synchronous data acquisition
EXTCLOCK
When you are operating one USB-1208FS, do not set the
option unless you are using an external
clock for A/D pacing.
24
