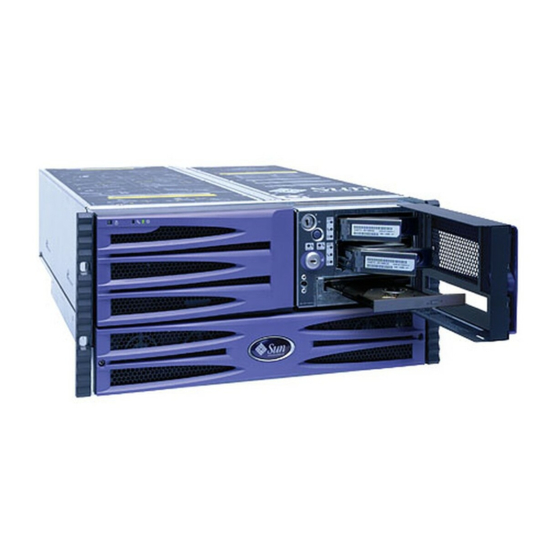

Page 1 Sun Fire V490 Server ™ Administration Guide Sun Microsystems, Inc. www.sun.com Part No. 817-3951-10 August 2004, Revision A Submit comments about this document at: http://www.sun.com/hwdocs/feedback...
Page 2 Copyright 2004 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, Californie 95054, Etats-Unis. Tous droits réservés. Sun Microsystems, Inc. a les droits de propriété intellectuels relatants à la technologie qui est décrit dans ce document. En particulier, et sans la limitation, ces droits de propriété...
Page 3: Table Of Contents
Preface xxv Part I Installation Sun Fire V490 Server Installation 1 About the Parts Shipped to You 1 How to Install the Sun Fire V490 Server 2 Part II Background System Overview 9 About the Sun Fire V490 Server 9...
Page 4 Automatic System Recovery 21 MPxIO 21 Sun Remote System Control Software 22 Hardware Watchdog Mechanism and XIR 23 Dual-Loop Enabled FC-AL Subsystem 23 Support for RAID Storage Configurations 24 Error Correction and Parity Checking 24 Hardware Configuration 25 About Hot-Pluggable and Hot-Swappable Components 26 Power Supplies 26 Disk Drives 27 About the CPU/Memory Boards 27...
Page 5 Configuration Rules 43 About the HSSDC FC-AL Port 43 About the FC-AL Host Adapters 44 Configuration Rules 44 About the Internal Disk Drives 44 Configuration Rule 45 About the Serial Port 45 About the USB Ports 46 Network Interfaces and System Firmware 47 About the Network Interfaces 47 About Redundant Network Interfaces 48 About the ok Prompt 49...
Page 6 About Manually Configuring Devices 59 Deconfiguring Devices vs. Slots 59 Deconfiguring All System Processors 59 Device Paths 60 Reference for Device Identifiers 61 System Administration Software 63 About System Administration Software 63 About Multipathing Software 64 For More Information 65 About Volume Management Software 65 Multiplexed I/O (MPxIO) 66 RAID Concepts 66...
Page 7 About Monitoring the System 101 Monitoring the System Using Remote System Control Software 102 Monitoring the System Using Sun Management Center 103 About Exercising the System 105 Exercising the System Using SunVTS Software 106 Exercising the System Using Hardware Diagnostic Suite 108 Reference for OpenBoot Diagnostics Test Descriptions 109 Reference for Decoding I2C Diagnostic Test Messages 111 Reference for Terms in Diagnostic Output 114...
Page 8 Configuring Network Interfaces and the Boot Device 143 How to Configure the Primary Network Interface 144 How to Configure Additional Network Interfaces 146 How to Select the Boot Device 149 Configuring System Firmware 153 How to Enable OpenBoot Environmental Monitoring 154 How to Disable OpenBoot Environmental Monitoring 154 How to Obtain OpenBoot Environmental Status Information 155 How to Enable the Watchdog Mechanism and Its Options 156...
Page 9 Monitoring the System 185 How to Monitor the System Using Sun Management Center Software 186 How to Monitor the System Using the System Controller and RSC Software 190 How to Use Solaris System Information Commands 197 How to Use OpenBoot Information Commands 198 Exercising the System 201 How to Exercise the System Using SunVTS Software 202 How to Check Whether SunVTS Software Is Installed 206...
Page 10 System Specifications 217 Physical Specifications 217 Electrical Specifications 218 Environmental Specifications 219 Agency Compliance Specifications 220 Clearance and Service Access Specifications 220 Safety Precautions 221 Index 239 Contents...
Page 11 FIGURE 3-6 Power Supply Locations 38 FIGURE 3-7 Fan Trays 40 FIGURE 3-8 Simplified Schematic View of a Sun Fire V490 System 76 FIGURE 6-1 Boot PROM and IDPROM 79 FIGURE 6-2 POST Diagnostic Running Across FRUs 81 FIGURE 6-3...
Page 12 Sun Fire V490 Server Administration Guide • August 2004...
Page 13 Tables System LEDs 14 TABLE 2-1 Fan Tray LEDs 14 TABLE 2-2 Hard Disk Drive LEDs 14 TABLE 2-3 System Control Switch Settings 16 TABLE 2-4 Ethernet LEDs 17 TABLE 2-5 Power Supply LEDs 18 TABLE 2-6 Association Between Processors and DIMM Groups 30 TABLE 3-1 PCI Bus Characteristics, Associated Bridge Chips, Centerplane Devices, TABLE 3-2...
Page 14 OpenBoot Configuration Variables That Affect the System Console 141 TABLE 7-2 Using Solaris Information Display Commands 197 TABLE 11-1 Using OpenBoot Information Commands 199 TABLE 11-2 Useful SunVTS Tests to Run on a Sun Fire V490 Server 205 TABLE 12-1 Tables...
Page 15: Declaration Of Conformity
Sun Microsystems, Inc. One Network Circle, UBUR03-213 Burlington, MA 01803 Tel: 781-442-2118 Fax: 781-442-1673 Declaration of Conformity Sun Fire V490 Class A Pass Pass 6 kV (Direct), 8 kV (Air) 3 V/m 80-1000MHz, 10 V/m 800-960 MHz and 1400-2000 MHz 1 kV AC and DC Power Lines, 0.5 kV Signal Lines,...
Page 16 Sun Fire V490 Server Administration Guide • August 2004...
Page 17: Regulatory Compliance Statements
FCC radio frequency emission limits. Networking connections can be made using unshielded twisted-pair (UTP) cables. Modifications: Any modiﬁcations made to this device that are not approved by Sun Microsystems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
Page 18 ICES-003 Class B Notice - Avis NMB-003, Classe B This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. xviii Sun Fire V490 Server Administration Guide • August 2004...
Page 19: Bsmi Class A Notice
BSMI Class A Notice The following statement is applicable to products shipped to Taiwan and marked as Class A on the product compliance label. Regulatory Compliance Statements...
Page 20 Sun Fire V490 Server Administration Guide • August 2004...
Page 21: How This Book Is Organized
Solaris™ Operating System. Before You Read This Book While the first part of this manual focuses on installation of the Sun Fire V490 server, it does not deal with mounting the server in a cabinet or 2-post rack. For those instructions, see the Sun Fire V490 Server Setup and Rackmounting Guide.
Page 22 Each part of the book is divided into chapters. Part One Chapter 1 describes and provides instructions for Sun Fire V490 server installation. Part Two Chapter 2 presents an illustrated overview of the server and a description of the server’s reliability, availability, and serviceability (RAS) features.
Page 23: Typographic Conventions
Using UNIX Commands This document might not contain information on basic UNIX procedures such as shutting down the system, booting the system, and configuring devices. Refer to the following for this information: Documentation that you received with your system Solaris Operating System documentation, which is at http://docs.sun.com Typographic Conventions Typeface* Meaning...
Page 24: Related Documentation
Control (RSC) software Sun Validation Test Suite (SunVTS) software Sun Management Center software xxiv Sun Fire V490 Server Administration Guide • August 2004 Prompt machine-name% machine-name# Title Site Planning Guide for Entry-Level Servers, Version 1.5 Sun Fire V490 Server Setup and...
Page 25: Accessing Sun Documentation
OpenBoot PROM Enhancements for configuration Diagnostic Operation OpenBoot 4.x Command Reference Manual Late-breaking Sun Fire V490 Server Product Notes information Sun Remote System Control (RSC) 2.2.2 Release Notes SunVTS README file Accessing Sun Documentation You can view, print, or purchase a broad selection of Sun documentation, including localized versions, at: http://www.sun.com/documentation...
Page 26: Contacting Sun Technical Support
You can submit your comments by going to: http://www.sun.com/hwdocs/feedback Please include the title and part number of your document with your feedback: Sun Fire V490 Server Administration Guide, part number 817-3951-10 xxvi Sun Fire V490 Server Administration Guide • August 2004...
Page 27: Part I Installation
For illustrated background information about the hardware and software components of the Sun Fire V490 server, see the chapters in Part Two – Background. For detailed instructions on how to configure and administer the server, and how to perform various diagnostic routines to resolve problems with the server, see the chapters in Part Three –...
Page 29: Sun Fire V490 Server Installation
“How to Install the Sun Fire V490 Server” on page 2 About the Parts Shipped to You Standard features for Sun Fire V490 systems are installed at the factory. However, if you ordered options such as a monitor, or keyboard and mouse, these will be shipped to you separately.
Page 30: Figure 2-4 . The Ethernet Interfaces Operate At
Each step in this procedure refers you to a particular document or to a section of this guide for instructions. Complete each step in the order listed. The best way to begin your installation of a Sun Fire V490 server is by completing the rackmounting and setup procedures in the Sun Fire V490 Server Setup and Rackmounting Guide.
Page 31 Once you have answered these questions, you are ready to begin the installation. What to Do If you have completed the procedures in the Sun Fire V490 Server Setup and Rackmounting Guide, begin this procedure at Step 7. 1. Verify that you have received all the parts of your system.
Page 32 4. Install any optional components shipped with your system. If you ordered options that are not factory-installed, see the Sun Fire V490 Server Parts Installation and Removal Guide for installation instructions. Note – Do not attempt to access any internal components unless you are a qualified service technician.
Page 33 System Controller” on page 159. 12. (Optional) Install a local graphics terminal. After you have installed the Sun Fire V490 system and the Solaris OS, if you prefer to use a graphics terminal as your system console, you can install a graphics card and attach a monitor, mouse, and keyboard to the server.
Page 34 Sun Fire V490 Server Administration Guide • August 2004...
Page 35: Part Ii Background
Background P A R T The five chapters within this part of the Sun Fire V490 Server Administration Guide explain and illustrate in detail the various components of the server’s hardware, software, and firmware. Use the chapters as a guided tour through the panels, cables, cards, switches, and so forth that make up your server.
Page 37: System Overview
C H A P T E R System Overview This chapter introduces you to the Sun Fire V490 server and describes some of its features. The following information is covered in this chapter: “About the Sun Fire V490 Server” on page 9 “Locating Front Panel Features”...
Page 38 Slots for up to 16 dual inline memory modules (DIMMs)—eight per processor A fully configured Sun Fire V490 system includes a total of four UltraSPARC IV processors residing on two CPU/Memory boards. For more information, see “About the CPU/Memory Boards” on page 27.
Page 39 Configure the Primary Network Interface” on page 144 and “How to Configure Additional Network Interfaces” on page 146. The Sun Fire V490 server provides a serial communication port, which you can access through an RJ-45 connector located on the system’s back panel. For more information, see “About the Serial Port”...
Page 40: Locating Front Panel Features
However, even if the top panel lock is in the Locked position, thereby locking both the PCI and CPU access panels, you can still unlock the media door security lock and Sun Fire V490 Server Administration Guide • August 2004 System control switch...
Page 41: Led Status Indicators
gain access to the disk drives, power supplies, and Fan Tray 0. If the media door is locked and the power supply access panel is in place, you will not be able to gain access to the power supplies, disk drives, and Fan Tray 0—even if the PCI access panel is unlocked.
Page 42: Table 2-1 System Leds
Further details about the diagnostic use of LEDs are discussed separately in the section, “How to Isolate Faults Using LEDs” on page 172. Sun Fire V490 Server Administration Guide • August 2004 Description This white LED is lit by the Sun Management Center, RSC software, or by the Solaris command to locate a system.
Page 43: Power Button
Power Button The system Power button is recessed to prevent accidentally turning the system on or off. The ability of the Power button to turn the system on or off is controlled by the system control switch. See the section, “System Control Switch” on page 15. If the operating system is running, pressing and releasing the Power button initiates a graceful software system shutdown.
Page 44: Locating Back Panel Features
Locating Back Panel Features The following figure shows the system features that you can access from the back panel. Sun Fire V490 Server Administration Guide • August 2004 Icon Description This setting enables the system Power button to power the system on or off.
Page 45: Figure 2-3 Sun Fire V490 Server Back Panel Features
Ethernet AC input for Power Supply 1 Power Supply 1 status LEDs Sun Fire V490 Server Back Panel Features FIGURE 2-3 Main system LEDs—Locator, Fault, and Power/OK—are repeated on the back panel. (See TABLE 2-1 addition, the back panel includes LEDs that display the status of each of the two power supplies and both on-board Ethernet connections.
Page 46: Figure 2-4 Back Panel External Ports
Serial port FC-AL port Back Panel External Ports FIGURE 2-4 Sun Fire V490 Server Administration Guide • August 2004 Description This blue LED lights when it is safe to remove the power supply from the system. This amber LED lights when the power supply’s internal microcontroller detects a fault in the monitored power supply.
Page 47: About Reliability, Availability, And Serviceability Features
Together, reliability, availability, and serviceability features provide for near continuous system operation. To deliver high levels of reliability, availability and serviceability, the Sun Fire V490 system offers the following features: Hot-pluggable disk drives...
Page 48: Power Supply Redundancy
AC power source fail. For more information about power supplies, redundancy, and configuration rules, see “About the Power Supplies” on page 38. Environmental Monitoring and Control The Sun Fire V490 system features an environmental monitoring subsystem designed to protect against: Extreme temperatures...
Page 49: Automatic System Recovery
The implementation of ASR on the Sun Fire V490 server is different. ASR on the Sun Fire V490 server provides for automatic fault isolation and...
Page 50: Sun Remote System Control Software
The RSC software works with the system controller (SC) card on the Sun Fire V490 system PCI riser board. The SC card provides an Ethernet connection to a remote console and a serial connection to a local alphanumeric terminal.
Page 51: Hardware Watchdog Mechanism And Xir
Hardware Watchdog Mechanism and XIR To detect and respond to system hang conditions, the Sun Fire V490 system features a hardware watchdog mechanism—a hardware timer that is continually reset as long as the operating system is running. In the event of a system hang, the operating system is no longer able to reset the timer.
Page 52: Support For Raid Storage Configurations
Support for RAID Storage Configurations By attaching one or more external storage devices to the Sun Fire V490 server, you can use a software RAID application, such as Sun StorEdge™, to configure system disk storage in a variety of different RAID levels. Configuration options include RAID 0 (striping), RAID 1 (mirroring), RAID 0+1 (striping plus mirroring), RAID 1+0 (mirroring plus striping), and RAID 5 (striping with interleaved parity).
Page 53: Hardware Configuration
C H A P T E R Hardware Configuration This chapter provides hardware configuration information for the Sun Fire V490 server. The following topics are covered in this chapter: “About Hot-Pluggable and Hot-Swappable Components” on page 26 “About the CPU/Memory Boards” on page 27 “About the Memory Modules”...
Page 54: About Hot-Pluggable And Hot-Swappable Components
About Hot-Pluggable and Hot- Swappable Components In a Sun Fire V490 system, the FC-AL disk drives are hot-pluggable components and the power supplies are hot-swappable. (No other component of the system is either hot-pluggable or hot-swappable.) Hot-pluggable components are those that you can install or remove while the system is running, without affecting the rest of the system’s capabilities.
Page 55: Disk Drives
Sun Fire V490 internal disk drives are hot-pluggable. However, certain software preparations are required prior to removing or installing a drive. To perform Sun Fire V490 disk drive hot-plug operations, you use the Solaris luxadm utility. The luxadm utility is a command-line tool for managing intelligent storage arrays such as Sun StorEdge A5x00 series disk arrays or Sun Fire V490 internal storage arrays.
Page 56: About The Memory Modules
DIMM slots FIGURE 3-1 and DIMM groups on a Sun Fire V490 CPU/Memory board. Every fourth slot belongs to the same DIMM group. The four groups are designated A0, A1, B0, and Sun Fire V490 Server Administration Guide • August 2004...
Page 57: Figure 3-1 Memory Module Groups A0, A1, B0, B1
Memory Module Groups A0, A1, B0, B1 FIGURE 3-1 You must physically remove a CPU/Memory board from the system before you can install or remove DIMMs. The DIMMs must be added four-at-a-time within the same DIMM group, and each group used must have four identical DIMMs installed—that is, all four DIMMs in the group must be from the same manufacturing vendor and must have the same capacity (for example, four 512-Mbyte DIMMs or four 1-Gbyte DIMMs).
Page 58: Memory Interleaving
One processor controls DIMM groups A0 and A1, while the other processor controls DIMM groups B0 and B1. The Sun Fire V490 system uses a shared memory architecture. During normal system operations, the total system memory is shared by all processors in the system.
Page 59: Configuration Rules
Note – Do not attempt to access any internal components unless you are a qualified service technician. Detailed service instructions can be found in the Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD.
Page 60: Figure 3-2 Pci Slots
Note – PCI cards in a Sun Fire V490 system are not hot-pluggable. PCI Bus Characteristics, Associated Bridge Chips, Centerplane Devices, TABLE 3-2 and PCI Slots PCI Bridge PCI Bus PCI A PCI B PCI C PCI D shows the PCI card slots on the PCI riser board.
Page 61: Configuration Rules
About the System Controller (SC) Card The system controller (SC) card enables access, monitoring, and control of the Sun Fire V490 server from a remote location. It is a fully independent processor card with its own resident firmware, power-on self-test (POST) diagnostics, and real-time operating system.
Page 62: Figure 3-3 Sun System Controller (Sc) Card
FIGURE 3-3 The SC card features serial and Ethernet interfaces that provide simultaneous access to the Sun Fire V490 server for multiple RSC software users. RSC software users are provided secure access to the system’s Solaris and OpenBoot console functions and have full control over power-on self-test (POST) and OpenBoot Diagnostics.
Page 63: Configuration Rules
Note – Do not attempt to access any internal components unless you are a qualified service technician. Detailed service instructions can be found in the Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD.
Page 64: About Hardware Jumpers
About Hardware Jumpers Three jumpers are located on the Sun Fire V490 system’s PCI riser board. Note that jumpers are set at the factory to ensure best system performance. Be aware that moving any jumper shunt from its default location can render the system unstable or unusable.
Page 65: Figure 3-6 Hardware Jumpers On Pci Riser Board
J1103 J1102 Hardware Jumpers on PCI Riser Board FIGURE 3-6 The functions of the PCI riser board jumpers are shown in PCI Riser Board Jumper Functions TABLE 3-3 Jumper Shunt on Pins 1 + 2 Selects OpenBoot flash PROM J1102 Reserved for future use J1103 OpenBoot flash PROM...
Page 66: About The Power Supplies
PDB by way of two board-mounted IEC320 receptacles, each dedicated to one power supply. The Sun Fire V490 system’s N+1 redundant power supplies are modular units, designed for fast, easy installation or removal, even while the system is fully operational.
Page 67: Configuration Rule
Caution – If any power supply fails, leave the supply in its bay until you are ready to install a replacement. For information about installing power supplies, see the Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD.
Page 68: Figure 3-8 Fan Trays
Caution – Fans on a Sun Fire V490 system are not hot-pluggable. Do not attempt to access any internal components unless you are a qualified service technician. Detailed service instructions can be found in the Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD.
Page 69: Configuration Rule
Note – Do not attempt to access any internal components unless you are a qualified service technician. Detailed service instructions can be found in the Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD.
Page 70: Table 3-4 Fc-Al Features And Advantages
Supports redundant array of independent disks (RAID). 1 The 127 supported devices include the FC-AL controller required to support each arbitrated loop. Sun Fire V490 Server Administration Guide • August 2004 Advantages High throughput meets the demands of current generation high-performance processors and disks.
Page 71: About The Fc-Al Backplane
The FC-AL disks are hot-pluggable. For information about installing or removing an FC-AL disk or disk backplane, see the Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD. Chapter 3 Hardware Configuration...
Page 72: About The Hssdc Fc-Al Port
About the HSSDC FC-AL Port The Sun Fire V490 system back panel includes an FC-AL port with a high-speed serial data connector (HSSDC). Note – At this time, no Sun storage products are supported utilizing the HSSDC connector. About the FC-AL Host Adapters The Sun Fire V490 server uses an intelligent Fibre Channel processor as its on-board FC-AL controller.
Page 73: About The Internal Disk Drives
Gbyte disks), with larger capacities possible as disk storage capacities continue to grow. Sun Fire V490 disk drives are dual-ported for multipath access. When used in a dual-loop configuration—with the optional addition of a second FC-AL controller on a PCI adapter card—each drive can be accessed through two separate and distinct data paths.
Page 74: About The Usb Ports
For your convenience, a serial port adapter (part number 530-2889-03) is included in your Sun Fire V490 server ship kit. This adapter enables you to use a standard RJ-45 serial cable to connect directly from the serial connector on the back panel to a Sun workstation, or to any other terminal that is equipped with a DB-25 serial connector.
Page 75: Network Interfaces And System Firmware
“Reference for Device Identifiers” on page 61 About the Network Interfaces The Sun Fire V490 server provides two on-board Ethernet interfaces, which reside on the system centerplane and conform to the IEEE 802.3z Ethernet standard. For an illustration of the Ethernet ports, see Mbps, 100 Mbps, and 1000 Mbps.
Page 76: About Redundant Network Interfaces
PCI network interface cards, or add a single card that provides an interface identical to one of the two on-board Ethernet interfaces. Sun Fire V490 Server Administration Guide • August 2004 Description This amber LED lights when data is either being transmitted or received by the particular port.
Page 77: About The Ok Prompt
A synopsis of run levels follows; for a full description, see the Solaris system administration documentation. Most of the time, you operate a Sun Fire V490 system at run level 2, or run level 3, which are multiuser states with access to full system and network resources.
Page 78: What You Should Know About Accessing The Ok Prompt
Prompt It is important to understand that when you access the ok prompt from a functioning Sun Fire V490 system, you are suspending the Solaris OS software and placing the system under firmware control. Any processes that were running under the Solaris OS software are also suspended, and the state of such processes may not be recoverable.
Page 79: Stop-A (L1-A) Or Break Key Sequence
When it is impossible or impractical to halt the system gracefully, you can get to the ok prompt by typing the Stop-A (or L1-A) key sequence from a Sun keyboard, or, if you have an alphanumeric terminal attached to the Sun Fire V490 system, by pressing the Break key.
Page 80: About Openboot Environmental Monitoring
About OpenBoot Environmental Monitoring Environmental monitoring and control capabilities for Sun Fire V490 systems reside at both the operating system level and the OpenBoot firmware level. This ensures that monitoring capabilities are operational even if the system has halted or is unable to boot.
Page 81: Automatic System Shutdown
Note – Using the Stop-A keyboard command to enter the OpenBoot environment during power-on or reset will immediately disable the OpenBoot environmental monitor. If you want the OpenBoot PROM environmental monitor enabled, you must reenable it prior to rebooting the system. If you enter the OpenBoot environment through any other means—by halting the operating system, by power- cycling the system, or as a result of a system panic—the OpenBoot environmental monitor will remain enabled.
Page 82: About Openboot Emergency Procedures
(indicated by the display of the ok prompt). The key sequence works the same on the Sun Fire V490 server as it does on older systems with non-USB keyboards, except that it does not work during the first few seconds after the machine is reset.
Page 83: Stop-F Functionality
For instructions, see “How to Implement Stop-N Functionality” on page 164. The drawback of using Stop-N on a Sun Fire V490 system is that, if diagnostics are enabled, it can take some time for the system to reach the desired state. Fortunately, an alternative exists: Place the system control switch in the Diagnostics position.
Page 84: Auto-Boot Options
If a system fails power-on diagnostics, then auto-boot? is ignored and the system does not start up unless an operator boots the system manually. This behavior obviously provides limited system availability. Therefore, the Sun Fire V490 OpenBoot firmware provides a second OpenBoot configuration variable switch called auto-boot-on-error?.
Page 85: Error Handling Summary
Error Handling Summary Error handling during the power-on sequence falls into one of three cases summarized in the following table. Scenario System Behavior No errors are The system attempts to boot if detected. auto-boot? is true. Nonfatal errors are The system attempts to boot if detected.
Page 86: Reset Scenarios
TABLE 6-2 diagnostics and system behavior. Sun Fire V490 Server Administration Guide • August 2004 Function Reset caused by power-cycling the system. Reset caused by certain hardware error events, such as a RED State Exception, Watchdog Reset, or Fatal Reset.
Page 87: About Manually Configuring Devices
OpenBoot configuration variables that affect ASR behavior, in OpenBoot PROM Enhancements for Diagnostic Operation, which is available on the Sun Fire V490 Documentation CD. About Manually Configuring Devices This section explains the difference between deconfiguring a device and a slot, tells what happens if you try to deconfigure all of a system’s processors, and also...
Page 88: Device Paths
The related deconfiguration and reconfiguration procedures are covered in: “How to Deconfigure a Device Manually” on page 162 “How to Reconfigure a Device Manually” on page 163 Device identifiers are listed in “Reference for Device Identifiers” on page 61. Sun Fire V490 Server Administration Guide • August 2004...
Page 89: Reference For Device Identifiers
Reference for Device Identifiers Refer to the following table when manually specifying which devices to deconfigure and reconfigure. The related procedures are covered in: “How to Deconfigure a Device Manually” on page 162 “How to Reconfigure a Device Manually” on page 163 Device Identifiers cmpx, where x is a number 0–3, or 16–19 cmpx-bank0, cmpx-bank1, cmpx-bank2, cmpx-bank3, where x...
Page 90 Sun Fire V490 Server Administration Guide • August 2004...
Page 91: System Administration Software
C H A P T E R System Administration Software This chapter provides an introduction to system administration software tools supported on the Sun Fire V490 system. The following information is covered in this chapter: “About System Administration Software” on page 63 “About Multipathing Software”...
Page 92: About Multipathing Software
FC-AL host bus adapters connected to the same dual-ported storage array. For Sun Fire V490 systems, three different types of multipathing software are available: Solaris IP Network Multipathing software provides multipathing and load balancing capabilities for IP network interfaces.
Page 93: For More Information
Multipathing, consult the IP Network Multipathing Administration Guide provided with your specific Solaris release. For more information about Sun StorEdge Traffic Manager, see the Sun Fire V490 Server Product Notes. For information about MPxIO, see “Multiplexed I/O (MPxIO)” on page 66 and refer to your Solaris OS documentation.
Page 94: Multiplexed I/O (Mpxio)
Multiplexed I/O (MPxIO) A newer alternative to dynamic multipathing (DMP) that is also supported by the Sun Fire V490 server is multiplexed I/O (MPxIO). Beginning with Solaris 8, MPxIO is fully integrated within the Solaris OS software’s core I/O framework. MPxIO enables you more effectively to represent and manage devices that are accessible through multiple I/O controller interfaces within a single instance of the Solaris OS.
Page 95: Disk Concatenation
Disk Concatenation Disk concatenation is a method for increasing logical volume size beyond the capacity of one disk drive by creating one large volume from two or more smaller drives. This lets you create arbitrarily large partitions. Using this method, the concatenated disks are filled with data sequentially, with the second disk being written to when no space remains on the first, the third when no room remains on the second, and so on.
Page 96: Raid 5: Disk Striping With Parity
For More Information See the documentation supplied with Solstice DiskSuite software. For more information about MPxIO, see your Solaris system administration documentation. Sun Fire V490 Server Administration Guide • August 2004...
Page 97: About Sun Cluster Software
About Sun Cluster Software Sun™ Cluster software lets you connect up to eight Sun servers in a cluster configuration. A cluster is a group of nodes that are interconnected to work as a single, highly available and scalable system. A node is a single instance of Solaris software—it may be running on a standalone server or on a domain within a standalone server.
Page 98: What The System Console Does
During initial installation of the Sun Fire V490 system and the Solaris OS software, you must use the built-in serial port (ttya) to access the system console. After installation, you can configure the system console to use different input and output devices.
Page 99: Alternative System Console Configuration
Using a Local Graphics Terminal as the System Console The Sun Fire V490 server is shipped without a mouse, keyboard, monitor, or frame buffer for the display of graphics. To install a local graphics terminal on the server, you must install a graphics frame buffer card into a PCI slot, and attach a monitor, mouse, and keyboard to the appropriate back panel ports.
Page 100 For instructions on setting up the system controller as the system console, see “How to Redirect the System Console to the System Controller” on page 159. For instructions on configuring and using RSC software, see the Sun Remote System Controller (RSC) User’s Guide. Sun Fire V490 Server Administration Guide • August 2004...
Page 101: Diagnostic Tools
(Chapter 12). About the Diagnostic Tools Sun provides a wide spectrum of diagnostic tools for use with the Sun Fire V490 server. These tools range from the formal—like Sun’s comprehensive Validation Test Suite (SunVTS), to the informal—like log files that may contain clues helpful in...
Page 102: Table 6-1 Summary Of Diagnostic Tools
Display various kinds of system commands information SunVTS Software Exercises and stresses the system, running tests in parallel Sun Fire V490 Server Administration Guide • August 2004 TABLE 6-1 Remote Accessibility and Availability Capability Accessed from system Local, but chassis. Available anytime...
Page 103 There are a number of reasons for the lack of a single all-in-one diagnostic test, starting with the complexity of the server systems. Consider the data bus built into every Sun Fire V490 server. This bus features a five- way switch called a CDX that interconnects all processors and high-speed I/O interfaces (see over its private data paths.
Page 104: Figure 6-1 Simplified Schematic View Of A Sun Fire V490 System
Controller Controller HSSDC, USB, & Ethernet I/O Simplified Schematic View of a Sun Fire V490 System FIGURE 6-1 Consider also that some diagnostics must function even when the system fails to start. Any diagnostic capable of isolating problems when the system fails to start up must be independent of the operating system.
Page 105: About Diagnostics And The Boot Process
Perhaps you have watched as your console displays messages that look like the following: 0:0> 0:0>@(#) Sun Fire[TM] V480/V490 POST 4.15 2004/04/09 16:27 0:0>Copyright © 2004 Sun Microsystems, Inc. All rights reserved SUN PROPRIETARY/CONFIDENTIAL. Use is subject to license terms. 0:0>Jump from OBP->POST.
Page 106: Prologue: System Controller Boot
Prologue: System Controller Boot As soon as you plug in the Sun Fire V490 server to an electrical outlet, and before you turn on power to the server, the system controller (SC) inside the server begins its self-diagnostic and boot cycle. During this time, the locator LED blinks. Running off standby power, the system controller card begins functioning before the server itself comes up.
Page 107: Figure 6-2 Boot Prom And Idprom
For a Sun Fire V490 server, this means: At least one of the processors is working. At least a subset of system memory is functional.
Page 108: What Post Error Messages Tell You
The specific test that failed The specific circuit or subcomponent that is most likely at fault The field-replaceable units (FRUs) most likely to require replacement, in order of likelihood Sun Fire V490 Server Administration Guide • August 2004...
Page 109: Figure 6-3 Post Diagnostic Running Across Frus
FRU is responsible. If this seems counter-intuitive, consider the block diagram of one data path within a Sun Fire V490 server, shown in Processor CPU / Memory board...
Page 110: Controlling Post Diagnostics
OpenBoot PROM Enhancements for Diagnostic Operation and OpenBoot 4.x Command Reference Manual. The former is included on the Sun Fire V490 Documentation CD. The latter is included with the Solaris Software Supplement CD that ships with Solaris software.
Page 111: Table 6-2 Openboot Configuration Variables
The level of test coverage, verbosity, and output is determined by user-defined settings. Note: The above behaviors only apply to server machines like the Sun Fire V490 server. Workstations behave differently. For details, see OpenBoot PROM Enhancements for Diagnostic Operation.
Page 112 Note: If the system control switch is in Diagnostics position, the system will boot in service mode even if the service-mode? variable is false. Sun Fire V490 Server Administration Guide • August 2004 — Reset that is caused by certain hardware error events such as RED —...
Page 113: Stage Two: Openboot Diagnostics Tests
OpenBoot Diagnostics tests focus on system I/O and peripheral devices. Any device in the device tree, regardless of manufacturer, that includes an IEEE 1275-compatible self-test is included in the suite of OpenBoot Diagnostics tests. On a Sun Fire V490 server, OpenBoot Diagnostics test the following system components: I/O interfaces;...
Page 114: Table 6-3 Keywords For The Test-Args Openboot Configuration Variable
The obdiag> prompt and the OpenBoot Diagnostics interactive menu ( appear. For a brief explanation of each OpenBoot Diagnostics test, see “Reference for OpenBoot Diagnostics Test Descriptions” on page 109. Sun Fire V490 Server Administration Guide • August 2004 lists the available keywords. What It Does...
Page 115: Figure 6-4 Openboot Diagnostics Interactive Test Menu
1 SUNW,qlc@2 4 flashprom@0,0 7 ide@6 10 pmc@1,300700 13 serial@1,400000 Commands: test test-all except help what setenv set-default exit diag-passes=1 diag-level=off test-args=subtests OpenBoot Diagnostics Interactive Test Menu FIGURE 6-4 Interactive OpenBoot Diagnostics Commands You run individual OpenBoot Diagnostics tests from the obdiag> prompt by typing: obdiag>...
Page 116: What Openboot Diagnostics Error Messages Tell You
Note – Knowing how to construct an appropriate hardware device path requires precise knowledge of the hardware architecture of the Sun Fire V490 system. To customize an individual test, you can use test-args as follows: ok test /usb@1,3:test-args={verbose,debug} This affects only the current test without changing the value of the test-args OpenBoot configuration variable.
Page 117: I 2 C Bus Device Tests
Pass:1 (of 1) Errors:1 (of 1) Tests Failed:1 Elapsed Time: 0:0:0:0 CODE EXAMPLE 6-2 C Bus Device Tests i2c@1,2e environmental monitoring and control devices connected to the Sun Fire V490 server’s Inter-IC (I Error and status messages from the tests include the hardware addresses of I...
Page 118: Other Openboot Commands
Beyond the formal firmware-based diagnostic tools, there are a few commands you can invoke from the ok prompt. These OpenBoot commands display information that can help you assess the condition of a Sun Fire V490 server. These include the following commands: .env command...
Page 119 The probe-scsi command communicates with all SCSI and FC-AL devices connected to on-board SCSI and FC-AL controllers. The probe-scsi-all command additionally accesses devices connected to any host adapters installed in PCI slots. For any SCSI or FC-AL device that is connected and active, the probe-scsi and probe-scsi-all commands display its loop ID, host adapter, logical unit number, unique World Wide Name (WWN), and a device description that includes type and manufacturer.
Page 120: Probe-Ide Command
/virtual-memory /memory@m0,20 /pci@9,600000/SUNW,qlc@2 /pci@9,600000/network@1 /pci@9,600000/SUNW,qlc@2/fp@0,0 /pci@9,600000/SUNW,qlc@2/fp@0,0/disk CODE EXAMPLE 6-6 Sun Fire V490 Server Administration Guide • August 2004 ( Primary Master ) ( Primary Slave ) Not Present probe-ide Command Output shows some sample output (edited for CODE EXAMPLE 6-6...
Page 121: Stage Three: The Operating System
Solaris system administration documentation. Solaris System Information Commands Some Solaris commands display data that you can use when assessing the condition of a Sun Fire V490 server. These include the following commands: prtconf command prtdiag command...
Page 122: Prtconf Command
Command The prtdiag command displays a table of diagnostic information that summarizes the status of system components. Sun Fire V490 Server Administration Guide • August 2004 Sun Microsystems fp (driver not attached) disk (driver not attached)
Page 123 The display format used by the prtdiag command can vary depending on what version of the Solaris OS is running on your system. Following is an excerpt of some of the output produced by prtdiag on a healthy Sun Fire V490 system running Solaris 8, Update 7.
Page 124: Prtfru Command
CPU1 CODE EXAMPLE 6-11 prtfru Command The Sun Fire V490 system maintains a hierarchical list of all field-replaceable units (FRUs) in the system, as well as specific information about various FRUs. Sun Fire V490 Server Administration Guide • August 2004...
Page 125 Data displayed by the prtfru command varies depending on the type of FRU. In general, this information includes: FRU description Manufacturer name and location Part number and serial number Hardware revision levels Information about the following Sun Fire V490 FRUs is displayed by the prtfru command: Centerplane CPU/Memory boards DIMMs FC-AL disk backplane...
Page 126: Psrinfo Command
Application architecture: sparc Hardware provider: Sun_Microsystems Domain: Sun.COM Kernel version: SunOS 5.8 cstone_14:08/01/01 2001 CODE EXAMPLE 6-15 Sun Fire V490 Server Administration Guide • August 2004 psrinfo -v Command Output shows sample output of the showrev command. showrev Command Output...
Page 127: Tools And The Boot Process: A Summary
When used with the -p option, this command displays installed patches. CODE EXAMPLE 6-16 the -p option. Patch: 109729-01 Obsoletes: Patch: 109783-01 Obsoletes: Patch: 109807-01 Obsoletes: Patch: 109809-01 Obsoletes: Patch: 110905-01 Obsoletes: Patch: 110910-01 Obsoletes: Patch: 110914-01 Obsoletes: Patch: 108964-04 Obsoletes: CODE EXAMPLE 6-16 Tools and the Boot Process: A Summary Different diagnostic tools are available to you at different stages of the boot process.
Page 128: About Isolating Faults In The System
(FRUs). The row headings along the left of in a Sun Fire V490 system. The available diagnostic tools are shown in column headings across the top. A check mark ( ) in this table indicates that a fault in a particular FRU can be isolated by a particular diagnostic.
Page 129: About Monitoring The System
In addition to the FRUs listed in system components—mostly cables—that cannot directly be isolated by any system diagnostic. For the most part, you determine when these components are faulty by eliminating other possibilities. These FRUs are listed in FRUs Not Directly Isolated by Diagnostic Tools TABLE 6-6 Notes FC-AL power cable...
Page 130: Monitoring The System Using Remote System Control Software
The system controller card runs independently, and uses standby power from the server. Therefore, the SC and its RSC software continue to be effective when the server operating system goes offline. RSC software lets you monitor the following on the Sun Fire V490 server. What TABLE 6-7...
Page 131: Monitoring The System Using Sun Management Center
For instructions on using RSC software to monitor a Sun Fire V490 system, see “How to Monitor the System Using the System Controller and RSC Software” on page 190. Monitoring the System Using Sun Management Center Sun Management Center software provides enterprise-wide monitoring of Sun servers and workstations, including their subsystems, components, and peripheral devices.
Page 132: Other Sun Management Center Features
If you administer a heterogeneous network and use a third-party network-based system monitoring or management tool, you may be able to take advantage of Sun Management Center software’s support for Tivoli Enterprise Console, BMC Patrol, and HP Openview. Sun Fire V490 Server Administration Guide • August 2004...
Page 133: Who Should Use Sun Management Center
Sun provides two tools for exercising Sun Fire V490 systems: Sun Validation Test Suite (SunVTS™) Hardware Diagnostic Suite shows the FRUs that each system exercising tool is capable of isolating.
Page 134: Exercising The System Using Sunvts Software
For typical system configurations, this requires one or two hours. Comprehensive testing – SunVTS software exhaustively and repeatedly tests all subsystems for up to 24 hours. Sun Fire V490 Server Administration Guide • August 2004 SunVTS Hardware Diagnostic Suite...
Page 135 The Sun Fire V490 server to be tested must be up and running if you want to use SunVTS software, since it relies on the Solaris operating system. Since SunVTS software packages are optional, they may not be installed on your system.
Page 136: Sunvts Software And Security
If the faulty part is hot-pluggable or hot-swappable, the entire diagnose-and-repair cycle can be completed with minimal impact to system users. Sun Fire V490 Server Administration Guide • August 2004...
Page 137: Requirements For Using Hardware Diagnostic Suite
Requirements for Using Hardware Diagnostic Suite Since it is a part of Sun Management Center, you can only run Hardware Diagnostic Suite if you have set up your data center to run Sun Management Center. This means you have to dedicate a master server to run the Sun Management Center server software that supports Sun Management Center software’s database of platform status information.
Page 138: Table 6-11 Openboot Diagnostics Test Menu Commands
# test #,# Sun Fire V490 Server Administration Guide • August 2004 Description Exits OpenBoot Diagnostics tests and returns to the ok prompt Displays a brief description of each OpenBoot Diagnostics command and OpenBoot configuration variable...
Page 139: Reference For Decoding I2C Diagnostic Test Messages
Reference for Decoding I Test Messages describes each I C device in a Sun Fire V490 system, and helps you TABLE 6-12 associate each I C address with the proper FRU. For more information about I tests, see “I2C Bus Device Tests” on page 89.
Page 140 Sun Fire V490 Server Administration Guide • August 2004 C Bus Devices (Continued) Associated FRU What the Device Does processor 1, DIMM 0 processor 1, DIMM 1 processor 1, DIMM 2 processor 1, DIMM 3...
Page 141 Sun Fire V490 I C Bus Devices (Continued) TABLE 6-12 Address Associated FRU fru@4,aa PCI riser fru@5,10 Centerplane fru@5,14 RSC card temperature@5,30 CPU/Mem board A temperature@5,32 CPU/Mem board B temperature@5,34 CPU/Mem board A temperature@5,52 CPU/Mem board B ioexp@5,44 FC-AL disk backplane...
Page 142: Reference For Terms In Diagnostic Output
Term DCDS EBus I/O Board JTAG Motherboard Sun Fire V490 Server Administration Guide • August 2004 is included to assist you in decoding this terminology and TABLE 6-13 Description Analog-to-Digital Converter Advanced Power Control – A function provided by the SuperIO integrated circuit Boot Bus Controller –...
Page 143 Abbreviations or Acronyms in Diagnostic Output (Continued) TABLE 6-13 Term Description NVRAM IDPROM Refers to OpenBoot firmware Power Distribution Board Power Management Controller POST Power-On Self-Test Multifunction integrated circuit bridging the PCI bus with EBus and USB Real-Time Clock Receive – Communication protocol Safari The system interconnect architecture—that is, the data and address buses...
Page 144 Sun Fire V490 Server Administration Guide • August 2004...
Page 145: Iii Instructions
III Instructions P A R T The six chapters within this part of the Sun Fire V490 Server Administration Guide use illustrated instructions on how to set up various components within your system, configure your system, and diagnose problems. Instructions within this guide are primarily to be used by experienced system administrators who are familiar with the Solaris OS and its commands.
Page 147: Configuring Console Access
C H A P T E R Configuring Console Access This chapter includes instructions on how to configure and access the system console from different physical devices. Tasks covered in this chapter include: “How to Avoid Electrostatic Discharge” on page 120 “How to Power On the System”...
Page 148: How To Avoid Electrostatic Discharge
Removing and installing the system control switch/power button cable The AC power cord provides a discharge path for static electricity, so it should remain plugged in except when you are servicing the parts noted above. Sun Fire V490 Server Administration Guide • August 2004...
Page 149 2. Use an antistatic mat or similar surface. When performing any installation or service procedure, place static-sensitive parts, such as boards, cards, and disk drives, on an antistatic surface. The following items can be used as an antistatic surface: The bag used to wrap a Sun replacement part The shipping container used to package a Sun replacement part Sun electrostatic discharge (ESD) mat, Sun part number 250-1088 (available through your Sun sales representatives)
Page 150: How To Power On The System
Read the documentation supplied with the device for specific instructions. 2. Turn on power to the ASCII terminal or local graphics terminal, if present. 3. Open the media door. Use the system key to unlock the media door. Sun Fire V490 Server Administration Guide • August 2004...
Page 151 4. Insert the system key into the system control switch and turn the system control switch to the Normal position. See “System Control Switch” on page 15 for information about each system control switch setting. Normal position Power button 5. Press the Power button that is below the system control switch to power on the system.
Page 152: What Next
7. Remove the system key from the system control switch and keep it in a secure place. What Next To power off the system, complete this task: “How to Power Off the System” on page 125 Sun Fire V490 Server Administration Guide • August 2004 Locked position...
Page 153: How To Power Off The System
How to Power Off the System Before You Begin Applications running on the Solaris OS can be adversely affected by a poorly executed system shutdown. Make sure that you have gracefully shut down any applications before powering off the system. You can also use Solaris commands, the OpenBoot firmware power-off command, or RSC software to power off the system.
Page 154: Before You Begin
Note – Do not attempt to access any internal components unless you are a qualified service technician. Detailed service instructions can be found in the Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD.
Page 155: How To Attach A Twisted-Pair Ethernet Cable
If at all possible, back up system data before starting this procedure. Also halt all applications and warn users of the impending loss of service. For information about the appropriate backup and shutdown procedures, see Solaris system administration documentation. What to Do 1.
Page 156: What To Do
Install the server in the rack, following instructions in the Sun Fire V490 Server Setup and Rackmounting Guide. What to Do 1. Locate the RJ-45 twisted-pair Ethernet (TPE) connector for the appropriate Ethernet interface—the top connector or the bottom connector.
Page 157: How To Access The System Console Via Tip Connection
The following procedure assumes you are connecting to the serial port (ttya) of the Sun Fire V490 system using a tip connection from serial port B (ttyb) of another Sun server, and that the other Sun server has its own local graphics terminal.
Page 158 The Sun server responds by displaying: connected The terminal tool is now a tip window directed to the Sun Fire V490 system via the Sun server’s ttyb port. This connection is established and maintained even if the Sun Fire V490 system is completely powered off or just starting up.
Page 159: How To Modify The /Etc/Remote File
Before You Begin This procedure assumes you are connecting via tip line from serial port B (ttyb) of a Sun server to the serial port (ttya) of the Sun Fire V490 machine. What to Do 1. Determine the release level of system software installed on the Sun server.
Page 160: How To Verify Serial Port Settings
This procedure lets you verify the baud rate and other serial port settings used by the Sun Fire V490 server to communicate with attached serial port devices. Before You Begin You must be logged in to the Sun Fire V490 server, and the server must be running Solaris OS software. What to Do 1.
Page 161: How To Set Up An Alphanumeric Terminal As The System Console
2. Type: # eeprom ttya-mode 3. Look for the following output: ttya-mode = 9600,8,n,1,- This line indicates that the Sun Fire V490 server’s serial port is configured for: 9600 baud 8 bits No parity 1 stop bit No handshake protocol What Next For more information about serial port settings, see the eeprom man page.
Page 162 Use an RJ-45 null modem serial cable or an RJ-45 serial cable and null modem adapter. Plug this into the terminal’s serial port connector. 2. Attach the opposite end of the serial cable to the Sun Fire V490 system. Plug the cable into the system’s built-in serial port (ttya) connector.
Page 163: How To Configure A Local Graphics Terminal As The System Console
Note – Do not attempt to access any internal components unless you are a qualified service technician. Detailed service instructions can be found in the Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD.
Page 164 1. Install the graphics card into an appropriate PCI slot. Installation must be performed by a qualified service provider. For further information, see the Sun Fire V490 Server Parts Installation and Removal Guide or contact your qualified service provider. 2. Attach the monitor video cable to the graphics card’s video port.
Page 165 5. Connect the mouse USB cable to any USB port on the back panel. 6. Set OpenBoot configuration variables appropriately. From the existing system console, type: ok setenv diag-out-console false ok setenv input-device keyboard ok setenv output-device screen Chapter 7 Configuring Console Access...
Page 166: How To Initiate A Reconfiguration Boot
Installed or removed as part of a hot-plug or hot-swap operation Installed or removed before the operating system is installed Installed as an identical replacement for a component that is already recognized by the operating system Sun Fire V490 Server Administration Guide • August 2004...
Page 167 To issue software commands, you need to set up a system ASCII terminal, a local graphics terminal, or a tip connection to the Sun Fire V490 system. See: “How to Set Up an Alphanumeric Terminal as the System Console” on page 133 “How to Configure a Local Graphics Terminal as the System Console”...
Page 168 This prevents anyone from accidentally powering off the system. What Next The system’s front panel LED indicators provide power-on status information. For more information about the system LEDs, see: “LED Status Indicators” on page 13 Sun Fire V490 Server Administration Guide • August 2004 File and args:...
Page 169: Reference For System Console Openboot Variable Settings
Reference for System Console OpenBoot Variable Settings Certain OpenBoot configuration variables control from where system console input is taken and to where its output is directed. The table below shows how to set these variables in order to use ttya, the system controller, or a local graphics terminal as the system console.
Page 170 Sun Fire V490 Server Administration Guide • August 2004...
Page 171: Configuring Network Interfaces And The Boot Device
Caution – Do not attempt to access any internal components unless you are a qualified service technician. Detailed service instructions can be found in the Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD.
Page 172: How To Configure The Primary Network Interface
(-). Do not use a dot in the host name. Do not begin the name with a number or a special character. The name must not be longer than 30 characters. Sun Fire V490 Server Administration Guide • August 2004 PCI Bus/Clock Rate OpenBoot devalias...
Page 173 4. Determine the unique Internet Protocol (IP) address of the network interface and make a note of it. You need to furnish the address in a later step. An IP address must be assigned by the network administrator. Each network device or interface must have a unique IP address.
Page 174: How To Configure Additional Network Interfaces
Note – The Sun Fire V490 system conforms to the Ethernet 10/100BASE-T standard, which states that the Ethernet 10BASE-T link integrity test function should always be enabled on both the host system and the Ethernet hub. If you have problems establishing a connection between this system and your hub, verify that the Ethernet hub also has the link test function enabled.
Page 175 What to Do 1. Choose a network host name for each new interface. The host name must be unique within the network. It can consist only of alphanumeric characters and the dash (-). Do not use a dot in the host name. Do not begin the name with a number or a special character.
Page 176 7. Manually plumb and enable each new interface using the ifconfig command. For example, for the interface ce2, type: sunrise # ifconfig ce2 plumb up For more information, see the ifconfig(1M) man page. Sun Fire V490 Server Administration Guide • August 2004 cat /etc/hostname.ce0 cat /etc/hostname.ce1 cat /etc/hostname.ce2...
Page 177: How To Select The Boot Device
This document is available on the Solaris Software Supplement CD for your specific Solaris release. Note – The Sun Fire V490 system conforms to the Ethernet 10/100BASE-T standard, which states that the Ethernet 10BASE-T link integrity test function should always be enabled on both the host system and the Ethernet hub.
Page 178 Note – You can also specify the name of the program to be booted as well as the way the boot program operates. For more information, see the OpenBoot 4.x Command Reference Manual, included with the Solaris Software Supplement CD that ships with Solaris software. Sun Fire V490 Server Administration Guide • August 2004...
Page 179 If you want to specify a network interface other than an on-board Ethernet interface as the default boot device, you can determine the full path name of each interface by typing: ok show-devs The show-devs command lists the system devices and displays the full path name of each PCI device.
Page 180 Sun Fire V490 Server Administration Guide • August 2004...
Page 181: Configuring System Firmware
C H A P T E R Configuring System Firmware This chapter describes OpenBoot firmware commands and configuration variables available for configuring the following aspects of Sun Fire V490 system behavior: OpenBoot environmental monitoring Automatic system recovery (ASR) In addition, this chapter provides information about keyboard commands and alternative methods for performing OpenBoot emergency procedures.
Page 182: How To Enable Openboot Environmental Monitoring
“How to Disable OpenBoot Environmental Monitoring” on page 154 How to Disable OpenBoot Environmental Monitoring Before You Begin For background information about the OpenBoot environmental monitor, see: “About OpenBoot Environmental Monitoring” on page 52 Sun Fire V490 Server Administration Guide • August 2004...
Page 183: How To Obtain Openboot Environmental Status Information
What to Do To disable OpenBoot environmental monitoring, type env-off at the ok prompt: ok env-off Environmental monitor is OFF How to Obtain OpenBoot Environmental Status Information Before You Begin For background information about environmental status information, see: “OpenBoot Environmental Status Information” on page 53 What to Do To obtain OpenBoot environmental status information, type .env at the ok prompt:...
Page 184: How To Enable The Watchdog Mechanism And Its Options
To reboot and generate an automated crash dump file, type: # eeprom error-reset-recovery=sync To have the system not automatically reboot, but rather wait at the OpenBoot prompt for manual intervention and recovery, type: # eeprom error-reset-recovery=none Sun Fire V490 Server Administration Guide • August 2004...
Page 185: How To Enable Asr
3. Restart the system to effect the changes. Type: # reboot What Next If you choose to have the system generate an automated crash dump file, then, in the event the operating system hangs, that file appears in the /var/crash/ directory, under a subdirectory named after your system.
Page 186: How To Disable Asr
The system permanently stores the parameter change. How to Obtain ASR Status Information Use the following procedure to retrieve information about the status of the automatic system recovery (ASR) feature. Sun Fire V490 Server Administration Guide • August 2004...
Page 187: How To Redirect The System Console To The System Controller
What to Do 1. At the system ok prompt, type: ok .asr In the .asr command output, any devices marked disabled have been manually deconfigured using the asr-disable command. The .asr command also lists devices that have failed firmware diagnostics and have been automatically deconfigured by the OpenBoot ASR feature.
Page 188 Console” on page 161. What Next For instructions on how to use RSC software, see: Sun Remote System Controller (RSC) User’s Guide, which is included on the Sun Fire V490 Documentation CD Sun Fire V490 Server Administration Guide • August 2004...
Page 189: How To Restore The Local System Console
How to Restore the Local System Console Perform this procedure if your system is configured to use the system controller (SC) as the system console and you need to redirect the system console to a local graphics terminal, alphanumeric terminal, or an established tip connection. For more information about RSC software, see: “About the System Controller (SC) Card”...
Page 190: How To Deconfigure A Device Manually
Note – Manually deconfiguring a single processor causes the entire CPU/Memory board to be deconfigured, including all processors and all memory residing on the board. OpenBoot configuration variable changes take effect after the next system reset. Sun Fire V490 Server Administration Guide • August 2004...
Page 191: How To Reconfigure A Device Manually
2. To effect the changes immediately, type: ok reset-all Note – To immediately effect the changes, you can also power cycle the system using the front panel Power button How to Reconfigure a Device Manually Before You Begin You can use the OpenBoot asr-enable command to reconfigure any device that you previously deconfigured with asr-disable.
Page 192: How To Implement Stop-N Functionality
2. Wait until only the system Fault LED begins to blink rapidly. Note – If you have configured the Sun Fire V490 system to run diagnostic tests, this could take upwards of 30 minutes. Sun Fire V490 Server Administration Guide • August 2004...
Page 193 OpenBoot configuration variables to their default values: Setting NVRAM parameters to default values. Probing I/O buses Sun Fire V490, No Keyboard Copyright 1998-2004 Sun Microsystems, Inc. OpenBoot x.x, xxxx MB memory installed, Serial #xxxxxxxx. Ethernet address x:x:x:x:x:x, Host ID: xxxxxxxx.
Page 194 To correct such problems, you must either manually change individual OpenBoot configuration variables using the setenv command, or else type set-defaults to permanently restore the default settings for all OpenBoot configuration variables. Sun Fire V490 Server Administration Guide • August 2004...
Page 195: Isolating Failed Parts
This chapter guides you in choosing the best tools and describes how to use these tools to reveal a failed part in your Sun Fire V490 server. It also explains how to use the Locator LED to isolate a failed system in a large equipment room.
Page 196: How To Operate The Locator Led
Locator LED on and off. Consult Sun Management Center documentation for details. Before You Begin Either log in as root, or access the RSC software’s graphical user interface. What to Do 1. Turn the Locator LED on. Do one of the following: Sun Fire V490 Server Administration Guide • August 2004...
Page 197 As root, type # /usr/sbin/locator -n At the SC command-line interface, type: rsc> setlocator on From the RSC software’s main GUI screen, click the representation of the Locator LED. See the illustration under Step 5 in “How to Monitor the System Using the System Controller and RSC Software.
Page 198: How To Put The Server In Service Mode
POST and OpenBoot Diagnostics tests do run during startup. For a full description of service mode, see: OpenBoot PROM Enhancements for Diagnostic Operation This document is included on the Sun Fire V490 Documentation CD. What to Do 1. Set up a console for viewing diagnostic messages.
Page 199: How To Put The Server In Normal Mode
What Next Should you want to restore the system to normal mode in order to control the depth of diagnostic coverage, the tests run, and the verbosity of the output, see: “How to Put the Server in Normal Mode” on page 171. How to Put the Server in Normal Mode Before You Begin If you have set the server to run in service mode, you can follow this procedure to...
Page 200: How To Isolate Faults Using Leds
For detailed descriptions of service and normal modes, see: OpenBoot PROM Enhancements for Diagnostic Operation This document is included on the Sun Fire V490 Documentation CD. How to Isolate Faults Using LEDs While not a deep, formal diagnostic tool, LEDs located on the chassis and on selected system components can serve as front-line indicators of a limited set of hardware failures.
Page 201 What to Do 1. Check the system LEDs. There is a group of three LEDs located near the top left corner of the front panel and duplicated on the back panel. Their status can tell you the following. Indicates Locator (left) A system administrator can turn this on to flag a system that needs attention.
Page 202 There are two LEDs for each Ethernet port—they are close to the right side of each Ethernet receptacle on the back panel. If the Sun Fire V490 system is connected to an Ethernet network, the status of the Ethernet LEDs can tell you the following.
Page 203: How To Isolate Faults Using Post Diagnostics
What to Do 1. Set up a console for viewing POST messages. Connect an alphanumeric terminal to the Sun Fire V490 server or establish a tip connection to another Sun system. See: “How to Set Up an Alphanumeric Terminal as the System Console” on page 133 “How to Access the System Console via tip Connection”...
Page 204 Have a qualified service technician replace the FRU or FRUs indicated by POST error messages, if any. For replacement instructions, see: Sun Fire V490 Server Parts Installation and Removal Guide, which is included on the Sun Fire V490 Documentation CD If the POST diagnostics did not disclose any problems, but your system does not start, try running the interactive OpenBoot Diagnostics tests.
Page 205: How To Isolate Faults Using Interactive Openboot Diagnostics Tests
How to Isolate Faults Using Interactive OpenBoot Diagnostics Tests Before You Begin Because OpenBoot Diagnostics tests require access to some of the same hardware resources used by the operating system, they cannot be operated reliably after an operating system halt or Stop-A key sequence. You need to reset the system before running OpenBoot Diagnostics tests, and then reset the system again after testing.
Page 206 Have a qualified service technician replace the FRU or FRUs indicated by OpenBoot Diagnostics error messages, if any. For replacement instructions, see: Sun Fire V490 Server Parts Installation and Removal Guide This document is included on the Sun Fire V490 Documentation CD. Sun Fire V490 Server Administration Guide • August 2004 Type:...
Page 207: How To View Diagnostic Test Results After The Fact
How to View Diagnostic Test Results After the Fact Summaries of the results from the most recent power-on self-test (POST) and OpenBoot Diagnostics tests are saved across power cycles. Before You Begin You must set up a system console. See: “About Communicating With the System”...
Page 208: How To View And Set Openboot Configuration Variables
To set or change the value of an OpenBoot configuration variable, use the setenv command: ok setenv diag-level max diag-level = max Sun Fire V490 Server Administration Guide • August 2004 TABLE 6-2 Value false Default Value false...
Page 209: Reference For Choosing A Fault Isolation Tool
Reference for Choosing a Fault Isolation Tool This section helps you choose the right tool to isolate a failed part in a Sun Fire V490 system. Consider the following questions when selecting a tool. 1. Have you checked the LEDs? Certain system components have built-in LEDs that can alert you when that component requires replacement.
Page 210: Figure 10-1 Choosing A Tool To Isolate Hardware Faults
POST diagnostics—that usually require physical proximity to the serial port on the system’s back panel. Sun Fire V490 Server Administration Guide • August 2004 Fault LED lit Replace part...
Page 211 5. Will the tool test the suspected source(s) of the problem? Perhaps you already have some idea of what the problem is. If so, you want to use a diagnostic tool capable of testing the suspected problem sources. tells you which replaceable hardware parts can be isolated by each TABLE 6-5 fault isolating tool.
Page 212 Sun Fire V490 Server Administration Guide • August 2004...
Page 213: Monitoring The System
C H A P T E R Monitoring the System When something goes wrong with the system, diagnostic tools can help you determine what caused the problem. Indeed, this is the principal use of most diagnostic tools. However, this approach is inherently reactive. It means waiting until a component fails outright.
Page 214: How To Monitor The System Using Sun Management Center Software
Before You Begin This procedure assumes you intend to load Sun Management Center agent software on your Sun Fire V490 system so as to be able to monitor it, and gives you some guidance on how to accomplish this goal.
Page 215 1. On your Sun Fire V490 system, install Sun Management Center agent software. For instructions, see the Sun Management Center Supplement for Workgroup Servers. 2. On your Sun Fire V490 system, run the setup utility to configure agent software. The setup utility is part of the workgroup server supplement. For more information, see the Sun Management Center Supplement for Workgroup Servers.
Page 216 For more information about physical and logical views, see the Sun Management Center User’s Guide. Sun Fire V490 Server Administration Guide • August 2004 Photo-realistic view (front) Highlighted component...
Page 217 7. Monitor the Sun Fire V490 system using Config-Reader module data property tables. To access this information: a. Click the Browser tab. b. Click the Hardware icon in the hierarchy view. c. Click the Config-Reader icon in the hierarchy view.
Page 218: How To Monitor The System Using The System Controller And Rsc Software
Before You Begin The Sun Fire V490 server must be set up with RSC server software, which can be found on the Solaris Software Supplement CD. Typically, you monitor the Sun Fire V490 system from a different Sun computer or a PC. This procedure assumes you have installed RSC client software on the monitoring system.
Page 219 What to Do 1. As root on the Sun Fire V490 server, run the RSC configuration script. Type: # /usr/platform/‘uname -i‘/rsc/rsc-config The configuration script runs, prompting you to choose options and to provide information. 2. Follow the configuration script prompts.
Page 220 Setting User Password Now ... Password: Re-enter Password: The RSC firmware on the Sun Fire V490 system is configured. Perform the following steps on the monitoring system. 3. From the monitoring Sun computer or PC, start the RSC GUI. Do one of the following.
Page 221 The main screen of the GUI appears. 5. Note the main screen’s features. The left side of the main screen provides help text and navigation controls. The right side shows a representation of the Sun Fire V490 server’s front panel and system control switch. Navigation and...
Page 222 Proceeding will actually turn system power off (or on). b. Examine status tables for the Sun Fire V490 server’s disks and fans. Click the appropriate LEDs. A table appears giving you the status of the components in question.
Page 223 7. Check system temperatures and other environmental data. To do this: a. Find the navigation panel at the left side of the RSC GUI. b. Click the Show Environmental Status item under Server Status and Control. The Environmental Status window appears. Check marks By default, the Temperatures tab is selected and temperature data from specific chassis locations are graphed.
Page 224 System Controller” on page 159. What Next If you plan to use RSC software to control the Sun Fire V490 server, you may want to configure additional RSC user accounts. If you want to try the system controller command-line interface, you can use the telnet command to connect directly to the RSC card using the device’s name or IP...
Page 225: How To Use Solaris System Information Commands
Step 1 of this procedure. For information about RSC configuration, user accounts, and alerts, see: Sun Remote System Controller (RSC) User’s Guide This document is included on the Sun Fire V490 Documentation CD. How to Use Solaris System Information Commands This section explains how to run Solaris system information commands on a Sun Fire V490 server.
Page 226: How To Use Openboot Information Commands
This section explains how to run OpenBoot commands that display different kinds of system information about a Sun Fire V490 server. To find out what these commands tell you, see “Other OpenBoot Commands” on page 90, or refer to the appropriate man pages.
Page 227: Table 11-2 Using Openboot Information Commands
3. Type the appropriate command at a console prompt. See Using OpenBoot Information Commands TABLE 11-2 Command to Type What It Displays Fan speeds, currents, voltages, and temperatures .env OpenBoot configuration variable defaults and settings printenv Target address, unit number, device type, and manufacturer name probe-scsi of active SCSI, IDE, and FC-AL devices probe-scsi-all...
Page 228 Sun Fire V490 Server Administration Guide • August 2004...
Page 229: Exercising The System
Sun Management Center Software User’s Guide. This chapter describes the tasks necessary to use SunVTS software to exercise your Sun Fire V490 server. These include: “How to Exercise the System Using SunVTS Software” on page 202 “How to Check Whether SunVTS Software Is Installed”...
Page 230: How To Exercise The System Using Sunvts Software
Functional mode. For a synopsis of the modes, see: “Exercising the System Using SunVTS Software” on page 106 This procedure also assumes that the Sun Fire V490 server is “headless”—that is, it is not equipped with a monitor capable of displaying bitmapped graphics. In this case, you access the SunVTS GUI by logging in remotely from a machine that has a graphics display.
Page 231 2. Enable remote display. On the display system, type: # /usr/openwin/bin/xhost + test-system where test-system is the name of the Sun Fire V490 server being tested. 3. Remotely log in to the Sun Fire V490 server as superuser. Use a command such as rlogin or telnet.
Page 232 5. Expand the test lists to see the individual tests. The interface’s test selection area lists tests in categories, such as “Network,” as shown below. To expand a category, click the Sun Fire V490 Server Administration Guide • August 2004 Log button Start and Stop buttons...
Page 233: Table 12-1 Useful Sunvts Tests To Run On A Sun Fire V490 Server
Tests are enabled when checked, and disabled when not checked. lists tests that are especially useful to run on a Sun Fire V490 server. TABLE 12-1 Useful SunVTS Tests to Run on a Sun Fire V490 Server...
Page 234: How To Check Whether Sunvts Software Is Installed
Solaris 8 software. This procedure assume that the Solaris operating system is running on the Sun Fire V490 server, and that you have access to the Solaris command line. For more information, see: Sun Fire V490 Server Administration Guide • August 2004...
Page 235 “About Communicating With the System” on page 69 What to Do 1. Check for the presence of SunVTS packages. Type: % pkginfo -l SUNWvts SUNWvtsx SUNWvtsmn If SunVTS software is loaded, information about the packages is displayed. If SunVTS software is not loaded, you see an error message for each missing package.
Page 236 What Next For installation information, refer to the SunVTS User’s Guide, the appropriate Solaris documentation, and the pkgadd man page. Sun Fire V490 Server Administration Guide • August 2004 Description XML library (32-bit) XML library (64-bit)
Page 237: Connector Pinouts
A P P E N D I X Connector Pinouts This appendix gives you reference information about the system’s back panel ports and pin assignments. Topics covered in this appendix include: “Serial Port Connector” on page 210 “USB Connector” on page 211 “Twisted-Pair Ethernet Connector”...
Page 238: Serial Port Connector
Serial Port Connector Diagram Serial Port Connector Signals Signal Description Request To Send Data Terminal Ready Transmit Data Ground Sun Fire V490 Server Administration Guide • August 2004 Signal Description Ground Receive Data Data Set Ready Clear To Send...
Page 239: Usb Connector
USB Connector Two Universal Serial Bus (USB) connectors are located on the centerplane and can be accessed from the back panel. USB Connector Diagram USB Connector Signals Signal Description +5 VDC Port Data0 - Port Data0 + Ground Signal Description +5 VDC Port Data1 - Port Data1 +...
Page 240: Twisted-Pair Ethernet Connector
TPE Connector Signals Signal Description Transmit/Receive Data0 + Transmit/Receive Data0 – Transmit/Receive Data1 + Transmit/Receive Data2 + Sun Fire V490 Server Administration Guide • August 2004 Signal Description Transmit/Receive Data2 – Transmit/Receive Data1 – Transmit/Receive Data3 + Transmit/Receive Data3 –...
Page 241: Sc Ethernet Connector
SC Ethernet Connector The System Controller (SC) Ethernet connector is an RJ-45 connector located on the SC card and can be accessed from the back panel. SC Ethernet Connector Diagram SC Ethernet Connector Signals Signal Description Transmit/Receive Data0 + Transmit/Receive Data0 - Trandmit/Receive Data1 + Trandmit/Receive Data2 + Signal Description...
Page 242: Sc Serial Connector
The System Controller (SC) serial connector is an RJ-45 connector located on the SC card and can be accessed from the back panel. SC Serial Connector Diagram SC Serial Connector Signals Sun Fire V490 Server Administration Guide • August 2004 SERIAL Signal Description Request To Send...
Page 243: Fc-Al Port Hssdc Connector
FC-AL Port HSSDC Connector The Fibre Channel-Arbitrated Loop port high-speed serial data connector is located on the centerplane and can be accessed from the back panel. HSSDC Connector Diagram HSSDC Connector Signal Signal Description Differential Data Output + Signal Ground (optional) Differential Data Output - Mode Fault Detection (optional)
Page 244 Sun Fire V490 Server Administration Guide • August 2004...
Page 245: System Specifications
A P P E N D I X System Specifications This appendix provides the following specifications for the Sun Fire V490 Server server: “Physical Specifications” on page 217 “Electrical Specifications” on page 218 “Environmental Specifications” on page 219 “Agency Compliance Specifications” on page 220 “Clearance and Service Access Specifications”...
Page 246: Electrical Specifications
Nominal Frequencies Nominal Voltage Range Maximum Current AC RMS Maximum AC Power Consumption Maximum Heat Dissipation Sun Fire V490 Server Administration Guide • August 2004 Value 50 or 60 Hz Auto Ranging 200-240 VAC 8A @ 200-240 VAC 1600 W...
Page 247: Environmental Specifications
Environmental Specifications The operating and non-operating environmental specifications for the system are as follows. Parameter Value Operating Temperature 5˚ C to 35˚C (41˚F to 95˚F)—IEC 60068-2-1&2 Humidity 20% to 80% RH noncondensing; 27˚C (81˚F) wet bulb— IEC 60068-2-3&56 Altitude 0 to 3000 meters (0 to 10,000 feet)—IEC 60068-2-13 Vibration .0001 (z-axis only) G 150-500 Hz—...
Page 248: Agency Compliance Specifications
Rear blockage only Front and rear blockage Front clearance Rear clearance Sun Fire V490 Server Administration Guide • August 2004 Relevant Standards UL 60950, CB Scheme IEC 60950, CSA C22.2 No. 60950-00 from UL, TUV EN 60950 47 CFR 15B Class A...
Page 249: Safety Precautions
A P P E N D I X Safety Precautions Read this section before beginning any procedure. The following text provides safety precautions to follow when installing a Sun Microsystems product. Safety Precautions For your protection, observe the following safety precautions when setting up your equipment: Follow all cautions and instructions marked on the equipment.
Page 250: Placement Of A Sun Product
Standby – The On/Standby switch is in the standby position. Modifications to Equipment Do not make mechanical or electrical modifications to the equipment. Sun Microsystems is not responsible for regulatory compliance of a modified Sun product. Placement of a Sun Product Caution –...
Page 251: Power Cord Connection
Power Cord Connection Caution – Sun products are designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electric shock, do not plug Sun products into any other type of power system. Contact your facilities manager or a qualified electrician if you are not sure what type of power is supplied to your building.
Page 252: Lithium Battery
System Unit Access Panels You must remove the access panels of your Sun Fire V490 Server to add cards or memory. Be sure to replace and secure the access panels before powering on your system. Caution – Do not operate your system while the access panels are removed.
Page 253: Laser Compliance Notice
Laser Compliance Notice Sun products that use laser technology comply with Class 1 laser requirements. CD-ROM Caution – Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Class 1 Laser Product Luokan 1 Laserlaite Klasse 1 Laser Apparat Laser KLasse 1...
Page 254: Einhaltung Sicherheitsbehördlicher Vorschriften
/Wartezustand-Schalter steht auf Wartezustand. Änderungen an Sun-Geräten. Nehmen Sie keine mechanischen oder elektrischen Änderungen an den Geräten vor. Sun Microsystems, übernimmt bei einem Sun-Produkt, das geändert wurde, keine Verantwortung für die Einhaltung behördlicher Vorschriften Sun Fire V490 Server Administration Guide • August 2004...
Page 255: Aufstellung Von Sun-Geräten
Aufstellung von Sun-Geräten Achtung – Um den zuverlässigen Betrieb Ihres Sun-Geräts zu gewährleisten und es vor Überhitzung zu schützen, dürfen die Öffnungen im Gerät nicht blockiert oder verdeckt werden. Sun-Produkte sollten niemals in der Nähe von Heizkörpern oder Heizluftklappen aufgestellt werden. Achtung –...
Page 256 Massenspeicher hinzuzufügen. Bringen Sie die obere Gehäuseabdeckung wieder an, bevor Sie Ihr System einschalten. Achtung – Bei Betrieb des Systems ohne obere Abdeckung besteht die Gefahr von Stromschlag und Systemschäden. Sun Fire V490 Server Administration Guide • August 2004...
Page 257: Einhaltung Der Richtlinien Für Laser
Strahlungen zur Folge haben. Conformité aux normes de sécurité Ce texte traite des mesures de sécurité qu’il convient de prendre pour l’installation d’un produit Sun Microsystems. Mesures de sécurité Pour votre protection, veuillez prendre les précautions suivantes pendant l’installation du matériel : Suivre tous les avertissements et toutes les instructions inscrites sur le matériel.
Page 258: Modification Du Matériel
Marche/Veilleuse est en position « Veilleuse ». Modification du matériel Ne pas apporter de modification mécanique ou électrique au matériel. Sun Microsystems n’est pas responsable de la conformité réglementaire d’un produit Sun qui a été modifié. Positionnement d’un produit Sun Attention: –...
Page 259: Connexion Du Cordon D'alimentation
Connexion du cordon d’alimentation Attention: – les produits Sun sont conçus pour fonctionner avec des alimentations monophasées munies d’un conducteur neutre mis à la terre. Pour écarter les risques d’électrocution, ne pas brancher de produit Sun dans un autre type d’alimentation secteur. En cas de doute quant au type d’alimentation électrique du local, veuillez vous adresser au directeur de l’exploitation ou à...
Page 260: Batterie Au Lithium
à des radiations dangereuses. Sun Fire V490 Server Administration Guide • August 2004 Class 1 Laser Product Luokan 1 Laserlaite Klasse 1 Laser Apparat...
Page 261: Precauciones De Seguridad
Normativas de seguridad El siguiente texto incluye las medidas de seguridad que se deben seguir cuando se instale algún producto de Sun Microsystems. Precauciones de seguridad Para su protección observe las siguientes medidas de seguridad cuando manipule su equipo: Siga todas los avisos e instrucciones marcados en el equipo. Asegúrese de que el voltaje y la frecuencia de la red eléctrica concuerdan con las descritas en las etiquetas de especificaciones eléctricas del equipo.
Page 262: Cumplimiento De La Normativa Selv
Modificaciones en el equipo No realice modificaciones de tipo mecánico o eléctrico en el equipo. Sun Microsystems no se hace responsable del cumplimiento de las normativas de seguridad en los equipos Sun modificados. Ubicación de un producto Sun Precaución – Para asegurar la fiabilidad de...
Page 263: Tapa De La Unidad Del Sistema
Precaución – Para eliminar completamente la alimentación de esta unidad, desconecte todos los cables de alimentación. La siguiente advertencia se aplica solamente a equipos con un interruptor de encendido que tenga una posición "En espera": Precaución – El interruptor de encendido de este producto funciona exclusivamente como un dispositivo de puesta en espera.
Page 264: Aviso De Cumplimiento Con Requisitos De Láser
Precaución – El manejo de los controles, los ajustes o la ejecución de procedimientos distintos a los aquí especificados pueden exponer al usuario a radiaciones peligrosas. Sun Fire V490 Server Administration Guide • August 2004 Class 1 Laser Product Luokan 1 Laserlaite Klasse 1 Laser Apparat...
Page 265: Nordic Lithium Battery Cautions
GOST-R Certification Mark Nordic Lithium Battery Cautions Norge ADVARSEL – Litiumbatteri — Eksplosjonsfare.Ved utskifting benyttes kun batteri som anbefalt av apparatfabrikanten. Brukt batteri returneres apparatleverandøren. Sverige VARNING – Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren.
Page 266 Sun Fire V490 Server Administration Guide • August 2004...
Page 267: Index
Index AC Present LED (power supply), 173 accounts RSC, 191 Activity LED disk drive, 174 Ethernet, 174 address bitwalk (POST diagnostic), 80 of I C devices (table), 111 agency compliance specifications, 220 agents, Sun Management Center, 103 alphanumeric terminal attaching, 133 baud verification, 132 setting up as system console, 133 settings for, 133...
Page 268 29 disk configuration concatenation, 67 hot plug, 45 hot spares, 68 Sun Fire V490 Server Administration Guide • August 2004 mirroring, 24, 66 RAID 0, 24, 67 RAID 1, 24, 67 RAID 5, 24, 68 striping, 24, 67...
Page 269 with SunVTS, 106, 202 externally initiated reset (XIR), 51, 127 described, 23 manual command, 23 displaying speed of, 90 Fan Tray 0 isolating faults in cable, 101 Fan Tray 0 LED described, 14 Fan Tray 1 LED described, 14 fan tray assembly, 39 configuration rule, 41 illustration, 40 LEDs, 14...
Page 270 LEDs AC Present (power supply), 173 Activity (disk drive), 174 Activity (Ethernet), 174 back panel, 17 Sun Fire V490 Server Administration Guide • August 2004 back panel, described, 18 DC Present (power supply), 173 disk drive, 14 Activity, described, 14...
Page 271 manual hardware reset, 127 manual system reset, 51 master CPU, 78, 80 memory interleaving, 30 mirroring, disk, 24, 66 monitor, attaching, 136 monitoring the system with RSC, 190 moving the system, precautions, 122 MPxIO (multiplexed I/O) features, 21 network name server, 149 primary interface, 145 types, 4 OBDIAG, See OpenBoot Diagnostics tests...
Page 272 (Solaris), 97 psrinfo command (Solaris), 98 reconfiguration boot, initiating, 138 reliability, availability, and serviceability (RAS), 19, Sun Fire V490 Server Administration Guide • August 2004 remote system control, see RSC Removable media bay board and cable assembly isolating faults in, 101...
Page 273 shipping (what you should receive), 1 show-devs command, 60, 151 show-devs command (OpenBoot), 92 showrev command (Solaris), 98 shutdown, 125 shutdown command (Solaris), 50, 127 software revision, displaying with showrev, 98 Solaris commands fsck, 51 halt, 50, 127 init, 50, 127 prtconf, 94 prtdiag, 94 prtfru, 97...
Page 274 132 voltages, displaying system, 90 warnings and cautions, 221, 237 watchdog, hardware described, 23 World Wide Name (probe-scsi), 91 XIR (externally initiated reset), 51, 127 described, 23 manual command, 23 Sun Fire V490 Server Administration Guide • August 2004...
