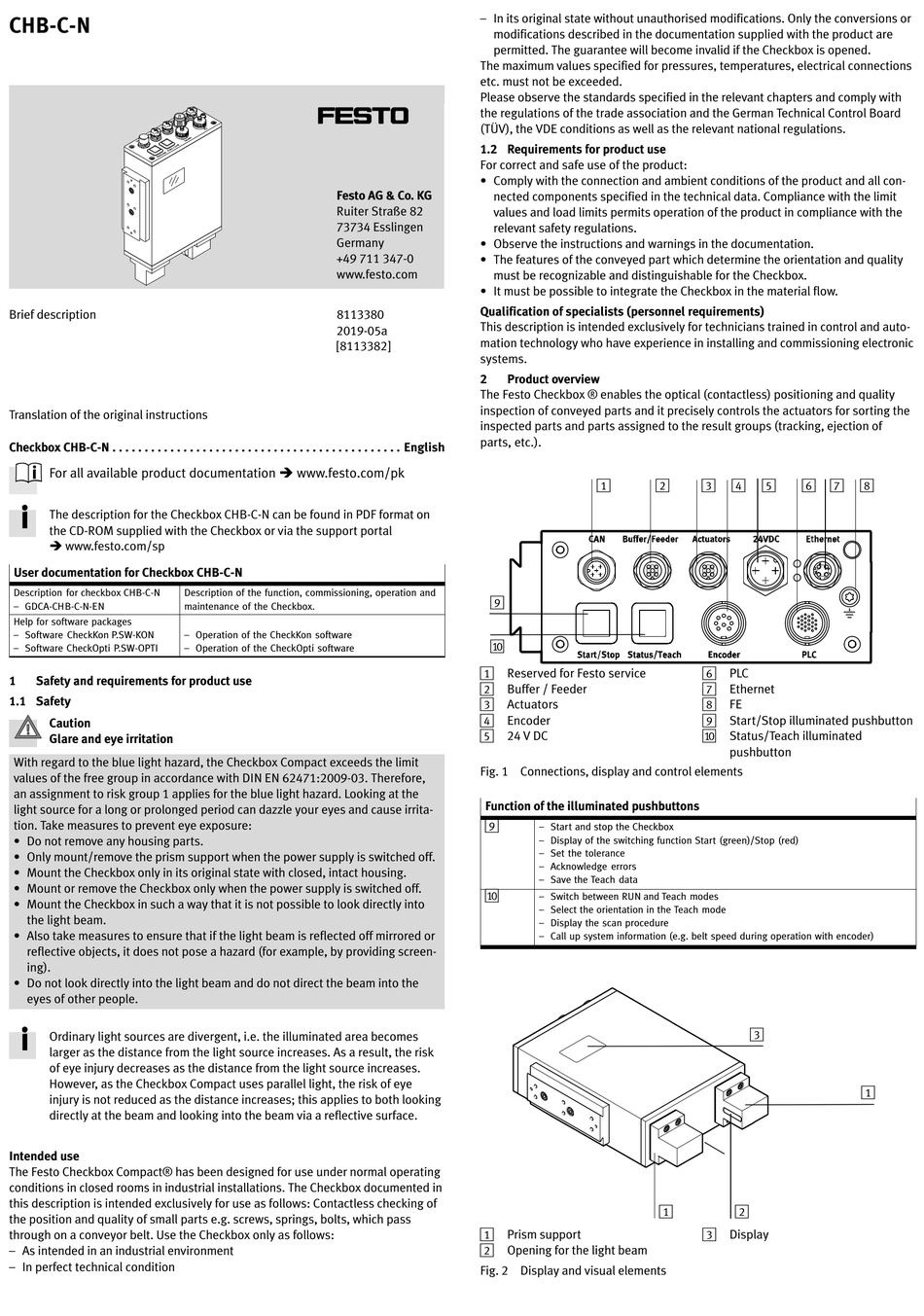

CHB-C-N
Brief description
Translation of the original instructions
Checkbox CHB-C-N
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For all available product documentation è www.festo.com/pk
The description for the Checkbox CHB-C-N can be found in PDF format on
the CD-ROM supplied with the Checkbox or via the support portal
è www.festo.com/sp
User documentation for Checkbox CHB-C-N
Description for checkbox CHB-C-N
– GDCA-CHB-C-N-EN
Help for software packages
– Software CheckKon P.SW-KON
– Software CheckOpti P.SW-OPTI
1
Safety and requirements for product use
1.1 Safety
Caution
Glare and eye irritation
With regard to the blue light hazard, the Checkbox Compact exceeds the limit
values of the free group in accordance with DIN EN 62471:2009-03. Therefore,
an assignment to risk group 1 applies for the blue light hazard. Looking at the
light source for a long or prolonged period can dazzle your eyes and cause irrita­
tion. Take measures to prevent eye exposure:
• Do not remove any housing parts.
• Only mount/remove the prism support when the power supply is switched off.
• Mount the Checkbox only in its original state with closed, intact housing.
• Mount or remove the Checkbox only when the power supply is switched off.
• Mount the Checkbox in such a way that it is not possible to look directly into
the light beam.
• Also take measures to ensure that if the light beam is reflected off mirrored or
reflective objects, it does not pose a hazard (for example, by providing screen­
ing).
• Do not look directly into the light beam and do not direct the beam into the
eyes of other people.
Ordinary light sources are divergent, i.e. the illuminated area becomes
larger as the distance from the light source increases. As a result, the risk
of eye injury decreases as the distance from the light source increases.
However, as the Checkbox Compact uses parallel light, the risk of eye
injury is not reduced as the distance increases; this applies to both looking
directly at the beam and looking into the beam via a reflective surface.
Intended use
The Festo Checkbox Compact® has been designed for use under normal operating
conditions in closed rooms in industrial installations. The Checkbox documented in
this description is intended exclusively for use as follows: Contactless checking of
the position and quality of small parts e.g. screws, springs, bolts, which pass
through on a conveyor belt. Use the Checkbox only as follows:
– As intended in an industrial environment
– In perfect technical condition
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8113380
2019-05a
[8113382]
Description of the function, commissioning, operation and
maintenance of the Checkbox.
– Operation of the CheckKon software
– Operation of the CheckOpti software
– In its original state without unauthorised modifications. Only the conversions or
modifications described in the documentation supplied with the product are
permitted. The guarantee will become invalid if the Checkbox is opened.
The maximum values specified for pressures, temperatures, electrical connections
etc. must not be exceeded.
Please observe the standards specified in the relevant chapters and comply with
the regulations of the trade association and the German Technical Control Board
(TÜV), the VDE conditions as well as the relevant national regulations.
1.2 Requirements for product use
For correct and safe use of the product:
• Comply with the connection and ambient conditions of the product and all con­
nected components specified in the technical data. Compliance with the limit
values and load limits permits operation of the product in compliance with the
relevant safety regulations.
• Observe the instructions and warnings in the documentation.
• The features of the conveyed part which determine the orientation and quality
must be recognizable and distinguishable for the Checkbox.
• It must be possible to integrate the Checkbox in the material flow.
Qualification of specialists (personnel requirements)
This description is intended exclusively for technicians trained in control and auto­
mation technology who have experience in installing and commissioning electronic
systems.
2
Product overview
The Festo Checkbox ® enables the optical (contactless) positioning and quality
inspection of conveyed parts and it precisely controls the actuators for sorting the
inspected parts and parts assigned to the result groups (tracking, ejection of
parts, etc.).
English
9
aJ
1
Reserved for Festo service
2
Buffer / Feeder
3
Actuators
4
Encoder
5
24 V DC
Fig. 1 Connections, display and control elements
Function of the illuminated pushbuttons
9
– Start and stop the Checkbox
– Display of the switching function Start (green)/Stop (red)
– Set the tolerance
– Acknowledge errors
– Save the Teach data
aJ
– Switch between RUN and Teach modes
– Select the orientation in the Teach mode
– Display the scan procedure
– Call up system information (e.g. belt speed during operation with encoder)
1
Prism support
2
Opening for the light beam
Fig. 2 Display and visual elements
1
2
3
4
5
6
PLC
7
Ethernet
8
FE
9
Start/Stop illuminated pushbutton
aJ
Status/Teach illuminated
pushbutton
3
1
2
3
Display
6
7
8
1
