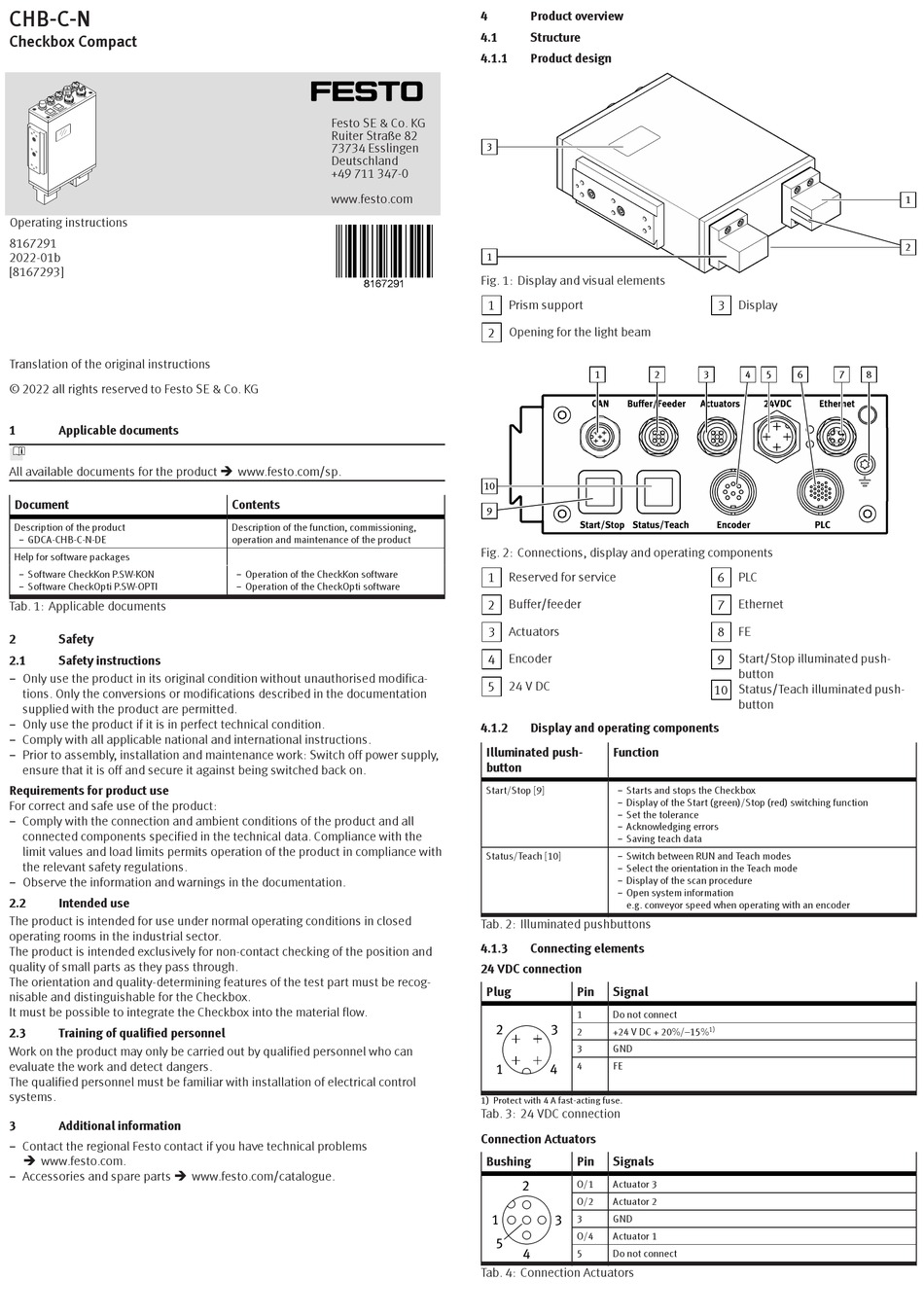

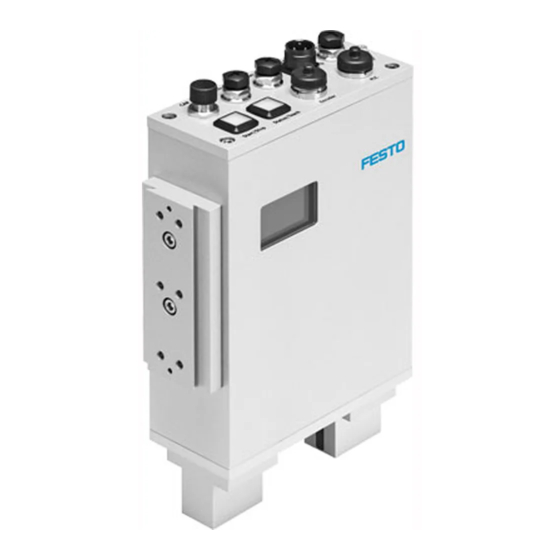

Festo Checkbox Compact Operating Instructions

CHB-C-N
Checkbox Compact
Operating instructions
8167291
2022-01b
[8167293]
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
1 Applicable documents
All available documents for the product è www.festo.com/sp.
Document
Description of the product
– GDCA-CHB-C-N-DE
Help for software packages
– Software CheckKon P.SW-KON
– Software CheckOpti P.SW-OPTI
Tab. 1: Applicable documents
2 Safety
2.1 Safety instructions
– Only use the product in its original condition without unauthorised modifica-
tions. Only the conversions or modifications described in the documentation
supplied with the product are permitted.
– Only use the product if it is in perfect technical condition.
– Comply with all applicable national and international instructions.
– Prior to assembly, installation and maintenance work: Switch off power supply,
ensure that it is off and secure it against being switched back on.
Requirements for product use
For correct and safe use of the product:
– Comply with the connection and ambient conditions of the product and all
connected components specified in the technical data. Compliance with the
limit values and load limits permits operation of the product in compliance with
the relevant safety regulations.
– Observe the information and warnings in the documentation.
2.2 Intended use
The product is intended for use under normal operating conditions in closed
operating rooms in the industrial sector.
The product is intended exclusively for non-contact checking of the position and
quality of small parts as they pass through.
The orientation and quality-determining features of the test part must be recog-
nisable and distinguishable for the Checkbox.
It must be possible to integrate the Checkbox into the material flow.
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers.
The qualified personnel must be familiar with installation of electrical control
systems.
3 Additional information
– Contact the regional Festo contact if you have technical problems
è www.festo.com.
– Accessories and spare parts è www.festo.com/catalogue.
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Contents
Description of the function, commissioning,
operation and maintenance of the product
– Operation of the CheckKon software
– Operation of the CheckOpti software
4 Product overview
4.1 Structure
4.1.1 Product design
3
1
Fig. 1: Display and visual elements
Prism support
1
Opening for the light beam
2
1 2
10
9
Fig. 2: Connections, display and operating components
1 Reserved for service
2 Buffer/feeder
3 Actuators
4 Encoder
5 24 V DC
4.1.2 Display and operating components
Illuminated push- Function
button
– Starts and stops the Checkbox
Start/Stop [9]
– Display of the Start (green)/Stop (red) switching function
– Set the tolerance
– Acknowledging errors
– Saving teach data
– Switch between RUN and Teach modes
Status/Teach [10]
– Select the orientation in the Teach mode
– Display of the scan procedure
– Open system information
e.g. conveyor speed when operating with an encoder
Tab. 2: Illuminated pushbuttons
4.1.3 Connecting elements
24 VDC connection
Plug Pin Signal
1 Do not connect
2 +24 V DC + 20%/–15%
3 GND
4 FE
1) Protect with 4 A fast-acting fuse.
Tab. 3: 24 VDC connection
Connection Actuators
Bushing Pin Signals
O/1 Actuator 3
O/2 Actuator 2
3 GND
O/4 Actuator 1
5 Do not connect
Tab. 4: Connection Actuators
Display
3
3 4 5 6 7 8
6 PLC
7 Ethernet
8 FE
9 Start/Stop illuminated push-
button
Status/Teach illuminated push-
10
button
1)
1
2
