Valor Retrofire RF24JB Installation & Owner's Manual

INSTALLATION & OWNER'S MANUAL
Gas Conversion Kits RA24JBNK / RA24JBPK
This appliance is certifi ed for use from 0-4500ft. For
altitudes above 4500ft see local codes.
Kit Contents
• 1 Pilot injector (see chart below)
• 1 Burner
• 1 Main burner injector (see chart below)
• 1 Minimum rate by-pass screw (see chart below)
• 1 Set of conversion labels
• 1 Set of air shutters
Tools Required
• Wrenches, to disconnect gas line
• Phillips (+) screwdriver, to remove burner module
• Small jewelers size fl at blade screwdriver, to set pressure
• Small fl at blade screwdriver, to release pressure tap on
valve
• Needle Nose Pliers, to remove by-pass screw
• Hex Allen wrench, 4 mm or 5/32", to remove pilot injector
• Special 2-pin screwdriver tip, supplied with kit, to
remove valve cover
• Manometer, to set pressure
Specifi cations
Fireplace Models
Gas
Altitude (Ft)
Input Max. (Btu/h)
Input Min. (Btu/h)
Manifold pressure (in w.c.)
Min. Supply pressure
(in w.c.)
Max. Supply pressure
(in w.c.)
Main Burner Injector
Pilot Injector
By-Pass Screw
4006630-01
© 2018 Miles Industries Ltd. All rights reserved.
Retrofi re
Use with Valor Retrofi re Heater Models RF24JB ONLY
RF24JBN RF24JBP
Natural Propane
0–4,500 Feet
20,000 18,000
12,500 12,500
3.2 9.5
5.0 11.0
10.0 14.0
82-580 92-200
35 27
185 125
WARNING
This conversion kit shall be installed by a
qualifi ed service agency in accordance with
the manufacturer's instructions and all appli-
cable codes and requirements of the authority
having jurisdiction. If the information in these
instructions is not followed exactly, a fi re, ex-
plosion or production of carbon monoxide may
result causing property damage, personal in-
jury or loss of life. The qualifi ed service agency
is responsible for the proper installation of this
kit. The installation is not proper and complete
until the operation of the converted appliance
is checked as specifi ed in the manufacturer's
instructions supplied with the kit.
Use this manual in conjunction with the instal-
lation manual supplied with the appliance.

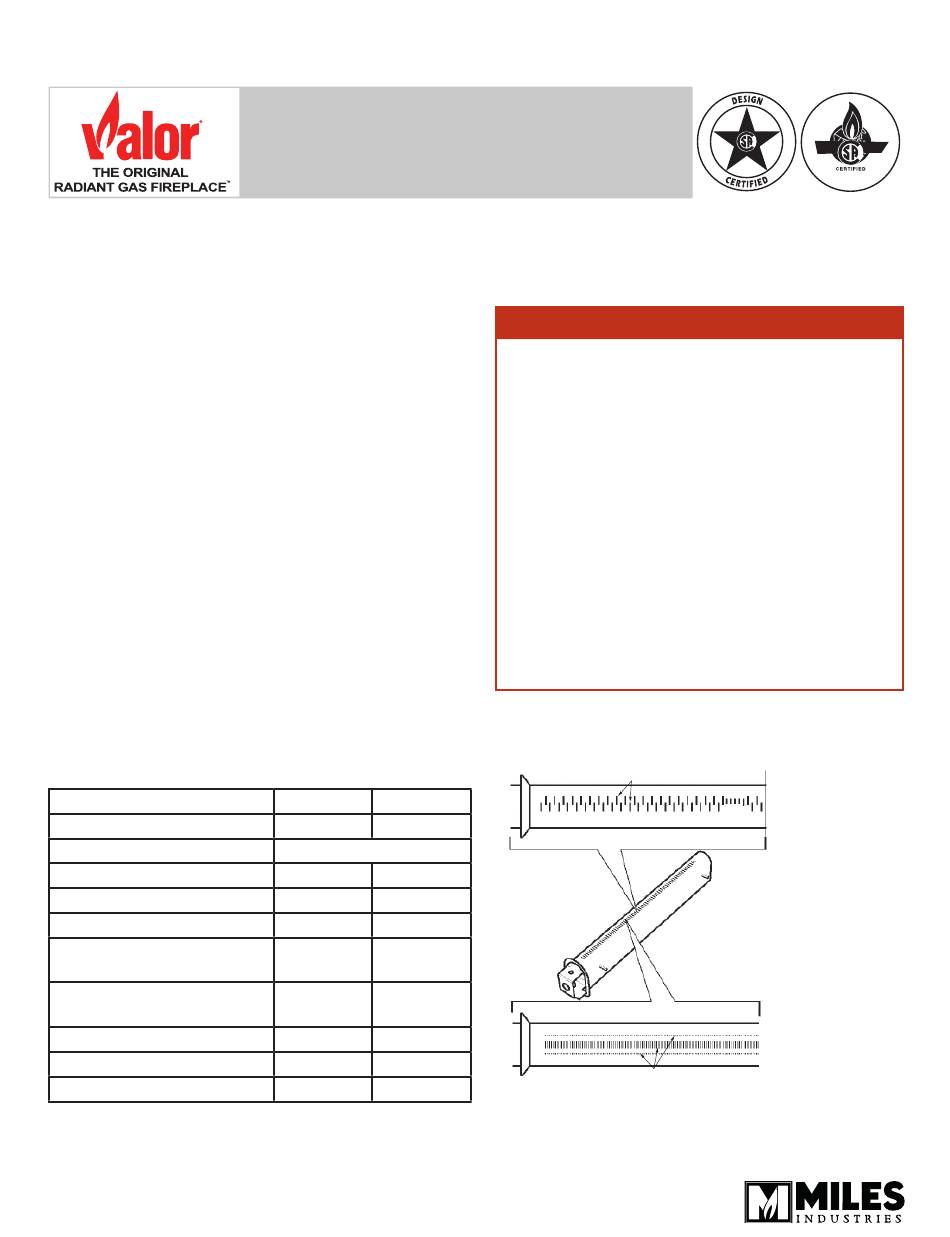

Natural Gas Burner:
Has two interlaced rows of slots
Propane Gas Burner: marked "LPG"
Has single row of slots and two rows
of small holes
