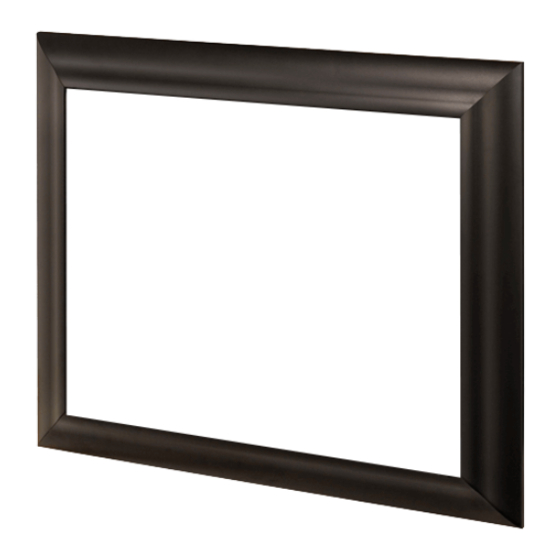

Valor 748CTK-VIK Installation Instructions

Four-sided Trim Kits for G3 Inserts Four-sided Trim Kits for G3 Inserts

Step 2

Attach the 2 trim mounting brackets to the side trim
pieces with 3 screws for each side. The brackets should
be fl ush at the bottom as indicated.
190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1
4000269-03 © Copyright Miles Industries Ltd., 2008
L
EGEND
748CTK-VIK / 749DTK-VIK 748CTK-VIK / 749DTK-VIK
INSTALLATION INSTRUCTIONS
Designed and Manufactured by / for Miles Industries Ltd.
Tel. 604-984-3496 Fax 604-984-0246
www.valorfi replaces.com
G3

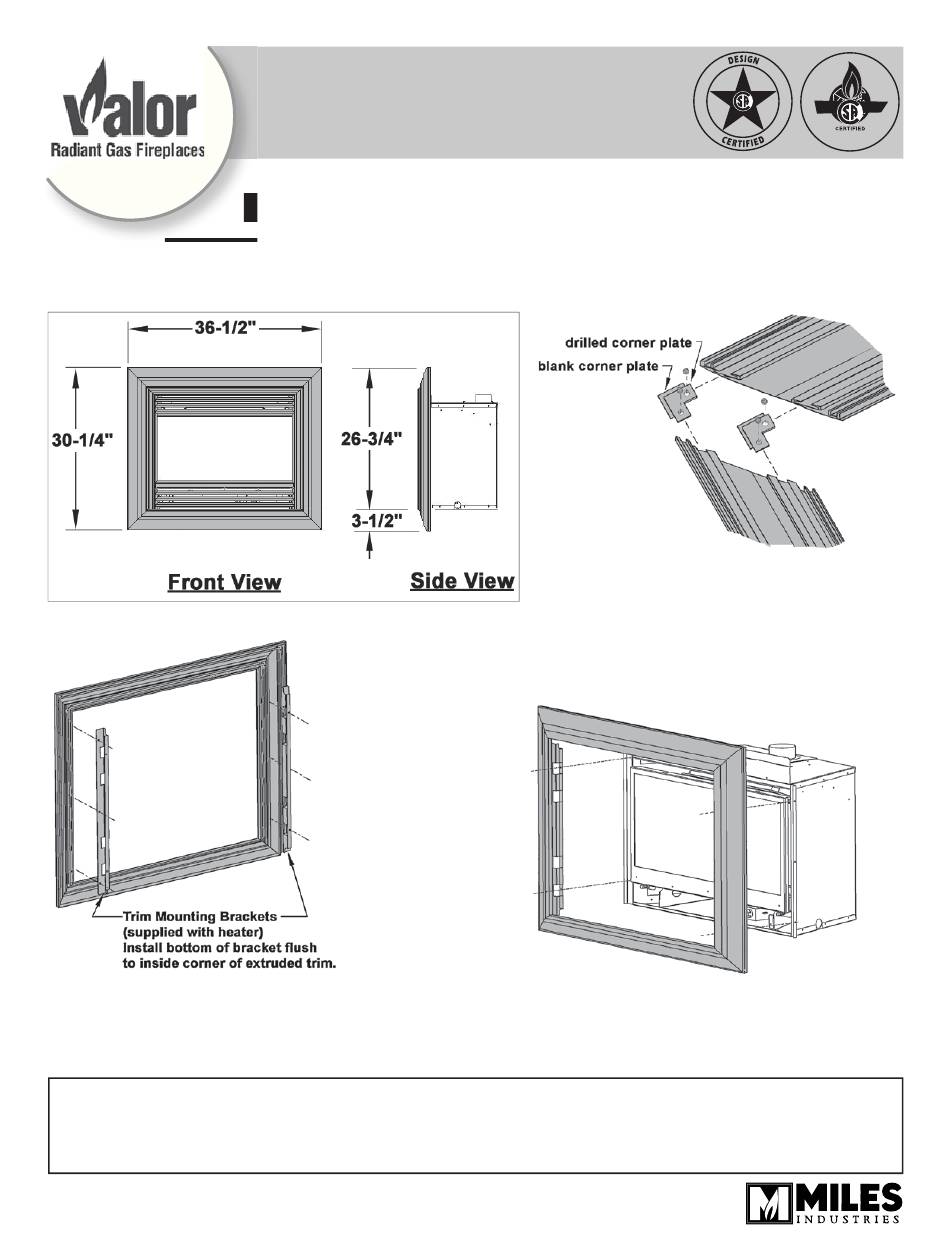

Step 1

Slide the corner connection plates into the
extruded channels of the sides and top trim
pieces. Butt the mitered corners together. Fit the
grub screws and tighen while maintaining the fi t of
the miter. Repeat with the 3 other corners.

Step 3

Attach the complete trim unit to the fi rebox with 4
screws as shown.
