Simplex 4099-9004 Quick Start Manual page 3

Addressable Manual Stations Surface Mounting

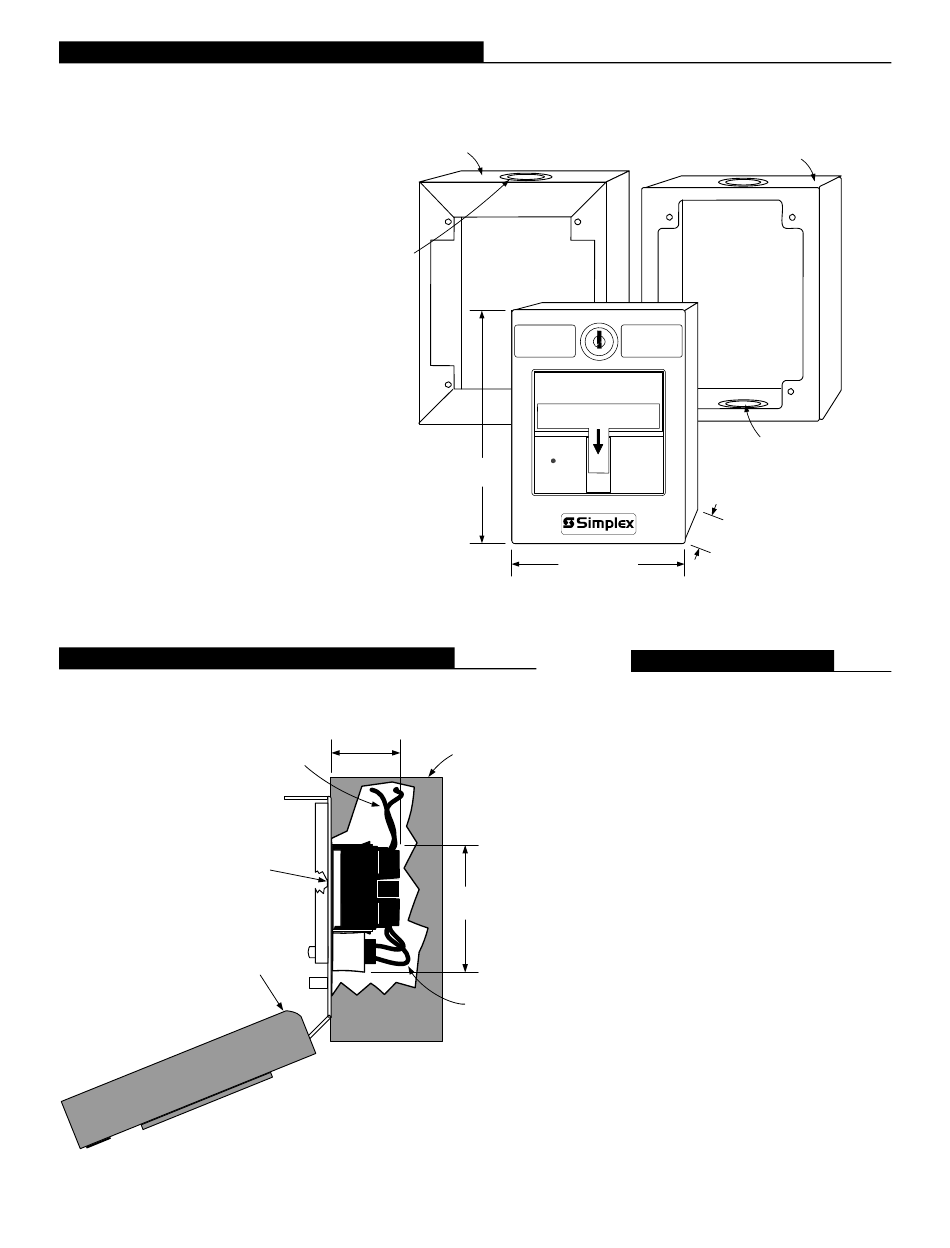

Preferred Mounting. For surface
mounting of these addressable
manual stations, the preferred
electrical boxes are shown in the
illustration to the right.
Additional Mounting
Reference. Refer to page 4 for
Wiremold box mounting
compatibility.
Surface Mount Side View with Internal Detail
Field wiring
(shown for reference)
Address setting under
resealable label (accessible
with cover open)
Station cover
hinges open for
installation access
2975-9178 Box
5-3/16" H x 4" W x 2-3/16" D
(132 mm x 102 mm x 56 mm)
(ordered separately)
Knockouts located
top and bottom
5"
(127 mm)
4099 Series Addressable Manual Station
1-1/4"
(32 mm)
Simplex 2975-9178 box
(shown for reference)
2-5/8"
(67 mm)
Switch wiring
(prewired)
3
2975-9022 Cast Box
5" H x 3-7/8" W x 2-3/16" D
(127 mm x 98 mm x 56 mm)
(ordered separately)
FIR
FIRE ALARM
E
PULL DOWN
1" (25.4 mm)
3-3/4" (95 mm)
Application Reference
Refer to NFPA 72, the National Fire
Alarm and Signaling Code, and all
applicable local codes for complete
requirements for manual stations. The
following summarizes the basic
requirements.
1. Stations shall be located in the
normal path of exit and distributed
in the protected area such that they
are unobstructed and readily
accessible.
2. Mounting shall be with the
operable part not less than 42 in
(1.07 m) and not more than 48 in
(1.22 m) above floor level.
3. At least one station shall be
provided on each floor. Additional
stations shall be provided to obtain
a travel distance not more than
200 ft (61 m) to the nearest station
from any point in the building.
When manual station coverage
4.
appears limited in any way,
additional stations should be
installed.
Access for 3/4" threaded
conduit located top and bottom
S4099-0005 10/2014
