Simplex 4099-9004 Quick Start Manual page 2

Addressable Manual Station Product Selection
Addressable Manual Stations, Red Housing with White Letters and White Pull Lever
Model Description
4099-9004 Single Action, English
4099-9004CB Single Action, Bilingual English and French
4099-9004CF Single Action, French
4099-9004PO Single Action, Portuguese
4099-9004SP Single Action, Spanish
4099-9005 Double Action, Breakglass operation, English
4099-9005PO Double Action, Breakglass operation, Portuguese
4099-9005SP Double Action, Breakglass operation, Spanish
4099-9006 Double Action, Push operation, English
4099-9006PO Double Action, Push operation, Portuguese
4099-9006SP Double Action, Push operation, Spanish
4099-9021 Single Action NO GRIP operation, English
Accessories (refer to pages 3 and 4 for details)
Model Description
2975-9022 Cast aluminum surface mount box, red
2975-9178 Surface mount steel box, red
Semi-flush trim plate for double gang switch
2099-9813
box, red
2099-9819 Flush mount adapter kit, black
2099-9820 Flush mount adapter kit, beige
Retrofit Kit for field conversion of a single action station to a NO GRIP station; refer to Installation Instructions
4099-9805
579-1007 for details
Specifications
(refer to Installation Instructions 579-1135 for additional information)
Power and Communications
Address Means
Wire Connections
UL Listed Temperature Range
Humidity Range
Housing Color
Material
Pull Lever Color
Housing Dimensions

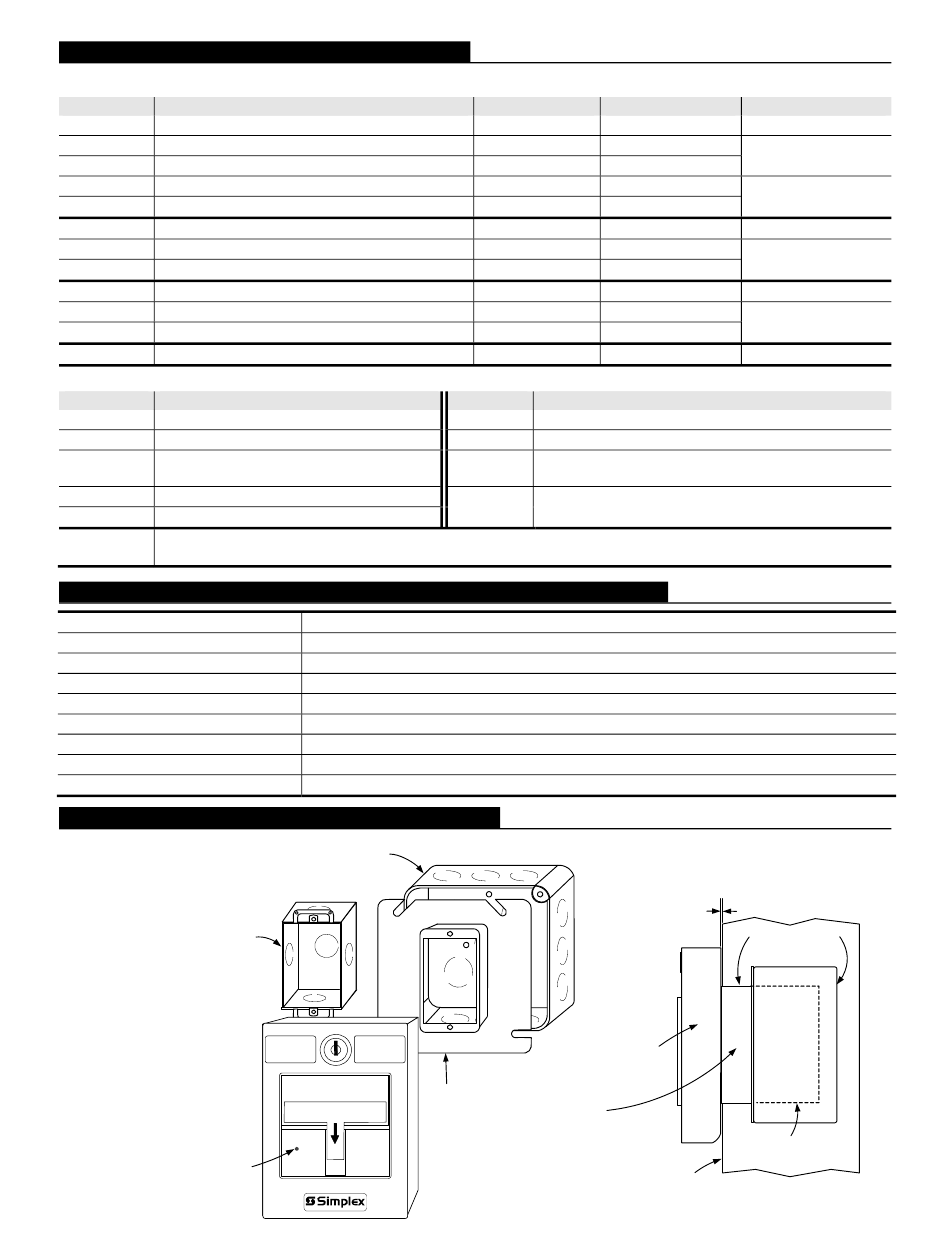

Addressable Manual Station Semi-Flush Mounting
4" Square Box Mount
4" (102 mm) square box, 2 1/8" (54 mm) minimum
depth, RACO #231 or equal (supplied by others)
Single Gang Box Mount
Single gang box, 2 1/2" deep
(64 mm), RACO #500 or equal
(supplied by others)
LED Indicator
IDNet or MAPNET II communications, 1 address per station
DIP switch, 8 position
Screw terminal for in/out wiring, for 18 to 14 AWG wire (0.82 mm
32° to 120° F (0° to 49° C) intended for indoor operation
Up to 93% RH at 100° F (38° F)
Red with white raised lettering
Housing and pull lever are Lexan polycarbonate or equal
White with red raised lettering
5" H x 3 ¾" W x 1" D (127 mm x 95 mm x 25 mm)
FIRE ALARM
Single gang cover plate, 3/4"
PULL DOWN
(19 mm) extension, RACO #773
or equal (supplied by others)
Housing
FIRE ALARM PULL DOWN
FEU FIRE TIREZ PULL
ALARME FEU
FOGO ALARME
ALARMA FUEGO
FIRE ALARM PULL DOWN
FOGO ALARME
ALARMA FUEGO
FIRE ALARM PUSH PULL DOWN UL, ULC, FM, CSFM
FOGO ALARME EMPURRE PUXE
ALARMA FUEGO EMPUJE JALE
FIRE ALARM PULL DOWN
Model Description
2099-9803 Replacement breakglass
2099-9804 Replacement break-rod
Institutional cover kit for field installation on 4099-9004;
2099-9828
Note: Covers LED indicator
2099-9814 Surface trim plate for Wiremold box V5744-2, red
Mount flush or with
1/16" (2 mm)
maximum extension
DO NOT RECESS
Station
side view
Wall surface
2
Pull Lever Listings
UL, ULC, FM, CSFM
ULC
ABAISSEZ
PUXE
UL, FM
JALE
UL, ULC, FM, CSFM
PUXE
UL, FM
JALE
UL, FM
UL, ULC, FM, CSFM
2 2
to 2.08 mm )
4" Square box
with cover plate
Single gang
box outline
Semi-Flush Mount Side View
S4099-0005 10/2014
