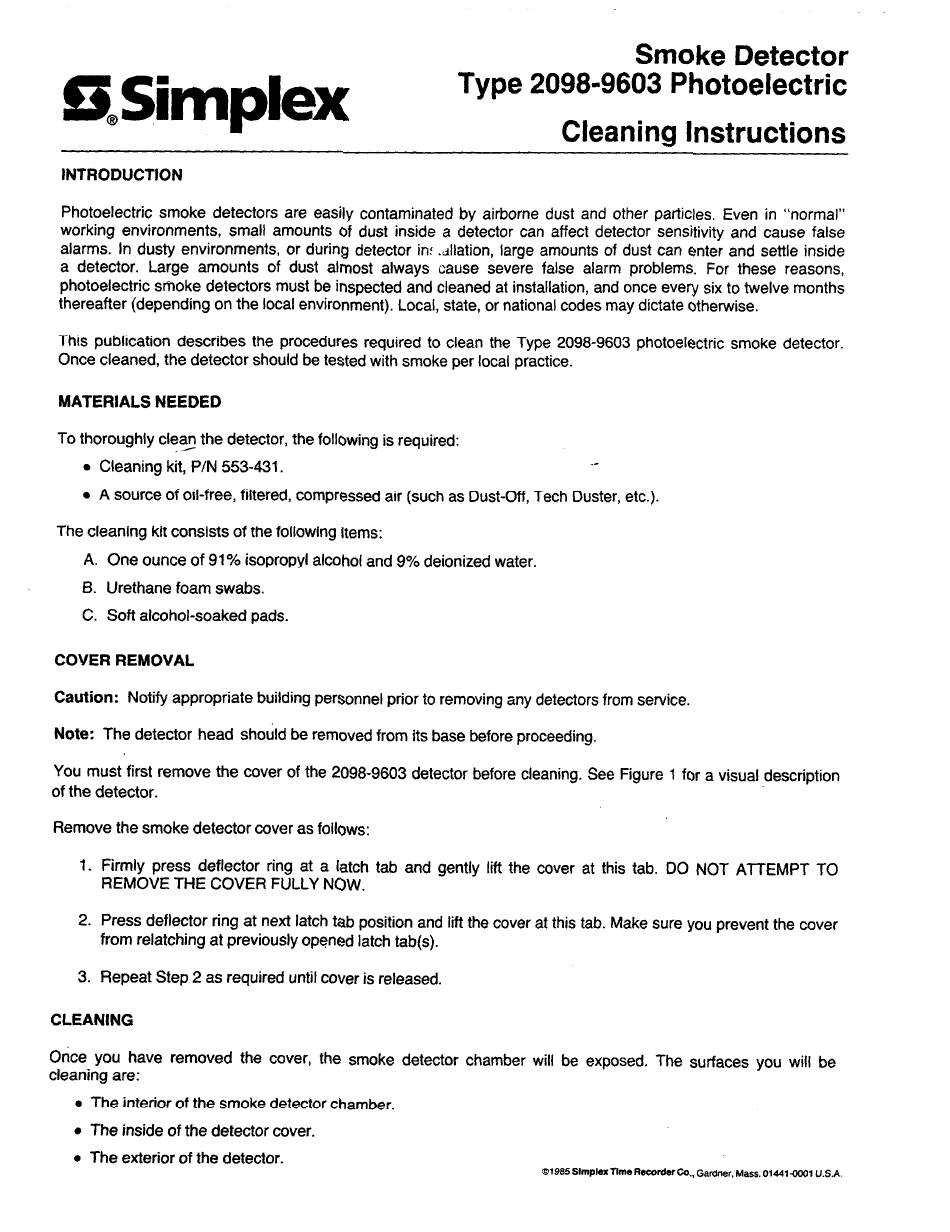

Simplex 2098-9603 Cleaning Instructions

Smoke Detector
Type 209819603 Photoelectric
Cleaning Instructions
aBSimplex
INTRODUCTION
Photoelectric smoke detectors are easily contaminated by airborne dust and other particles. Even in "normal"
working environments, small amounts of dust inside a detector can affect detector sensitivity and cause false
alarms. In dusty environments, or during detector in: Jlation, large amounts of dust can enter and settle inside
a detector. Large amounts of dust almost always cause severe false alarm problems. For these reasons,
photoelectric smoke detectors must be inspected and cleaned at installation, and once every six to twelve months
thereafter (depending on the local environment). Local, state, or national codes may dictate otherwise.
This publication describes the procedures required to clean the Type 2098-9603 photoelectric smoke detector.
Once cleaned, the detector should be tested with smoke per local practice.
MATERIALS NEEDED
To thoroughly clew the detector, the following is required:
l
Cleaning kit, P/N 553431.
_e
l
A source of oil-free, filtered, compressed air (such as Dust-Off, Tech Duster, etc.).
The cleaning kit consists of the following items:
A. One ounce of 91% isopropyl alcohol and 9% deionized water.
6. Urethane foam swabs.
C. Soft alcohol-soaked pads.
COYER REMOVAL
Caution:
Notify appropriate building personnel prior to removing any detectors from service.
Note: The detector head should be removed from its base before proceeding.
You must first remove the cover of the 2098-9603 detector before cleaning. See Figure 1 for a visual description
of the detector.
Remove the smoke detector cover as follows:
1. Firmly press deflector ring at a latch tab and gently lift the cover at this tab. DO NOT ATTEMPT TO
REMOVE THE COVER FULLY NOW.
2. Press deflector ring at next latch tab position and lift the cover at this tab. Make sure you prevent the cover
from relatching at previously opened latch tab(s).
3. Repeat Step.2 as required until cover is released.
CLEANING
Once you have removed the cover, the smoke detector chamber will be exposed. The surfaces you will be
cleaning are:
a The interior of the smoke detector chamber.
l
The inside of the detector cover.
l
The exterior of the detector.
