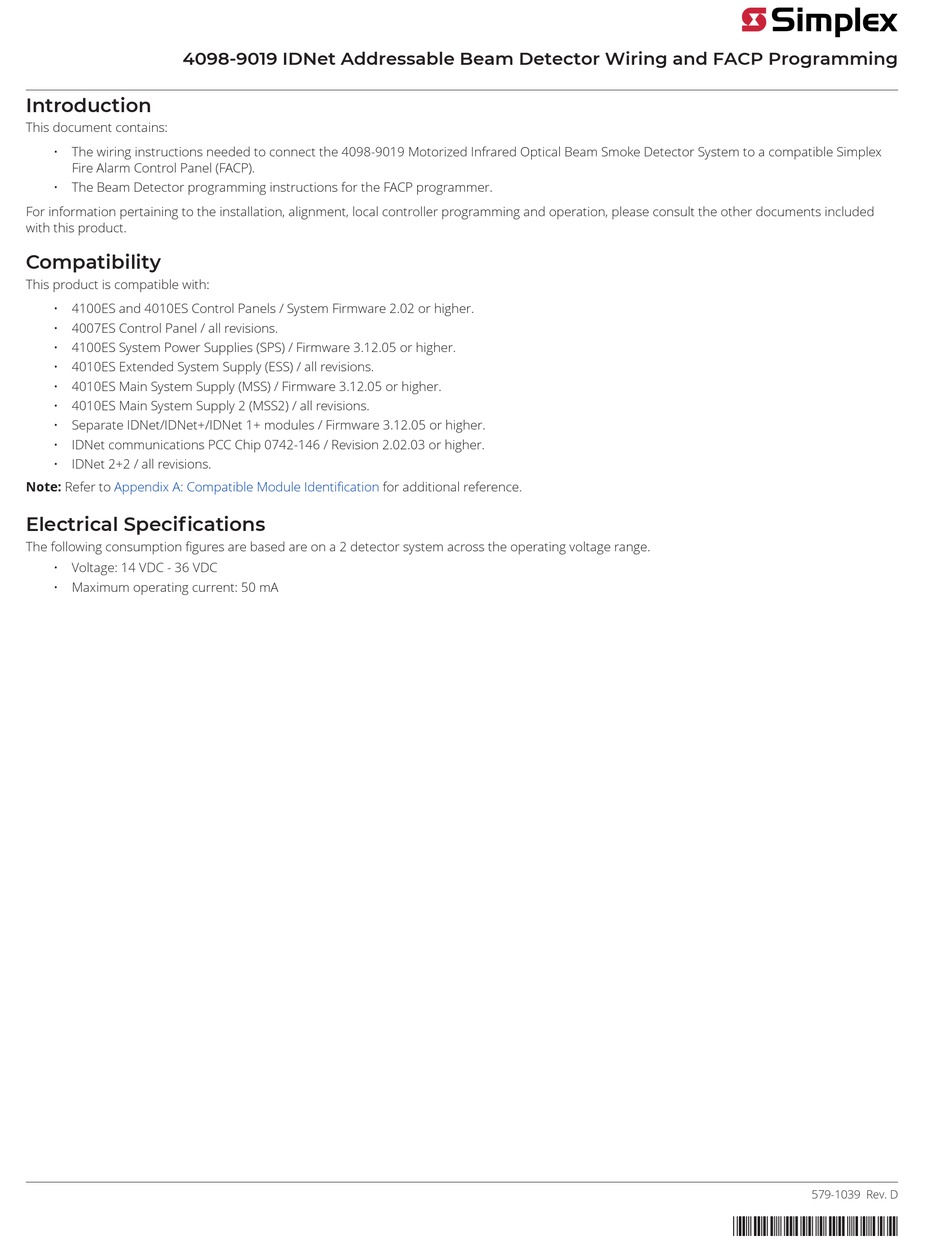

4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming
Introduction
This document contains:
• The wiring instructions needed to connect the 4098-9019 Motorized Infrared Optical Beam Smoke Detector System to a compatible Simplex
Fire Alarm Control Panel (FACP).
• The Beam Detector programming instructions for the FACP programmer.
For information pertaining to the installation, alignment, local controller programming and operation, please consult the other documents included
with this product.
Compatibility
This product is compatible with:
• 4100ES and 4010ES Control Panels / System Firmware 2.02 or higher.
• 4007ES Control Panel / all revisions.
• 4100ES System Power Supplies (SPS) / Firmware 3.12.05 or higher.
• 4010ES Extended System Supply (ESS) / all revisions.
• 4010ES Main System Supply (MSS) / Firmware 3.12.05 or higher.
• 4010ES Main System Supply 2 (MSS2) / all revisions.
• Separate IDNet/IDNet+/IDNet 1+ modules / Firmware 3.12.05 or higher.
• IDNet communications PCC Chip 0742-146 / Revision 2.02.03 or higher.
• IDNet 2+2 / all revisions.
Note: Refer to
Appendix A: Compatible Module Identification
Electrical Specifications
The following consumption figures are based are on a 2 detector system across the operating voltage range.
• Voltage: 14 VDC - 36 VDC
• Maximum operating current: 50 mA
for additional reference.
579-1039 Rev. D
*05791039D*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4098-9019 and is the answer not in the manual?

Questions and answers

Related Manuals for Simplex 4098-9019

Summary of Contents for Simplex 4098-9019

  • Page 1 4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming Introduction This document contains: • The wiring instructions needed to connect the 4098-9019 Motorized Infrared Optical Beam Smoke Detector System to a compatible Simplex Fire Alarm Control Panel (FACP). • The Beam Detector programming instructions for the FACP programmer.

  • Page 2: Wiring Specifications

    4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming Wiring Specifications Figure 1 depicts the wiring diagram that must be used when adding this device to an IDNet circuit. Figure 1: Device Wiring on a IDNet Circuit Consult Table 1 for the type of wiring needed to connect the FACP to the Beam Detector System Controller.
  • Page 3 4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming IDNet LEDs and Addressing Figure 2: LED and Address Switch Location LEDs: Remove the Beam Detector’s cover to access the LEDs. • IDNET1: This red LED corresponds to the head connected to DET1 on the device. When lit, it indicates a trouble or an alarm on the DET1 channel.
  • Page 4 4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming Figure 3: Setting the Address Programming and Editing the device point To program or edit this device from the ES Programmer, follow these steps: Open an already existing job or create a new one.
  • Page 5 4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming Figure 4: Accessing the IDNet Channel Figure 5: Accessing the Point Editing Tab Use the options in the Point Editing tab, shown in Figure 6, to edit the following: Device Type. Click on the Device Type drop down list box and select BEAM.

  • Page 6: Panel Operation

    4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming Figure 6: The Point Editing Tab Setting the address: The Beam Detector System requires two addresses per device: One address for the device and the “first” head. This address will also be the one associated with the address switch.
  • Page 7 4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming Table 2: Addressable Beam Detector FACP Operations Operations Status Name State Point Type Acknowledge the Beam device from the panel Disable and enable each head Enabled / Disabled / Trouble Trouble...

  • Page 8: Part Replacement

    4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming Figure 8: Beam Detector Information Troubles Reported The following trouble conditions are monitored by the FACP: IDNet Troubles Beam Detector Troubles No Answer Device Communications Status Bad Answer Rapid Obscuration Wrong Device...

  • Page 9: Appendix A: Compatible Module Identification

    4098-9019 IDNet Addressable Beam Detector Wiring and FACP Programming Appendix A: Compatible Module Identification • 4100-3101 566-044 IDNet Module – 250 Devices • 4100-3104 566-329 IDNet Module – 127 Devices • 4100-3105 566-330 IDNet Module – 64 Devices • 4100-5111 566-071 Expansion System Pwr Supply (SPS) •...
  • Page 10 © 2020 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. Additional listings may be applicable, contact your local Simplex® product supplier for the latest status. Listings and approvals under Simplex Time Recorder Co. Simplex, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited. NFPA 72 and National Fire Alarm Code are registered trademarks of the National Fire Protection Association (NFPA).
