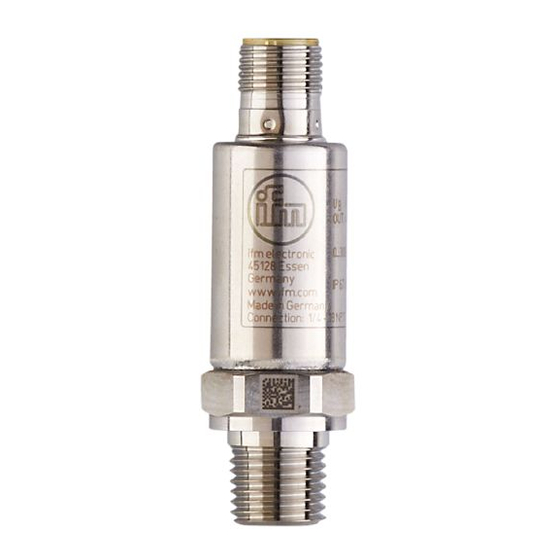

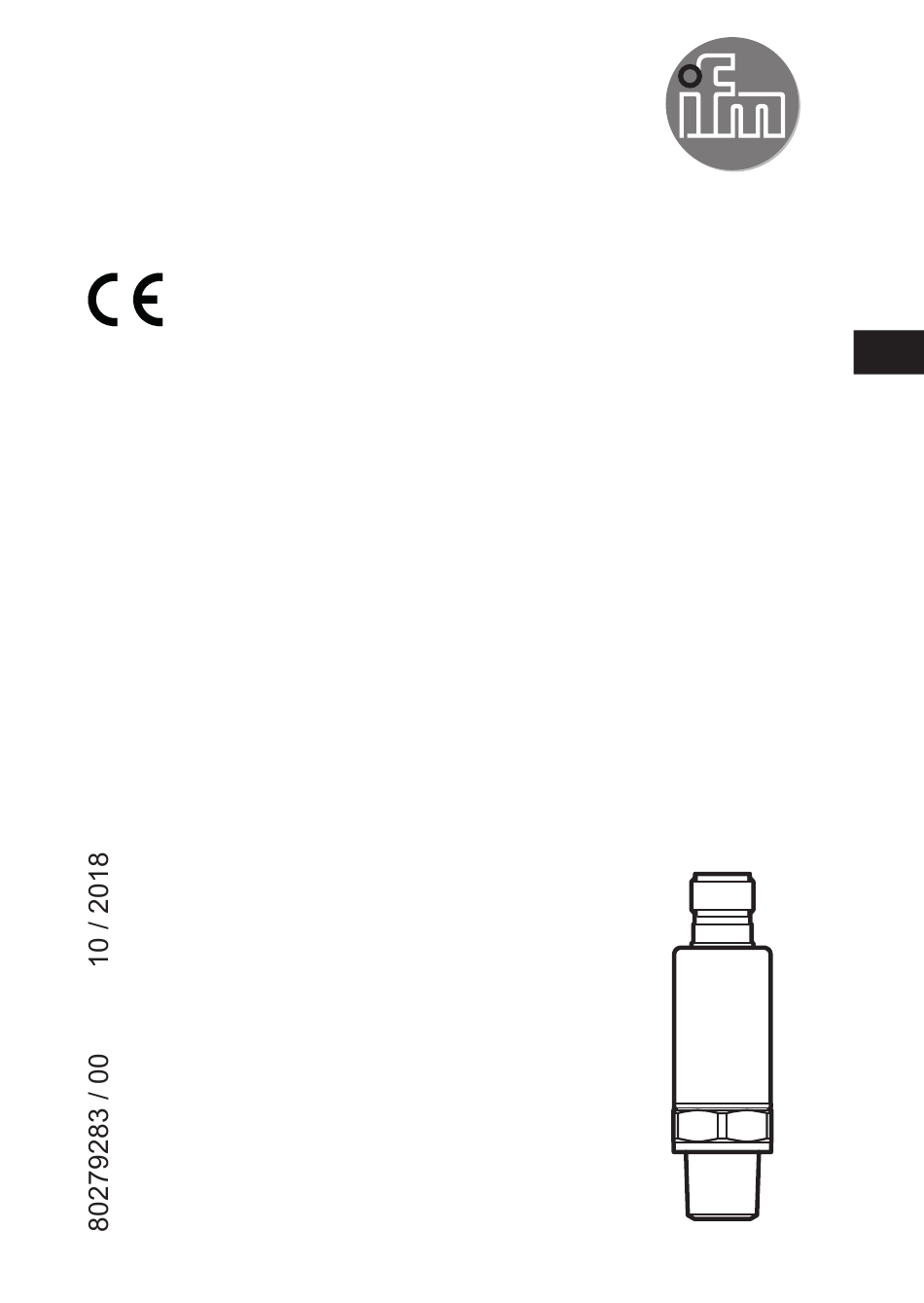

- Page 1 Installation instructions Electronic pressure sensor for industrial applications PT24xx...
-
Page 2: Safety Instructions
Contents 1 Preliminary note ....................2 2 Safety instructions ....................2 3 Functions and features ..................3 3.1 Applications ....................3 4 Functions ......................4 5 Installation......................4 6 Electrical connection ....................4 7 Technical data and scale drawing ................5 1 Preliminary note Symbols used ► Instructions →... -
Page 3: Functions And Features
• Installation, electrical connection, set-up, operation and maintenance of the unit must be carried out by qualified personnel authorised by the machine operator. • Protect units and cables against damage. 3 Functions and features The pressure sensor detects the system pressure and converts it into an analogue output signal. - Page 4 4 Functions Current output 4...20 mA (PT24xx) I [mA] P = system pressure, MEW = final value of the measuring range In the measuring range the output signal is between 4 and 20 mA. If the system pressure is above or below the measuring range, the analogue output behaves, without achieving the accuracy, as follows: •...
-
Page 5: Electrical Connection
OUT: analogue output 4...20 mA Colours to DIN EN 60947-5-2 Example circuit 7 Technical data and scale drawing Further technical data and scale drawing at www.ifm.com . EPS Source Frame Size: 15 mm x 15 mm More information at www.ifm.com...
