EWM Tetrix 351 AC/DC Conversion Instructions page 9

Item 0 Quantity
1 1

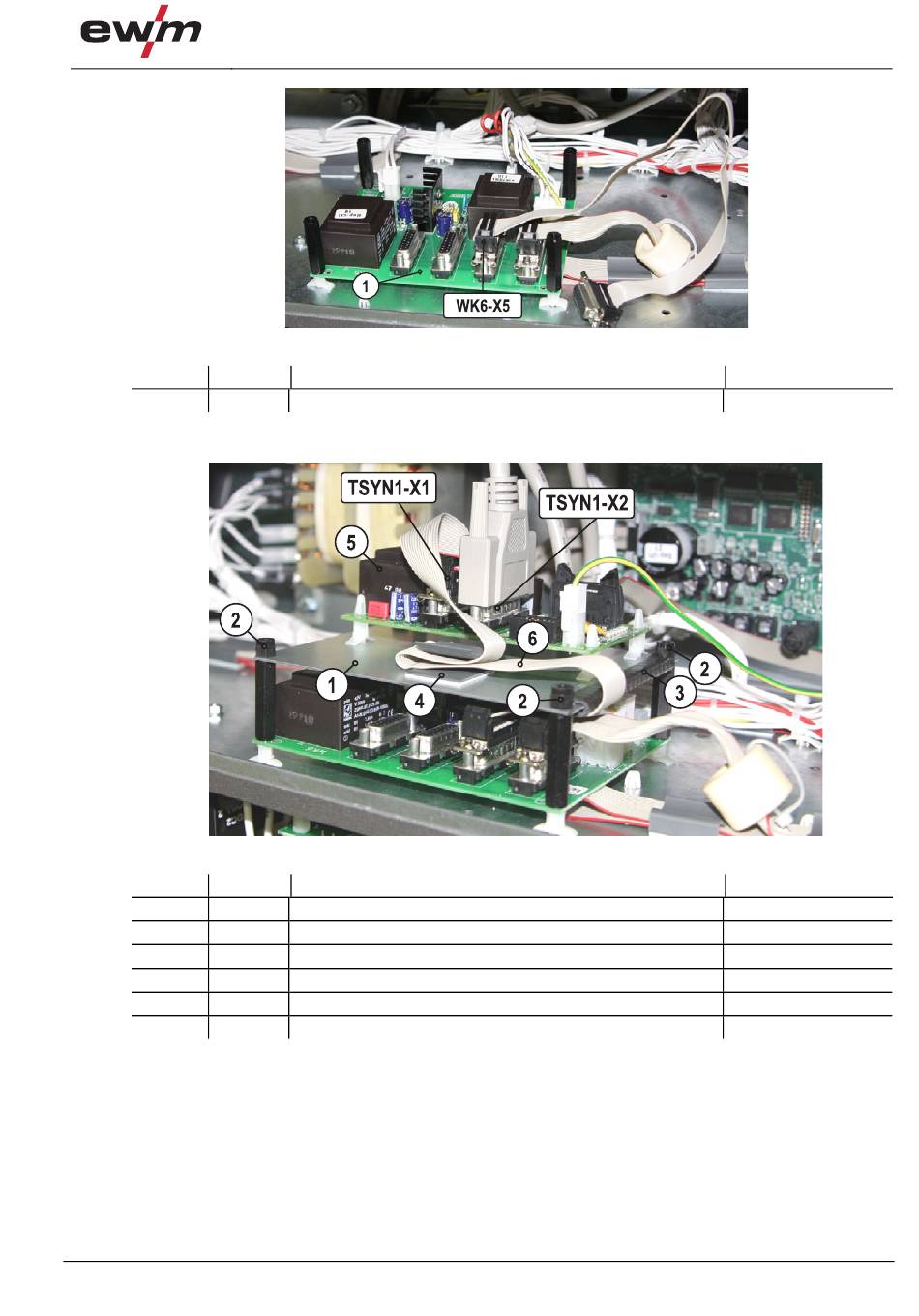

• Attach the D-SUB connection of the flat band cable to the WK6-X5 PCB and screw tight.
Item 0 Quantity
1 1
2 4
3 1
4 1
5 1
6 1
• Attach the PCB holder to the M4 x 35 mm spacers using M4 x 8 mm stud bolts.
• Attach the edge protection to the PCB holder.
• Attach the adhesive base to the PCB holder.
• Attach the D-SUB connection of the flat band cable to the TSYN1-X1 PCB and screw tight (secure the
cable in the adhesive base).
• Reattach the D-SUB cable of the WK 6 PCB to the TSYN1-X2 PCB and screw tight.
099-008212-EW501
14.03.2011
Description
PCB WK 6
Description
PCB holder
Thread bolt M4 x 8 mm
Edge protection
Adhesive base
PCB TSYN1
Flat band cable D-SUB
Figure 3-4
Figure 3-5
Conversion
Installing the PCB
Item number
-
Item number
094-016978-00000
044-003002-00000
094-007643-00000
074-000159-00000
040-000676-00000
094-007494-00002
