Tetrix 451, 551 Ac/Dc - EWM Tetrix 351 AC/DC Conversion Instructions

3.2.2

Tetrix 451, 551 AC/DC

Item 0 Quantity
1 4
2 1
3 4
4 1
5 4
6 1
7 1
• Attach the M4 expanding anchor to the intermediate plate.
• Secure the PCB holder to the M4 expanding anchor using the M4 x 35 mm spacer.
• Insert the spacer into the PCB holder.
• Fit the TSYN1 PCB on the spacer.
• Attach the edge protection to the PCB holder.
• Attach the D-SUB connection of the flat band cable to the TSYN1-X2 PCB and screw tight.
• Attach the D-SUB connection of the flat band cable of the WK 6 PCB to the TSYN1-X1 PCB and
screw tight.
099-008212-EW501
14.03.2011
6
3
2
TSYN1-X1
TSYN1-X2
Description
M4 expanding anchor
PCB holder
Spacer M4 x 35 mm
Edge protection
Spacer
PCB TSYN1
Flat band cable D-SUB
7
5

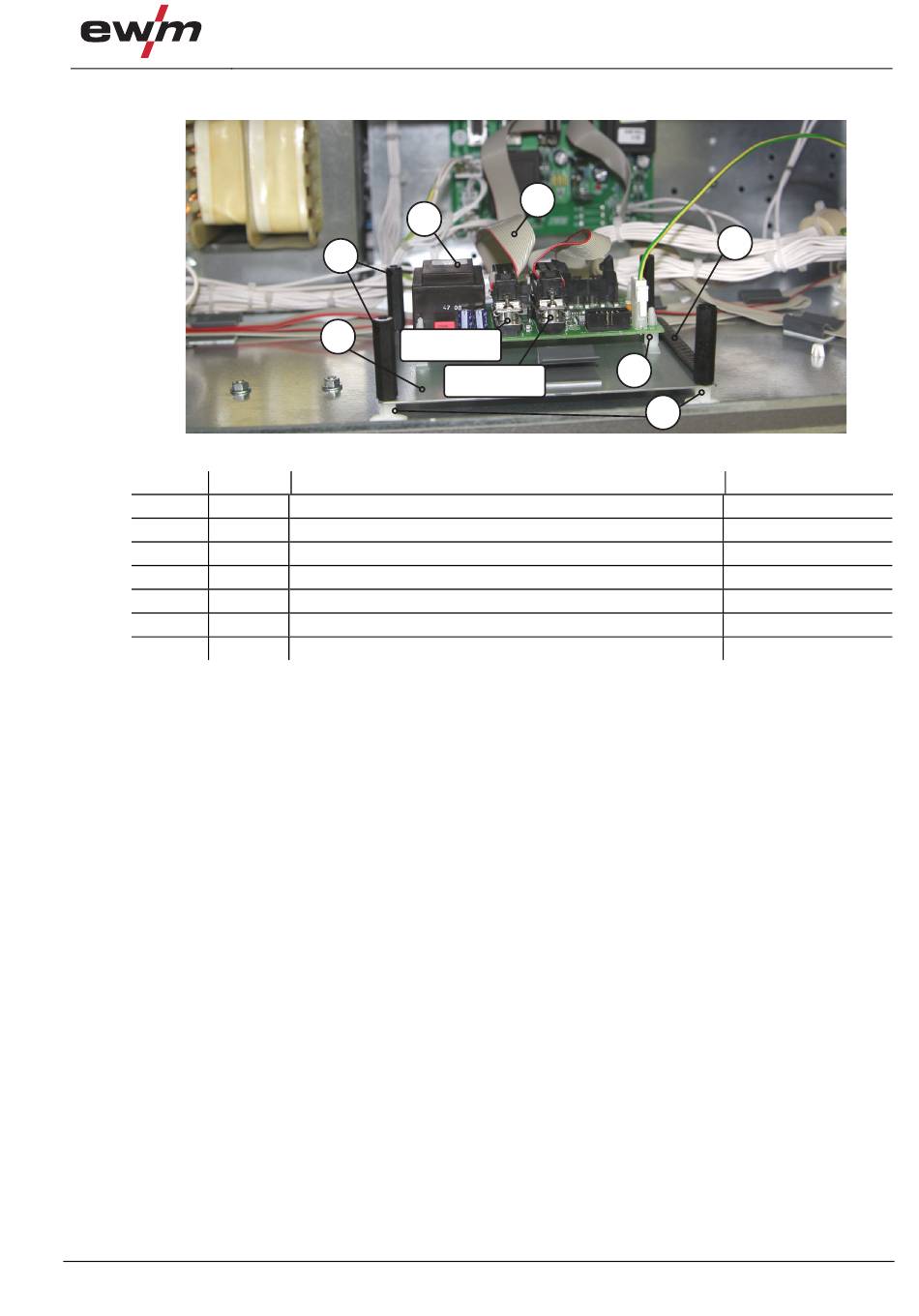

Figure 3-7
Conversion
Installing the PCB
4
1
Item number
094-006502-00000
094-016978-00000
044-002151-00000
094-007643-00000
064-000567-00000
040-000676-00000
094-007494-00002
