3.3
Installing the rotary switch at the back of the machine
Item 0
Quantity
1
1
2
1
3
4
4
1
•
Remove the blind plug from the X1 connection (with older machines, the
instead of X1).
•
Remove the rotary dial cover and arrow indicator from the rotary switch.
•
Insert the rotary switch from inside the casing rear panel and secure from the outside using the oval-
head screws.
The step switch is equipped with a switching stage limiter nipple, which has to point to the right
during installation.
•
Attach the sticker above the rotary switch at the casing rear panel (see figure).
•
Reattach the rotary dial and arrow indicator to the rotary switch.
To align the rotary dial with the sticker scale proceed as follows:
•
Using a socket wrench, screw the rotary dial tight up to the point that the steps can be switched.
•
Turn the rotary dial to the different switch positions to the left until it overwinds.
•
Continue turning until the arrow indicator points to position 1 again.
•
Screw the rotary dial tight.
•
Fit on the rotary dial cover.
•
Attach the flat band cable connector plug to the VP13-X1 PCB (rotary switch) and lock.
•
Assemble the machine in the reverse order.
099-008212-EW501
14.03.2011
Description
Blind plug
Rotary switch (assembly)
Oval-head screw M3x10
Adhesive film (rotary switch)
Installing the rotary switch at the back of the machine

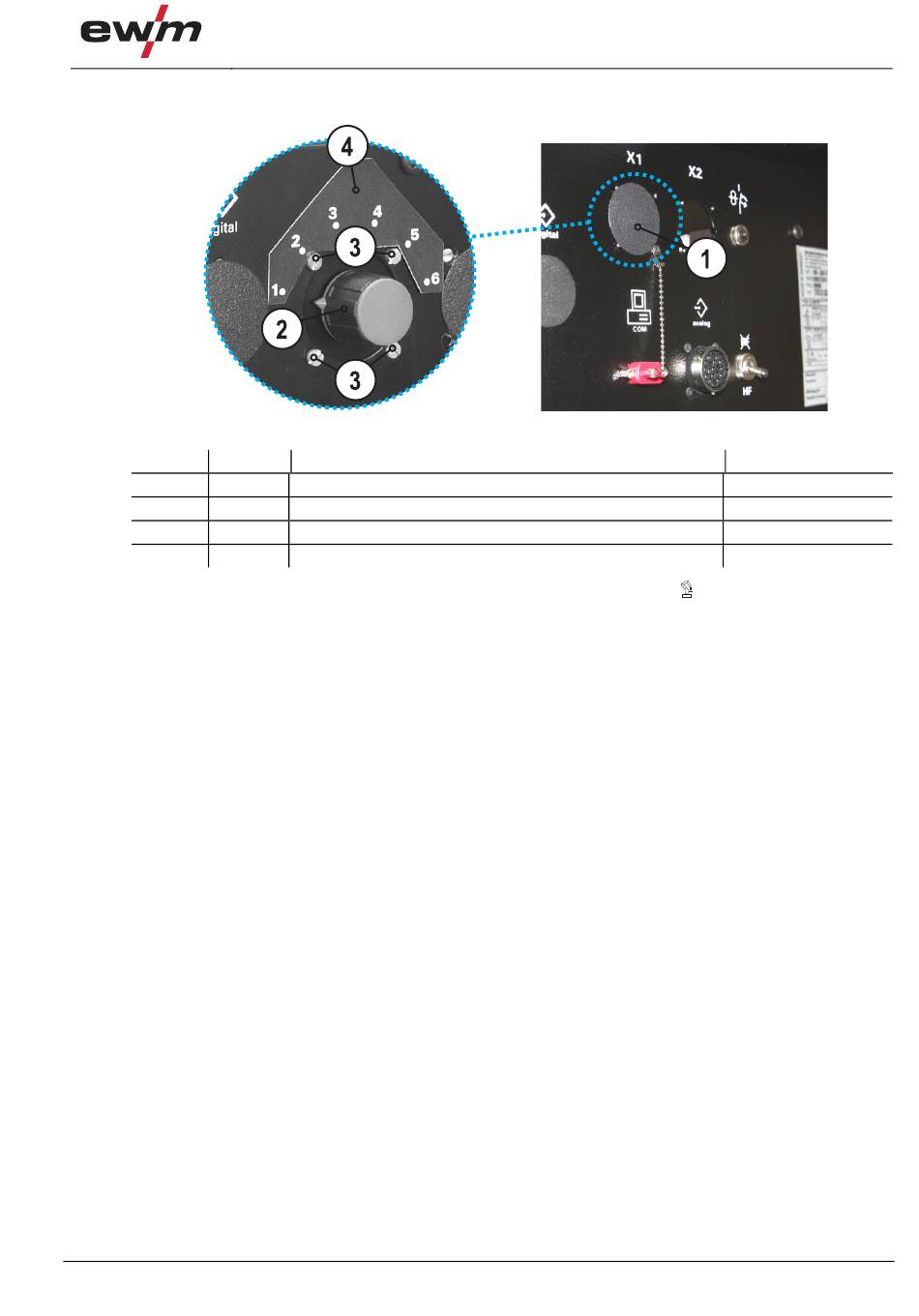

Figure 3-9
Conversion
Item number
092-008178-00000
044-001414-00001
094-009599-00000
symbol may be shown
