Conversion
Installing the PCB
Item 0
Quantity
1
1
2
1
3
1
4
2
5
1
•
Insert the flat band cable connector plug through the toroidal ferrite core and secure using a cable
binder.
•
Lay the flat band cable to the TSYN1-X3 PCB, insert and lock.
•
Connect the earthing cable of the TSYN1-PE PCB to the PE earthing contact on the intermediate
plate.
•
Secure the harness using the cable binder supplied
12
TSYN1-X3
Description
Rotary switch (assembly)
Flat band cable
Toroidal ferrite core (interference suppression)
Cable binder
Earthing cable (PE)
4
5
TSYN1-PE

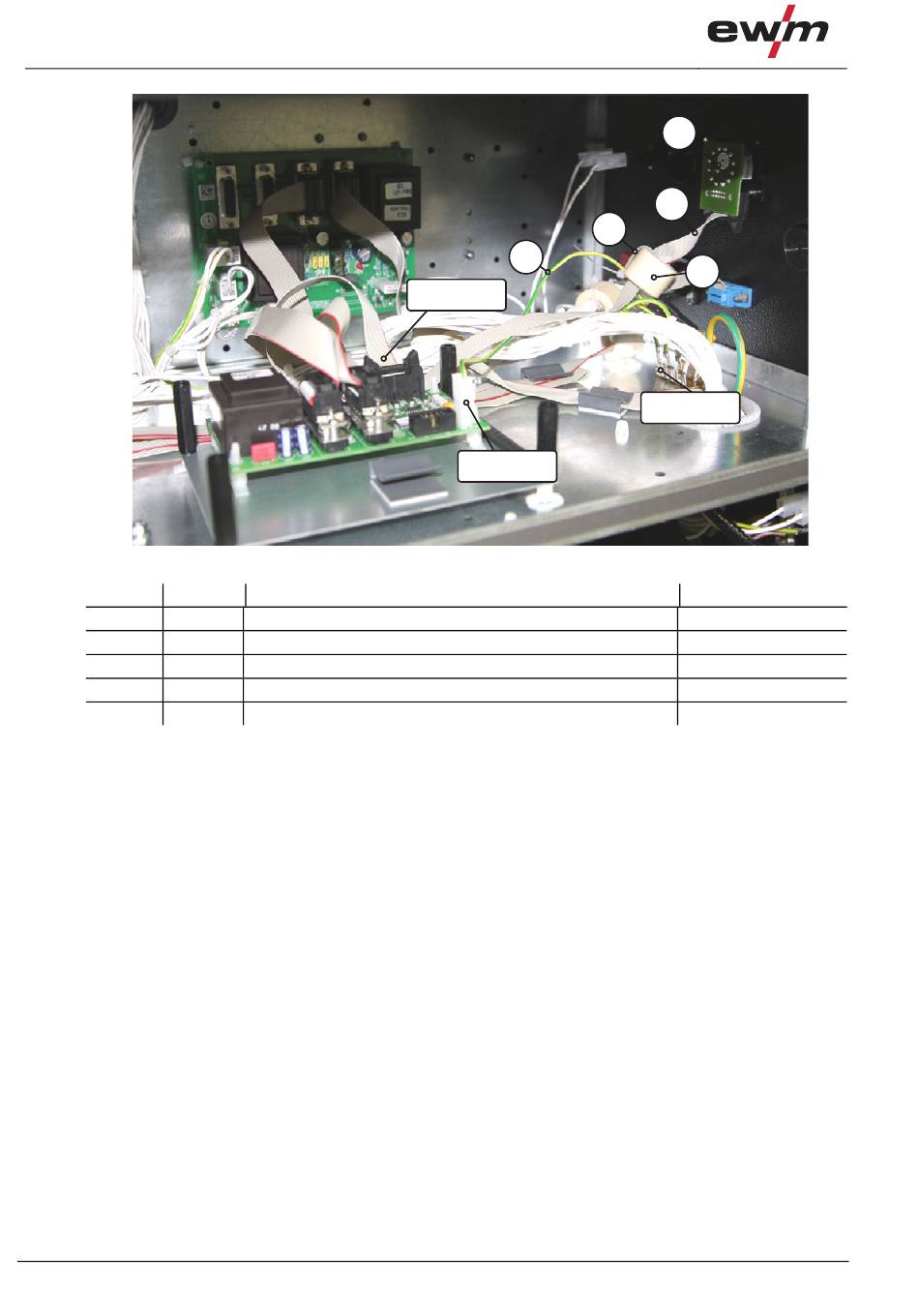

Figure 3-8
1
2
3
PE
Item number
092-008178-00000
094-000003-00000
034-000157-00000
044-001275-00000
094-016979-00000
099-008212-EW501
14.03.2011
