Installing the PCB

3.2 Installing the PCB
• Unscrew right-hand casing cover.
• Remove the earth cable from the cover plate.
3.2.1

Tetrix 351 AC/DC

Item 0 Quantity
1 1
2 1
• Remove the D-SUB cable from the WK 6 PCB.
Item 0 Quantity
1 1
2 4
3 4
• Unfasten the WK 6 PCB from the expanding anchors.
• Replace expanding anchor (without threaded end fitting) with M4 expanding anchor (with threaded end
fitting).
• Attach the WK 6 PCB to the M4 expanding anchors (with threaded end fitting).
• Secure the WK 6 PCB using M4 x 35 mm spacers.
8
Description
PCB WK 6
D-SUB cable
Description
PCB WK 6
M4 expanding anchor
Spacer M4 x 35 mm

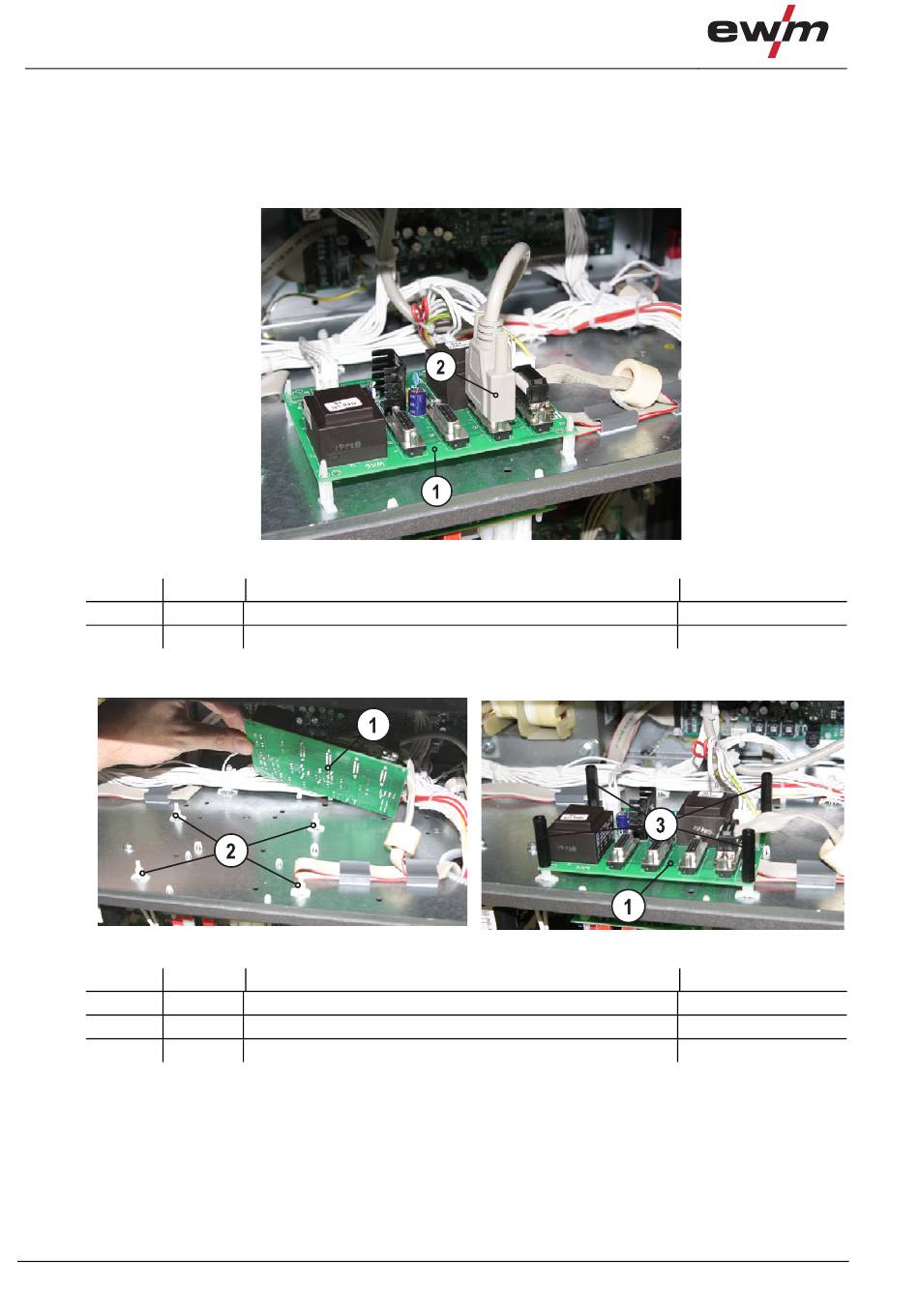

Figure 3-2
Figure 3-3
Item number
-
-
Item number
-
094-006502-00000
044-002151-00000
099-008212-EW501
