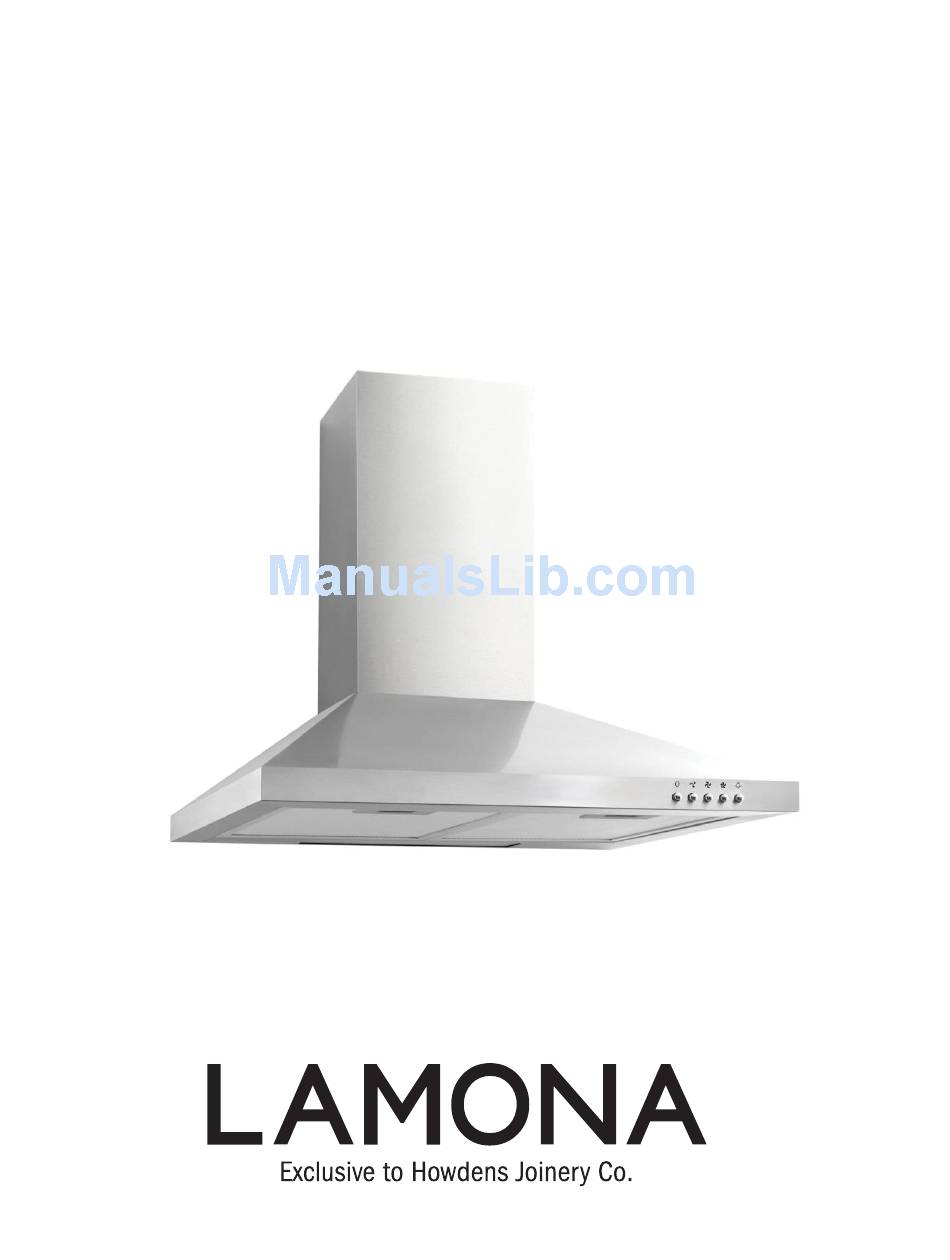

  • Page 1 60cm Extractor HJA2480 Stainless Steel LAM2401 Black Instillation & User Instruction Issue 4 Apr 2012...
  • Page 2: Table Of Contents

    Contents Page Environmental note IMPORTANT SAFETY INFORMATION 4 – 6 Specifications of your extractor 7 – 8 Dimensions Specifications 7 - 8 Using your extractor 9 - 10 Before first use To use your extractor 9 - 10 Cleaning your extractor General cleaning The grease filters Maintenance...
  • Page 3: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.
  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance. Please make sure that you read this instruction booklet before attempting to install or use the appliance. IMPORTANT: Any installation work must be carried qualified electrician competent person. o The extractor must be installed...
  • Page 5 o If the room where the extractor is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type. o If other types of flue or appliances are fitted, ensure that there is an adequate supply of air in the room.
  • Page 6 o Note: Your extractor is designed to remove cooking odours from the room and not steam. o Warning - Always ensure that the extractor has been disconnected from the power supply before carrying work, including replacing light bulbs. o Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose.
  • Page 7: Specifications Of Your Extractor

    Specifications PRODUCT DIMENSIONS Height: 563* mm – 933 mm Width: 600 mm Depth: 475 mm DIMENSIONS OF CHIMNEY SECTION: 175 mm x 220 mm Your stainless steel extractor is fitted with: o High extraction tangential motor o Push button control operation o 3 Speeds o 2 Metallic grease filters o 2 lights...
  • Page 8 Extraction capacity: 350 m³/hr Noise level min/max: 52 – 62 dB * If you are using the appliance in recirculation mode, then PLEASE NOTE that some of the vent in the upper chimney section must be exposed. You will have to take this into account when calculating the minimum height of the extractor when installed.
  • Page 9: Using Your Extractor

    Using your extractor IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE EXTRACTOR IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner and polish on ALL of the stainless steel areas of your extractor, before it is used for the first time.
  • Page 10: Cleaning Your Extractor

    IMPORTANT: IDEALLY YOU SHOULD SWITCH ON YOUR EXTRACTOR TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. SHOULD ALSO YOUR EXTRACTOR FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Cleaning your extractor IMPORTANT: BEFORE CLEANING, ALWAYS...
  • Page 11: Maintenance

    Maintenance Removing and cleaning the grease filters o First remove the grease filters by pulling down on the handle and pulling them away from extractor. o Soak the grease filters in hot water and washing up liquid for about an hour. o Rinse them off thoroughly with hot water.
  • Page 12: Changing A Light Bulb

    Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE EXTRACTOR FROM YOUR MAINS SUPPLY. o Remove the grease filters described on page 11). o Prior to touching the light bulbs ensure they are cooled down. o Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.
  • Page 13: Fitting The Carbon Filters

    Fitting the carbon filters If the appliance is being used to be used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE EXTRACTOR FROM YOUR MAINS SUPPLY.
  • Page 14: Installation

    Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filter.
  • Page 15: Before Beginning Installation

    o As the colours of the wires in the appliance’s mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows: o The blue wire must be connected to the terminal marked “N” (neutral), or black. o The brown wire must be connected to the terminal marked “L”...
  • Page 16: Installing Your Extractor

    and ceiling. The wall and ceiling must be strong enough to take the weight of the extractor. o Do not tile, grout or silicone this appliance to the wall. This appliance is designed to be surface mounted only. Installing your extractor IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR EXTRACTOR WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE.
  • Page 17 3) Using a drill bit with a 6 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert rawl plugs into all of the holes that you have drilled. 5) Fasten the support screws halfway in, leaving them 10 mm out of the wall.
  • Page 18 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the extractor. Fully tighten the anchoring screws into the wall.
  • Page 19: Connecting To External Ducting

    Connecting to external ducting 8) Connect the coupling to the top of the extractor, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours.
  • Page 20 10) Lift chimney section (D) upwards until it reaches the ceiling. You must ensure that it is perpendicular to the extractor. o Mark the side measurements of both sides of chimney section (D) on the wall with a pencil and then remove chimney section (D).
  • Page 21 12) Using a 6 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert rawl plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section (C) to the extractor and fix it using the two screws that are supplied.
  • Page 22: Completing The Installation

    Completing the installation o If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the “Fitting the carbon filters” section on page 13 - 14. o The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the extractor.
  • Page 23: Troubleshooting

    Troubleshooting IMPORTANT: If your extractor appears not to be operating properly, please refer to the checklist below. My extractor will not start. o Check that the extractor is connected to the electricity supply o Check that the fan speed control is set correctly. My extractor is not working effectively.
  • Page 24: Guarantee

    Your Guarantee...
