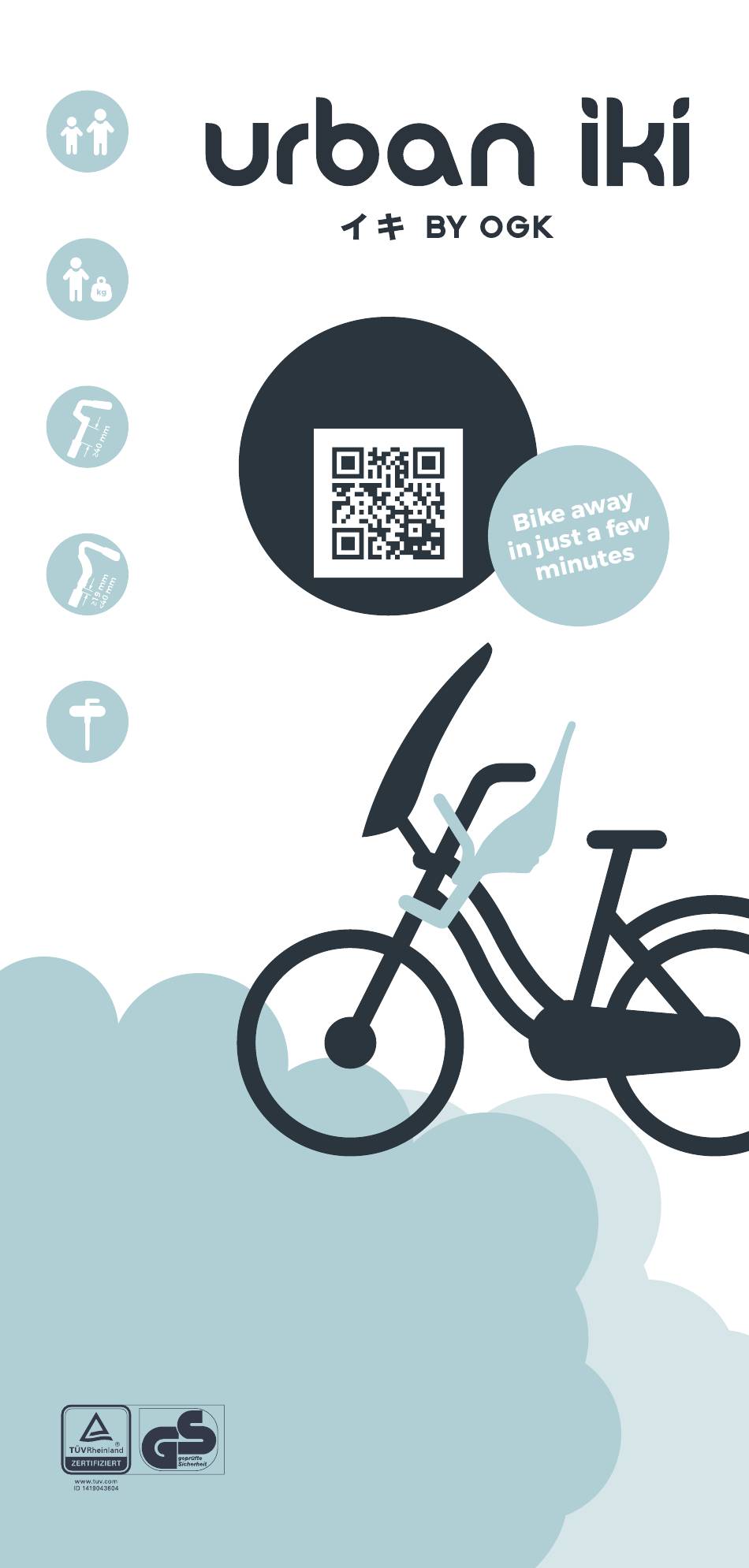

- Page 1 9 months to 6 years 9 to 22 kg Scan for instruction video Ø 21 to 28 Ø 21 to 28 no° 6 included Front seat with Compact Adapter Fietszitje voor met Compact Adapter スリム取付けタイプ自転車用フロントシート www.urbaniki.com...
- Page 2 Then the Urban Iki Front seat is no longer suitable for carry- ing your child on the bike. For children from 15 kg to 22 kg, there is the Urban Iki Rear seat for carrying kids on the back of your bike. Go to www.urbaniki.com for the full range and...
- Page 3 No° 6 User manual The Urban Iki Front seat is easy to put together and attach to your bike. This user manual explains how to do this yourself quickly and easily. So you can get on the road straight away and enjoy cycling with your child. Read the user manual care- fully before using the Urban Iki Front seat, and follow closely the instructions for safe use.
- Page 4 How to assemble the Urban Iki Front seat Your Urban Iki Front seat is easy to put together. All you have to do is slide the foot supports onto the left and right mounting tubes. Mounting left and right foot supports...
- Page 5 21-24 mm | standard 21mm 25-28mm 25-28 mm | standard 21mm Remove 21mm insert Step 2: Fit block to handlebars Step 3: Screw tight to max 5Nm max 5Nm...
- Page 6 21-24 mm | compact consult the bicycle manual step 2: disassemble the step 3: mount handlebar handlebar / remove spacers 21mm step 4: remove step 5: mount insert 21 mm insert 25-28 mm | compact consult the bicycle manual step 2: disassemble the step 3: mount handlebar handlebar / remove spacers 25-28mm...
- Page 7 Step 6: Fit block to handlebars Step 7: Screw tight to max 5Nm max 5Nm Fasten bike seat to the mounting block Always check whether the handlebars can still be turned properly both left and right after fi tting the bike seat. If the angle of rotation is less than 45° left or right, then we recommend fi...
- Page 8 How to use the Urban Iki Front seat When you use the Urban Iki Front seat, always check whether the seat is properly fi tted and take a brief test ride without your child. If everything is working properly and you are not restricted when cycling, then you are now ready top set off with your child.
- Page 9 Opening and closing the seatbelt CLICK! CLICK! Close seatbelt 1. Press 2. Press 3. Pull upwards Open seatbelt Adjusting seatbelt strap Tilt seatbelt upwards Tilt seatbelt upwards Tightening seatbelt...
- Page 10 Cycling with a child in a bike seat can infl uence the characteristics of your • bike when cycling, especially when steering in bends, or braking or setting off. You must be 16 years or older to carry a child in the Urban Iki bike seat. Legisla- • tion may differ per country.
- Page 11 Maintenance, warranty and service Maintain your Urban Iki bike seat properly, as it will then give you many years of pleasure. It is suffi cient to clean it occasionally with a cloth, lukewarm water and a mild cleaning agent. Urban Iki products are developed and manufactured on the basis of the highest quality standards.
- Page 12 2018 - version 1...
