Rtd simulator

Advertisement

• Easy to use
With the PIECAL 510B/511B you can check & calibrate all your RTD instruments. Automatic
indication of connections on the display for simple hookups. Choose a single RTD type for the
Model 510B or simulate 10 RTD types with the Model 511B.
• Take it without into the shop, plant or field
Carry it without worry - protect it with an optional rubber boot and rugged, low profile switches.
Easy to operate even in the dark areas of the plant with the backlit display.
• Calibrate directly in temperature (°C & °F)
Stop carrying around a decade box and RTD resistance tables. The PIECAL 510B/511B works
with the RTDs you use including Platinum 100 (alpha = 3850, 3902, 3926) & 1000 (alpha =
3850, 3750) Ohm, Copper 10 & 50 Ohm, Nickel 100 and 120 Ohm. Easily set any value quickly
to within 0.1° with the adjustable digital potentiometer "DIAL" plus store any three temperatures
for instant recall with the EZ-CHECK™ switch.
• Compatible with all process instruments
Connect directly to the RTD inputs of smart transmitters, PLCs, DCS and multichannel recorders
and verify their outputs or displays. Works with older instruments with fixed excitation currents
and newer multichannel instruments that switch the excitation current between input channels.
Visit us at www.TestEquipmentDepot.com

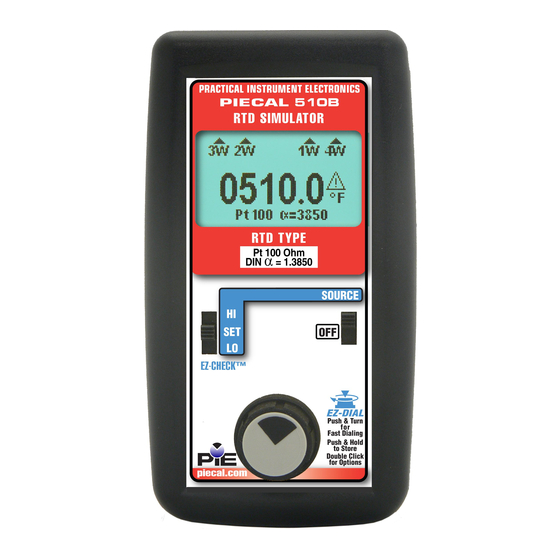

PIECAL 510B/511B
PIECAL 510B/511B
Operating Instructions
Operating Instructions
(Shown without optional boot)
Product Description
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
RTD Simulator
RTD Simulator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIECAL 510B and is the answer not in the manual?

Questions and answers

Summary of Contents for PIE PIECAL 510B

  • Page 1 Product Description • Easy to use With the PIECAL 510B/511B you can check & calibrate all your RTD instruments. Automatic indication of connections on the display for simple hookups. Choose a single RTD type for the Model 510B or simulate 10 RTD types with the Model 511B.
  • Page 2: Basic Operation

    Low battery is indicated by “BAT” on the display. (Optional Boot Shown) Approximately one to four hours of typical operation remain before the PIECAL 510B/511B EZ-CHECK™ SWITCH will automatically turn off. To change the batteries; SOURCE: Instantly output two preset RTD remove the optional rubber boot, remove the temperatures by moving the EZ-CHECK™...
  • Page 3 Configuration Configure the Calibrator EXIT MENU - exits this menu immediately and saves any changes. Menu will automatically exit POWER SWITCH to “SOURCE”. Move after 15 seconds of inactivity (countdown timer is displayed). TEMP UNITS - pressing the knob will toggle MODEL 51# V#.## between °C and °F.
  • Page 4 1) Disconnect the RTD sensor from the device to be calibrated. 2) Select “SOURCE” with slide switch 3) Connect the PIECAL 510B/511B to the device using 2, 3 or 4 wires matching the connections 3 2 2 - 1 RTD SIMULATOR of the sensor that was just removed.
  • Page 5 Ranges & Accuracies Alpha Degrees C Accuracy Degrees F Accuracy Type Range °C Range °F Pt 100 Ohm (DIN/IEC/JIS 1989) 1.3850 -200.0 to 200.0 ±0.2° -328.0 to 392.0 ±0.4° Based on ITS-90 (0.00385) 200.0 to 600.0 ±0.3° 392.0 to 1112.0 ±0.6°...
  • Page 6 PIECAL 510B/511B Specifications (Unless otherwise indicated all specifications are rated from a nominal 23 °C, 70 % RH for 1 year from calibration) General Accuracy ±(0.015% of Setting in Ohms + 0.05 Ohms) Temperature Drift ± 0.05 Ohms/°C Operating Temperature Range -25 to 60 °C (-10 to 140 °F)
  • Page 7: Additional Information

    The equipment will be repaired, replaced or adjusted at our option. The liability of Practical Instrument Electronics (PIE) is restricted to that given under our warranty. No responsibility is accepted for damage, loss or other expense incurred through sale or use of our equipment.
  • Page 8: Ordering Information

    2 Red & 2 Black Leads with Retractable Shield Banana Plugs & Spade Lugs Optional: Part Number Rubber Boot 020-0209 Small Carrying Case with PIE Logo (fits unit with or without boot) 020-0205 Ni-MH 1 Hour Charger with 4 Ni-MH AA Batteries 020-0103 (100-120 V AC input for North America Only)

This manual is also suitable for:

Piecal 511b
