Summary of Contents for Pure Clean PUCRC850

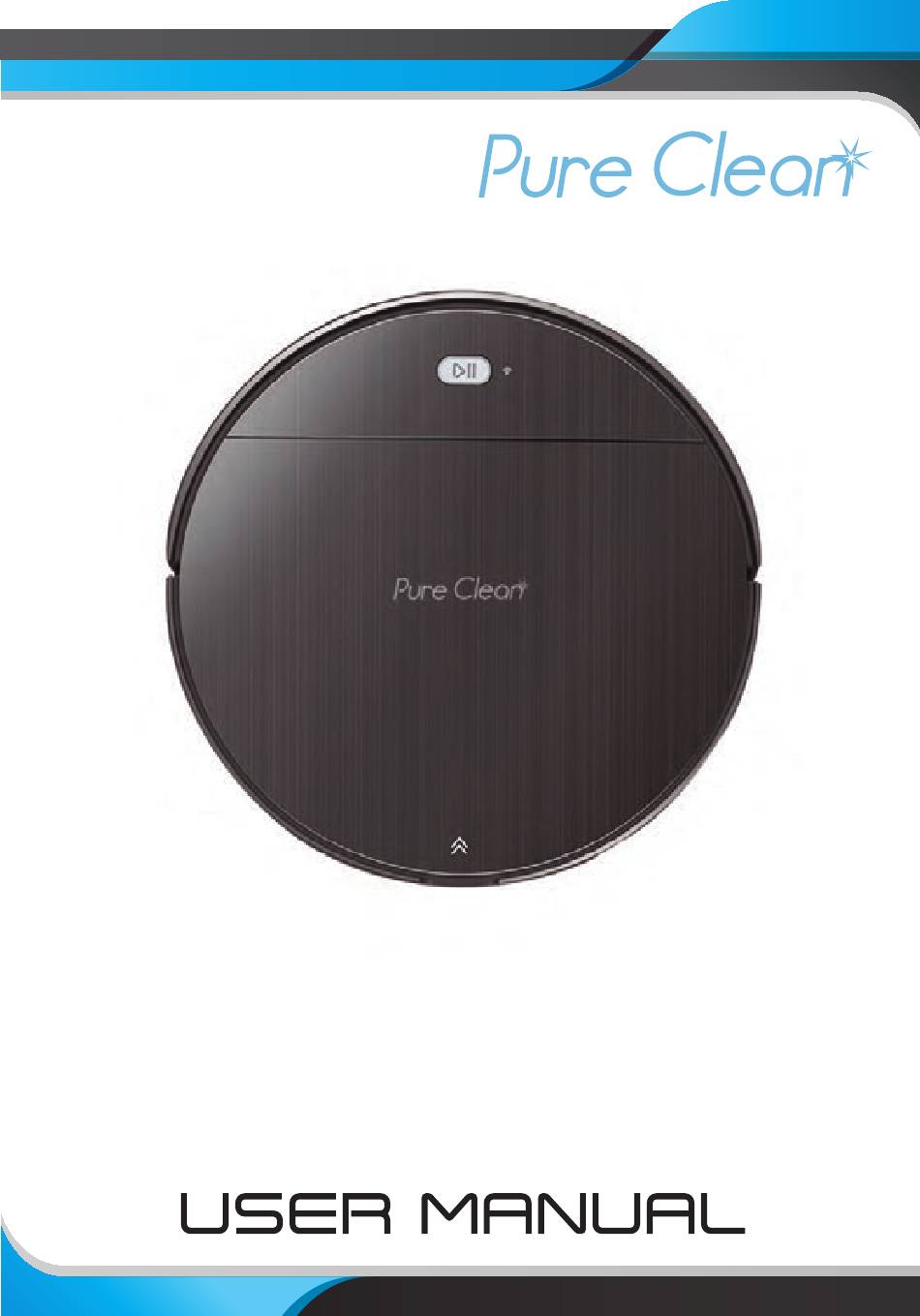

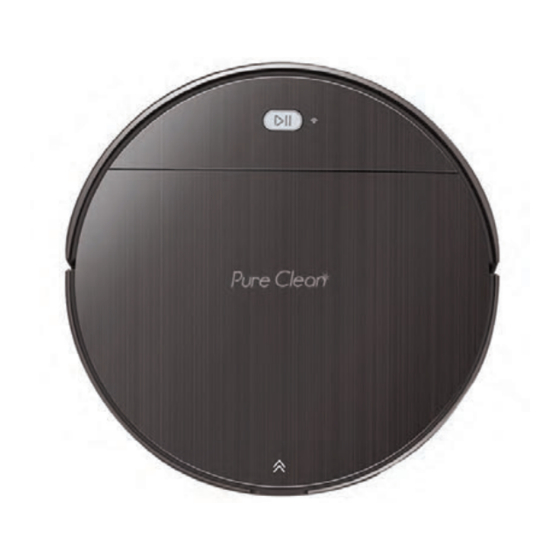

- Page 1 PUCRC850 Smart Vacuum Cleaner Automatic Robot Cleaning Vacuum with App Download and Remote Control...
- Page 2 Mop function only available with purchase of Water Tank Mopping Kit Pure Clean Model: PRTPUCRC8505 (Sold Separately) 1. Safety Instruction 2. Product Components 2.1 Name of Parts 2.3 Product Characteristics 3. Instructions for Use 3.1 WiFi Setup Instructions 3.2 Remote Controller Instructions 3.3 Operating Instructions...
- Page 3 • SAFETY INSTRUCTION Before using this product,please read the safety instructions below and follow all the routine safety precautions. Please read the instructions carefully and keep them for future reference. Any operation that does not conform to the instructions may cause damage to the product.
- Page 4 8. Please check carefully to see if the power adapter is connected to the socket prior to use, to avoid damage to the robot. 9. Before using the product, please remove all vulerable items on the oor, such as glass, lamps, and items such as wires and curtains that may entangle with the side brush and suction passages.
- Page 5 5. Do not disassemble the battery pack; doing so may cause battery rupture and electrolyte out ow, leading to re, explosion and other dangers. 6. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 6: Name Of Parts
High-efficient Filter Magnetic Strip Accessories of some models may be slightly di erent and they are subject to the actual received products. Mop function only available with purchase of Water Tank Mopping Kit Pure Clean Model: PRTPUCRC8505 (Sold Separately) www.PyleUSA.com... - Page 7 MAIN BODY 1. Bumper 2. Control Button 3. Decoration Panel 4. Middle cover MAIN BODY 1. Universal Wheel 2. Electrode Slice 3. Side Brush 4. Battery Cover 5. Suction Port 6. Chassis 7. Side Wheel 8. Water Tank with Mop www.PyleUSA.com...
- Page 8 MAIN BODY 1. Middle cover 2. Dust bin 3. DC power jack 4. Power switch DUST BOX 1. Dust Box Cover 2. Pre- lter 3. Dust Box 4. High-e cient Filter 5. Dust Box Gasket www.PyleUSA.com...
-
Page 9: Charging Dock
CHARGING DOCK 1. Charging indicator 2. DC power jack 3. Charging terminal MAGNETIC STRIP De ne the area to be vacuumed You can de ne any areas which the robot vacuum cleaner should not have access to. This Magnetic strips, as a barrier can help you to e ectively prevent your smart vacuum across the region you don’t need to clean. - Page 10 Mop function only available with purchase of Water Tank Mopping Kit Pure Clean Model: PRTPUCRC8505 (Sold Separately) WATER TANK COMPONENT 1. Mop 2. Velcro 3. Water input hole 4. Tank sealing cap www.PyleUSA.com...
-
Page 11: Product Features
PRODUCT FEATURES Powerful Suction: The Robot suction is powerful, even the allergens, pollens and particles can be vacuumed. Intelligent Suction Adjustment: The Robot can adjust suction power automatically in di erent cleaning mode, which improve e ciency grealy and save 30% power, the suction can be remote controlled. - Page 12 4. Con rm the family WIFI as shown in Figure 5 and enter the WIFI password. 5. Con rm the family WIFI as shown in Figure 5 and enter the WIFI password. Voice prompt "Robot is networking" and Wi-Fi light ashes. Enter “Networking mode”.
-
Page 13: Remote Controller Instruction
(Smart Cleaning) Direction Con rm Clock setting Single Room Cleaning Suction setting Mopping cleaning Edge Cleaning PRTPUCRC8505 model only (Sold Separately) Schedule Setting Mop function only available with purchase of Water Tank Mopping Kit Pure Clean Model: PRTPUCRC8505 (Sold Separately) www.PyleUSA.com... - Page 14 • INSTRUCTIONS FOR USE Plan Cleaning button No matter what mode the robot is in,this button will bring it to the plan cleaning mode. Return for Auto Charging Pressing this button to shift the mode as recharging, and the logo will be displayed on the screen of the remote controller.
- Page 15 • INSTRUCTIONS FOR USE Schedule Setting button At the standby mode, press this button to enter the Schedule Setting mode, and the display ashes icon . At the Schedule Setting mode, press this button to save the data and exit the Schedule Setting mode, and the display will always display the icon .
-
Page 16: Charging Modes
CHARGING MODES Please keep the power switch turned ON before charging the machine. Charge mode A: Fix the charging pin into the DC power jack of the robot and plug in the power supply. Please keep the power switch turned on before charging the machine. Charge mode B: Dock the Robot with the charging dock for charging When the control button ashes orange, the robot is charging;... -
Page 17: Automatic Charging
AUTOMATIC CHARGING Return for Auto Charging • Pressing the Return for Auto Charging on the remote controller to make the robot return for charging. • When Cleaning is completed or the battery is too low, the robot will automatically start nding the charging base to charge itself. •... -
Page 18: Switching Modes
SWITCHING MODES Standby Mode: The power is turned on, the indicator light ashes green, and the robot is standby. Sleep Mode: The power is turned on, Control button is o , and the robot is at rest. Working Mode: The robot is working; indicator light is in green all the time, enter cleaning mode. Operating Procedure: Sleep mode-Standby mode-Working mode Startup:... -
Page 19: Water Tank Assembly
WATER TANK USAGE When charging, please remove the water tank to avoid danger. WATER TANK ASSEMBLY There is corresponding velcro under the tank, x the absorbent mop to the bottom of the water tank according to the corresponding part, open the tank sealing cap, ll it with 1/2 or 2/3 clean water, and seal the lid of the water tank. -
Page 20: Cleaning Mode
CLEANING MODE Plan Cleaning (Smart Cleaning) The robot will perform the smart Plan Cleaning according to the room environment. Edge Cleaning The robot will clean along the longest edge of the room. Spot Cleaning The robot will perform the concentrated cleaning on a special dirty area. - Page 21 • PRODUCT MAINTENANCE SIDE BRUSH CLEANING AND REPLACEMENT Check the side brush's condition frequently to see if it has been damaged or entangled with other objects. Clean the side brush with a cleaning tool or cloth. When the side brush is damaged and can not be used,please replace it as soon as possible.
- Page 22 • PRODUCT MAINTENANCE Take out the High-e cient Filter Open the dust box cover and take out the pre- lter www.PyleUSA.com...
- Page 23 Dump all debris from the dust box into the garbage 1. Clean the dust box, high-e cient lter and pre- lter completely. 2. Dry the dust box and lter components. Keep them dry to ensure a longer service life. 3. After the pre- lter is used for 15-30days, it should be washed once. 4.
- Page 24 • PRODUCT MAINTENANCE Air all components till they are dry completely. Assemble the pre- lter and high-e cient lter in the dust box www.PyleUSA.com...
-
Page 25: Maintenance Of Other Components
Mop function only available with purchase of Water Tank Mopping Kit Pure Clean Model: PRTPUCRC8505 (Sold Separately) CLEANING OF WATER TANK AND MOP Remove the mop like the picture. Rinse it thoroughly and lay it out for airing. Please do not use the dripping mop directly, so as to avoid the product slipping and causing danger. - Page 26 • PRODUCT MAINTENANCE Charging Terminal Use a cleaning tool or soft cloth to clean the charging base terminal Use a cleaning tool or soft cloth to clean the suction port periodically www.PyleUSA.com...
- Page 27 • COMMON FAULTS FAULTS DESCRIPTION Possible Reasons Solutions Faults The electrodes between the main body Make sure that the electrodes between and the charging base are not contacted the main body and the charging base properly. are properly contacted. The robot can not be charged.
-
Page 28: Warning Code
WARNING CODE When the machine occurs some common faults,the red light is always on and robot • beeps. ( times of the beep) Item Warning Faults Solution driving wheel Check driving wheel and or side brush error side brush. Clean the ground detection ground detection sensor sensor, check the bumper or bumper error... -
Page 29: Replaceable Modules
Left Side Wheel Universal Wheel Component Component Right Side Brush Left Side Brush Bottom Shell Lithium Battery Battery Cover Scraper Pressing Plate Mop function only available with purchase of Water Tank Mopping Kit Pure Clean Model: PRTPUCRC8505 (Sold Separately) www.PyleUSA.com... - Page 30 Slim Low-Pro le Housing Slides Underneath Furniture • Perfect for the Home or O ce • *Unlock Wet Mop Floor Clean Ability with the Water Tank Mopping Kit, Pure Clean Model: ‘PRTPUCRC8505’ (Sold Separately) What’s in the Box: • Smart Robot Vacuum •...
- Page 31 Battery Operated Remote: (2) x ‘AAA’ , Not Included • Power: 100-240V (19V Power Adapter) • Dimensions (L x W x H): 12.5’’ x 12.5’’ x 3.1’’ –inches Mop function only available with purchase of Water Tank Mopping Kit Pure Clean Model: PRTPUCRC8505 (Sold Separately) www.PyleUSA.com...
