Always use a network cable (at least Cat.5e) for CAN communication and communication to
the inverter. Isolate unused wires separately to prevent short circuits.
Please find wiring diagrams for all different SwitchBox types in the Installation In-
structions MyReserve SwitchBox by enwitec (see also included documents). This is
for your information only and does not involve any steps of the in installation of the
MyReserve Backup Power.
8 Commissioning
• Enable the power supply by switching on the main fuse and all other fuses in the house dis-
tribution and switch on the residual current switch in the switchbox.
• Commission the devices in the following sequence
1. Switch off the DC circuit breaker on the inverter
2. Switch on the AC supply on the inverter
3. Switch on MyReserve Command's DC circuit breaker
4. Wait until the inverter has reached his operating point
5. Switch on the AC power supply for MyReserve Command (F1 in SwitchBox )
6. Plug in the UPS and switch it on
7. Plug MyReserve Command into the UPS in one of the provided sockets

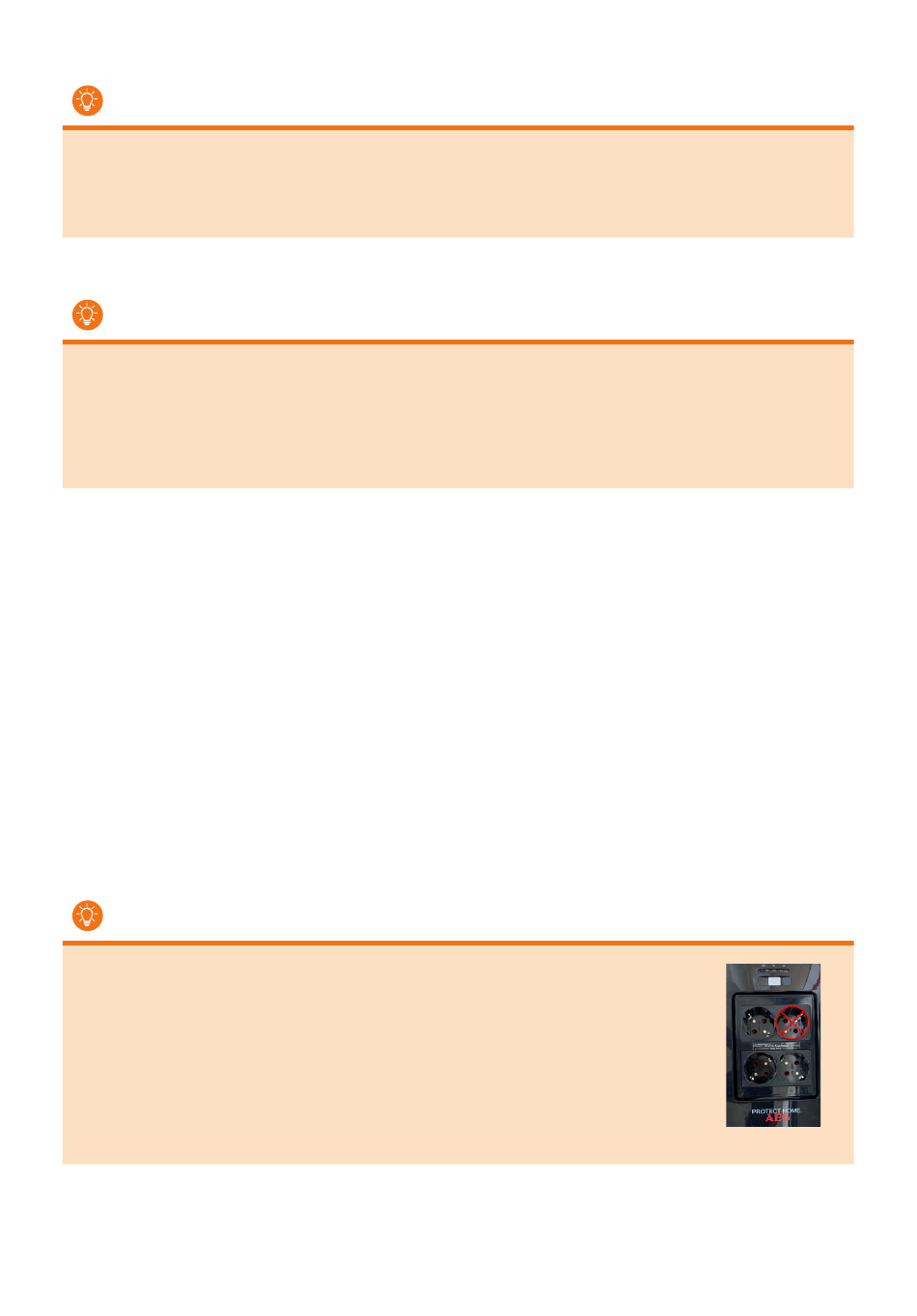

The power socket of the UPS marked red in the figure is not supplied
during a power failure.
Therefore, use one of the other socket slots for connection with the
MyReserve Command.
