6

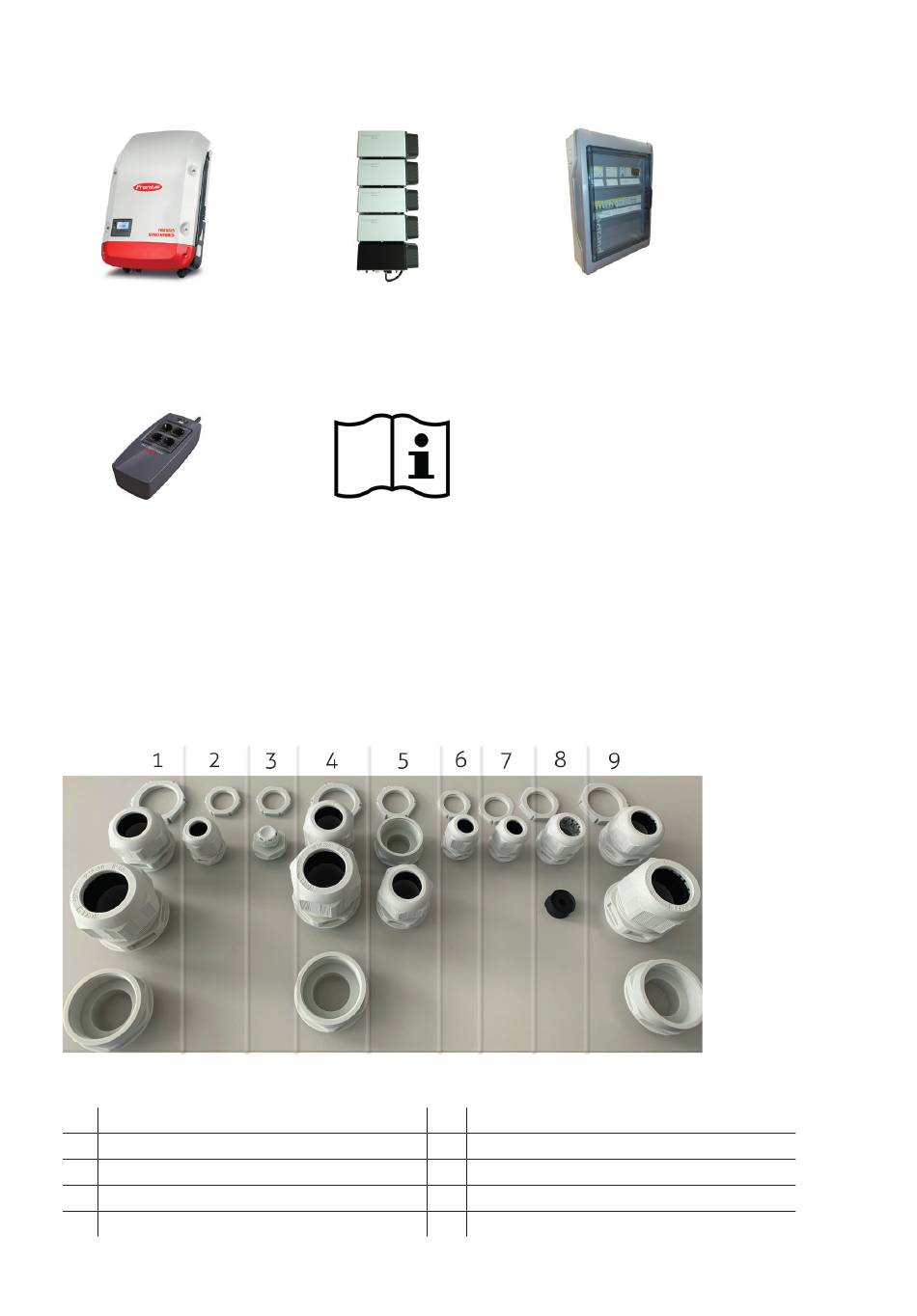

System components
Fronius Symo Hybrid
3.0-3-S or
4.0-3-S or
5.0-3-S
Uninterruptible power
supply (UPS)
* Overview of supplied cable glands
1
M32/M40 - X1 grid
2
M20 - earthing
3
M12/M20 Membrane (pressure equalization) 8
4
M32/M40 - X2 House
5
M32 - x4 Inverter
MyReserve
7,2 kWh (3 MyReserve Packs) or
9,6 kWh (4 MyReserve Packs) or
12 kWh (5 MyReserve Packs)
Installation guide
6
7
9
DATE: 07/2019 | Rev. 000 | AZ-TM-PME-1693 | Subject to changes | © 2019 SOLARWATT GmbH | PAGE 21
SwitchBox incl. Cable
glands*
M20 - X5 Com Inverter
M20 - X6 CAN EM
M25 with sealing insert - CAN MyReserve
M32/M40 - X3 Backup
