3 - XY Transport Module Replacement Procedure

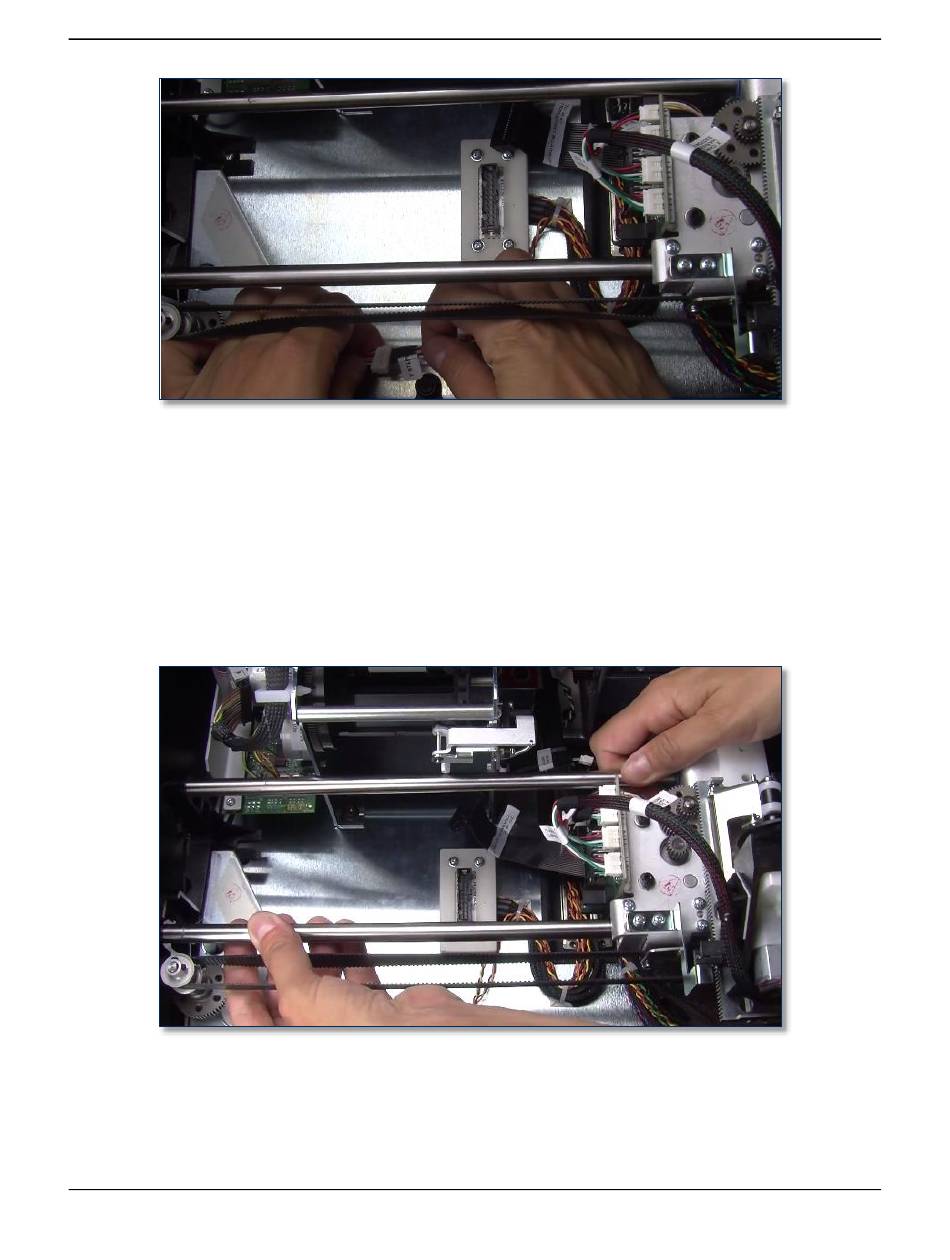

Figure 3-4 - XY Transport Y Stepper Connection Cable (TOP VIEW FROM LEFT)
9) Use the 1/8" Allen wrench to remove the three screws securing the XY transport to the top deck plate
near the rear of the device (see Figure 3-1) and set them aside.
10) Move the XY transport toward the rear of the device (see 99875607 ExpressCard 2000 Hardware
Service Manual for details).
11) Use the 1/8" Allen wrench to remove the three screws securing the XY transport to the top deck plate
near the front of the device (see Figure 3-1) and set them aside.
12) Use both hands on the rails to carefully lift the XY transport module out of the device, making sure
no cables catch on any other modules, and set it aside.
