Installation and operating
instructions

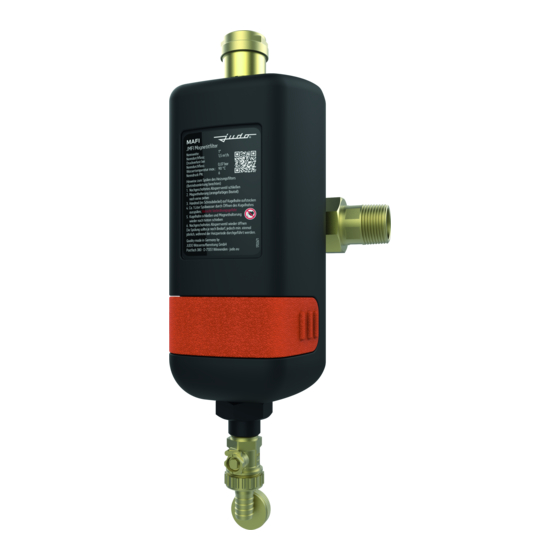

JUDO MAFI Magnetite filter
Heating loop filtration with magnetic and centrifugal extraction and
integrated aeration unit
Valid for: EU countries and Switzerland
Language: English
Fig.: JMFI ¾" - 1¼"
Fig.: JMFI 1½"
Advertisement
Table of Contents
Related Manuals for Judo MAFI Series
Summary of Contents for Judo MAFI Series
- Page 1 Installation and operating instructions JUDO MAFI Magnetite filter Heating loop filtration with magnetic and centrifugal extraction and integrated aeration unit Valid for: EU countries and Switzerland Language: English Attention: Carefully read through the instal- lation and operating instructions and safety information before installing and putting the unit into service.
- Page 2 (see back page). Trademarks: Trademarks used in this document are protected and registered trademarks of the respective holder. © JUDO Wasseraufbereitung GmbH 71364 Winnenden Germany All rights reserved. Reprints – even of extracts – is only permitted with special approval.
-
Page 3: Table Of Contents
9.5 Scope of supply ......19 Therefore, this instruction manual must 9.6 Accessories ....... 19 always be read by the fitter and responsible 10. Spare parts........20 skilled personnel/owner or operator before 11. Customer service ......24 JUDO MAFI... -
Page 4: Symbols Used
Units used In derogation of the International System of Units SI (Système International d’Unités), the following units are used: Units Conversion 1 bar = 10 Pa = 0.1 N/mm² 1" DN 25 JUDO MAFI... -
Page 5: Intended Use
(IP44). The magnetite filter is only to be used in a technically perfect condition, for its intended use, safely and aware of the dangers and with full observance of the instruction manu- Have any malfunctions corrected imme- diately! JUDO MAFI... -
Page 6: Product Information
A space of at least 250 mm ability of this unit for use with heating wa- should be maintained above and below the ter conditioning agents used by you. magnetite filter. These distances are neces- sary to obtain an efficient rinse (see chapter “Rinsing”). JUDO MAFI... -
Page 7: Installation Position
3 JUDO QUICK-AN Adaptor for dosing with QUICK-DOS (order no.: 8838188) 4 JUDO QUICK-DOS L / JUDO QUICK-DOS R / JUDO QUICK-DOS PLUS / JUDO QUICK-DOS MINUS Cleaning and protection agents for heating circuits (order no.: 8838185 / 8838186 /... - Page 8 3 JUDO QUICK-AN Adaptor for dosing with QUICK-DOS (order no.: 8838188) 4 JUDO QUICK-DOS L / JUDO QUICK-DOS R / JUDO QUICK-DOS PLUS / JUDO QUICK-DOS MINUS Cleaning and protection agents for heating circuits (order no.: 8838185 / 8838186 /...
-
Page 9: Mounting The Built-In Rotary Flange
In this case, people close to the magnetite filter are exposed to a health risk due to the large quantities of water. Therefore, during installation, ensure that no large forces act on the pipe, built-in rotary flange and magnetite filter. JUDO MAFI... -
Page 10: Discharging The Rinse Water
Danger of scalding! – In this case, damage to property close to the magnetite filter is possible. – The bucket must be adequately dimen- sioned. Danger, hot surface! JUDO MAFI... -
Page 11: Operation
– The magnetite filter is ready for opera- 1 Cover cap tion once the rinsing and aeration cycle 2 Aeration unit has been completed and the shut-off 3 Splitter valve downstream of the unit has been 4 Ball valve opened. JUDO MAFI... - Page 12 1 High performance magnets 2 Magnetic sludge Fig. 6: Magnetic separator in operation JUDO MAFI...
-
Page 13: Cleaning The Magnetic Separator
10 seconds and the unit rinsed (see chapter “Rinsing”). 10 s Fig. 7: Cleaning the magnetic separator Failure to close the shut-off valve downstream of the filter before clean- ing will result in sludge being returned to the heating loop. JUDO MAFI... -
Page 14: Rinsing
Pressure levels in the system and in the expansion vessel should be set before commissioning the magnetite filter and checked and adjusted at least once per year. JUDO MAFI... -
Page 15: Stoppages
Leaking water can cause major damage to the building. In addition, people near the magnetite filter can be injured by breaking off filter parts. – When restarting the magnetite filter, fol- low the instructions for a new magnetite filter. JUDO MAFI... -
Page 16: Faults
Wait for correct water tem- ating temperature of the heating wa- perature! ter has not yet been reached. Rinse water very Rinse intervals are too long. Reduce rinse intervals! dirty. Magnetite filter Inform the fitter or nearest leaks. customer service centre! JUDO MAFI... -
Page 17: Maintenance
Domestic all-purpose cleaners and glass cleaners can contain up to 25 % solvents or alcohol (spirits). These substances can chemically attack the plastic parts, which can lead to brittleness or even fractures. These kinds of cleaners must therefore not be used. JUDO MAFI... -
Page 18: Data Sheet
Data sheet Data sheet Nominal pressure Model Operating Nominal pressure pressure Type JMFI 1 – 6 bar PN 6 JUDO MAFI Magnetite filter Abbreviated name: JMFI Weight Model Weight Models JMFI ¾" 2.1 kg JMFI 1" 2.3 kg Model Order no. -
Page 19: Installation Dimensions
– Heating resupply station JHF-F PLUS F = Waste water connection centre (order no. 8060080) to pipe centre The JUDO HEIFI-FÜL PLUS heating resup- F1 = Distance waste water connection ply station consists of two integrated shut-off centres valves, pressure regulator, manometer and G = Connection dimension waste water pipe disconnector, type BA. -
Page 20: 10. Spare Parts
Spare parts 10. Spare parts JUDO MAFI... - Page 21 17 Union nut 18 Safety ball valve 1) AU = accounting unit (Items without AU are only available in a set.) 2) Accounting unit not specified at the time of going to press. Replacement interval: **** = 4 years JUDO MAFI...
- Page 22 Notes JUDO MAFI...
- Page 23 Notes JUDO MAFI...
-
Page 24: 11. Customer Service
