Installation and
Operating Instructions
JUDO PROFI
Backwash Protective Filter DN125 - DN200
Valid for: EU countries and Switzerland
Language: English

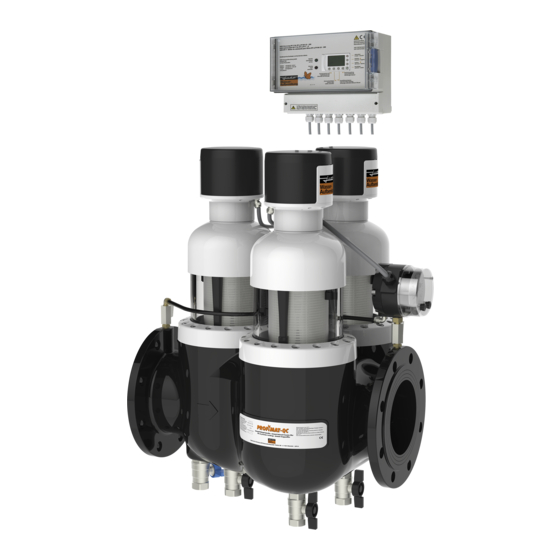

Fig.: JPF DN125 - DN200
Advertisement
Table of Contents
Related Manuals for Judo PROFI JPF DN125
Summary of Contents for Judo PROFI JPF DN125
- Page 1 Installation and Operating Instructions JUDO PROFI Backwash Protective Filter DN125 - DN200 Valid for: EU countries and Switzerland Language: English Attention: Carefully read through the instal- lation and operating instructions and safety information before installing and putting the unit into service.
-
Page 2: Installation
If installing into a vertical line , the coarse To ensure easy operation and maintenance particles, deposited in the grit trap can’t be JUDO PROFI... -
Page 3: Installation Example
[same dimension as connection [for example a floor drainage] in the rinse water valve] a few meters away to accordance with DIN 1986 must be in place. the next wastewater connection. When piv- If a wastewater connection directly under JUDO PROFI... -
Page 4: Operation
At the same time the rinse wa- ter consumption is reduced. With a flush valve opened to one hundred percent and a pressure between 2 bar and 3 bar the back- wash volume current amounts to approx. 1 liters/per second concerning. JUDO PROFI... -
Page 5: Technical Data
Nominal Pressure: 10 bar Operating Pressure: 1.5 bar - 10 bar Backwash Protective Filter The nominal pressure denotes the pressure JUDO PROFI DN125 - DN200 class, according to which the filter must fulfil Abbreviated name: the German requirements (DIN 19632-100 and DIN EN 1334-1). - Page 6 Spare Parts JPF DN125 - DN200 Spare Parts JPF DN125 - DN200 JPF DN125 two filterunits JPF DN150 three filterunits JPF DN125 four filterunits JUDO PROFI...
- Page 7 Spare part set consisting of item. 11, 13, 14, 15, 17, 22 2010226 1) VE = Unit of Billing Replacement interval: ** = 2 years, *** = 3 years, **** = 4 years Extended warranty period if a maintenance agreement is concluded! JUDO PROFI...
- Page 8 Tel. +43 (0)22 66 / 6 40 78 • Fax +43 (0)22 66 / 6 40 79 e-mail: info@judo-online.at • www.judo-online.at JUDO Wasseraufbereitung GmbH • Filiaal / Filiale BeNeLux Avenue du Laerbeek - laan, 72 A1 • B-1090 Brussel / Bruxelles Tel.
