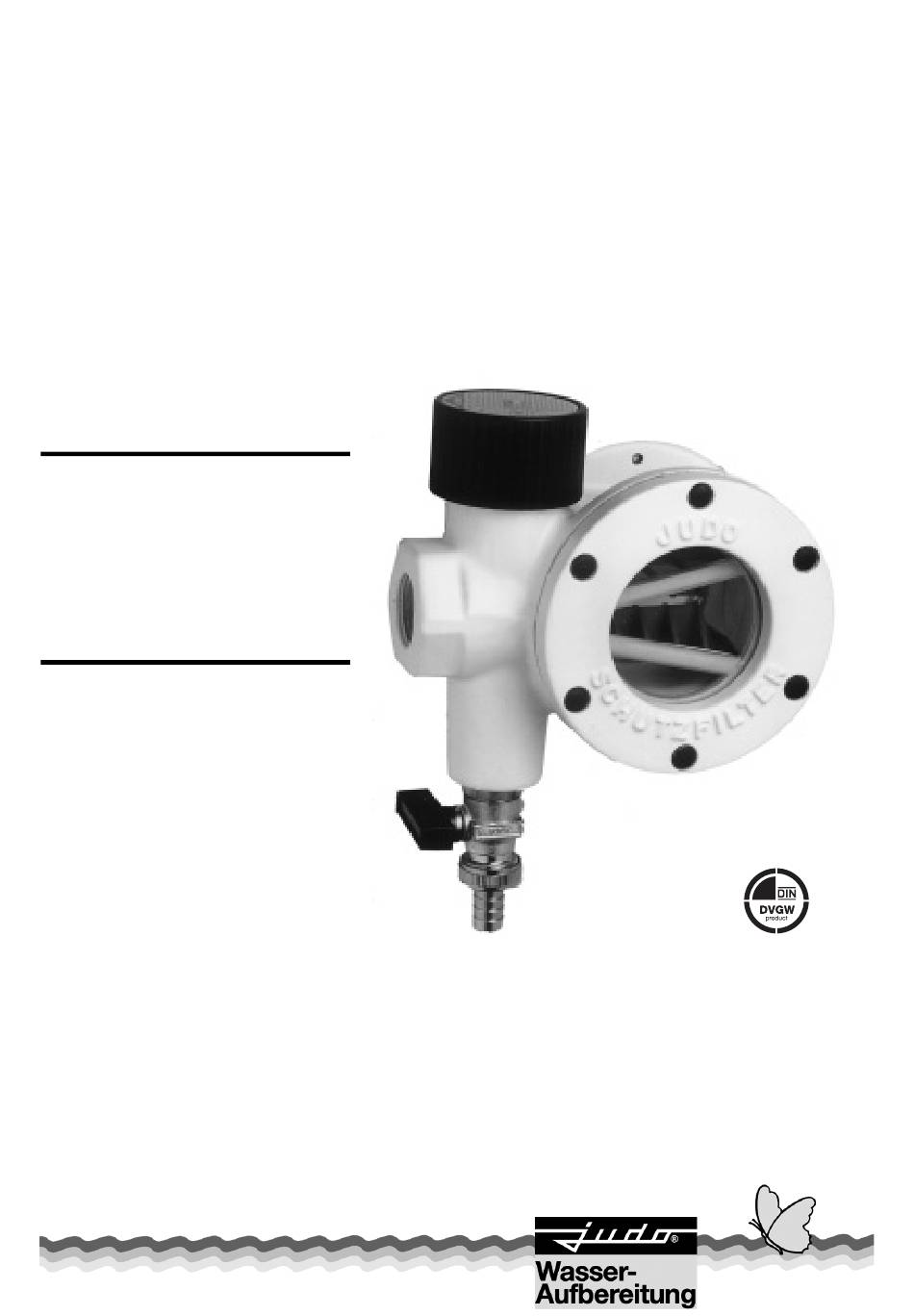

Installation and
Operating Instructions
JUDO JRSF
Backwash Protective Filter 1" - 2"
Valid for: EU countries and Switzerland
Language: English
1
- 2
Fig: JRSF
"
"

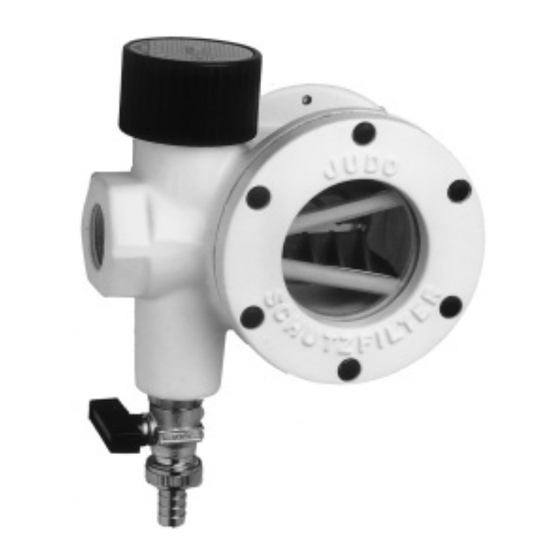

Fig.: JRSF 1" – 2"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JRSF 1" and is the answer not in the manual?

Questions and answers

Related Manuals for Judo JRSF 1"

Summary of Contents for Judo JRSF 1"

  • Page 1 Installation and Operating Instructions JUDO JRSF Backwash Protective Filter 1" - 2" Valid for: EU countries and Switzerland Language: English Attention: Carefully read through the instal- lation and operating instructions and safety information before installing and putting the unit into service.
  • Page 2 See back page. D-71364 Winnenden Trademarks: Trademarks used in this document are protected and registered trademarks of the respective hold- © JUDO Wasseraufbereitung GmbH D-71351 Winnenden All rights reserved. Reprints – even of extracts – is only permitted with special approval.

  • Page 3: Table Of Contents

    Enclosure: Consultation Voucher Apart from the instruction manual and the le- gally binding accident prevention provisions applicable in the country and place of use, the recognized technical regulations for safe and proper work must also be observed. JUDO JRSF...

  • Page 4: Symbols Used

    – Danger to persons due to electrical and The filter has been developed and manufac- mechanical effects. tured using state of the art technology and – Danger to persons and the environment the established safety regulations in Germa- due to leaks. JUDO JRSF...

  • Page 5: Water Pressure

    There- fore any electrical devices / equipment situ- ated in the direct vicinity should be splash- water proof, respectively comply with the statutory requirements for wet areas (IP44). JUDO JRSF...

  • Page 6: Product Information

    (see chapter in accordance with the requirements of DIN “Backwashing”). 19632 pressure stage PN 16 for mechanical filters for use in drinking water and are enti- tled to bear the DIN-DVGW mark (see Fig. JUDO JRSF...

  • Page 7: Discharging The Backwashing Water

    Floods and serious water damage to house installations can therefore be avoided. – The unit can be installed in all standard drinking water pipes. – It is not permitted to install the filter upst- ream of the water meter! JUDO JRSF...

  • Page 8: Operation

    The filter removes all coarse and fine- grained impurities which cause pitting in cold-water and hot-water supply lines and may lead to the malfunctioning of fitting and control elements, as well as sensitive instru- ments. Fig. 3: Backwashing water discharge options JUDO JRSF...

  • Page 9: Backwashing

    Dirty water can- not get into the clean water side Both the degree of soiling and the during backwashing. cleaning process can be observed from the outside. JUDO JRSF...
  • Page 10 (2), so that the arrow on the hand valve points to the direction of flow. Close the ball valve. In case of high water pressure, it is advisable not to fully open the ball valve in order to reduce the consumption of flushing water. JUDO JRSF...

  • Page 11: Modifications / Changes / Spare Parts

    If a filter has to be removed from the flange or unscrewed, the chapter "Intended use" must always be observed! – Protect the flange surfaces from dam- age! Damaged flanged surfaces cannot close tight. As a result, escaping water can damage the building and installa- tions. JUDO JRSF...

  • Page 12: Faults

    Domestic all-purpose cleaners and glass by the specialist trade or the factory’s cus- cleaners can contain up to 25% solvents or tomer service department. alcohol (spirits). Such cleaners must therefore not be used. JUDO JRSF...

  • Page 13: Data Sheet

    Data Sheet Data Sheet Nominal Pressure Operating Nominal Type Model Pressure Pressure JUDO JRSF Backwash Protective Filter JRSF ¾" – 2" 1.5 – 10 bar PN 16 Abbreviated name: JRSF Models Weight Model Order No. Model Weight JRSF 1" 8030081 JRSF 1"...

  • Page 14: Spare Parts Jrsf 1" - 2

    Spare Parts JRSF 1" - 2" 10. Spare Parts JRSF 1" - 2" JUDO JRSF...
  • Page 15 25 Spherical faucet, complete, JRSF 1" & 1¼" 1610006 26 Spherical faucet JRSF 1½" & 2" 1610252 27 Hose nozzle JRSF 1½" & 2" 1440060 VE = Unit of Billing Replacement interval: **** = 4 years Extended warranty period if a maintenance agreement is concluded! JUDO JRSF...

  • Page 16: Customer Service
