b. Move the battery locking tab down to pull the battery out of the controller canister.

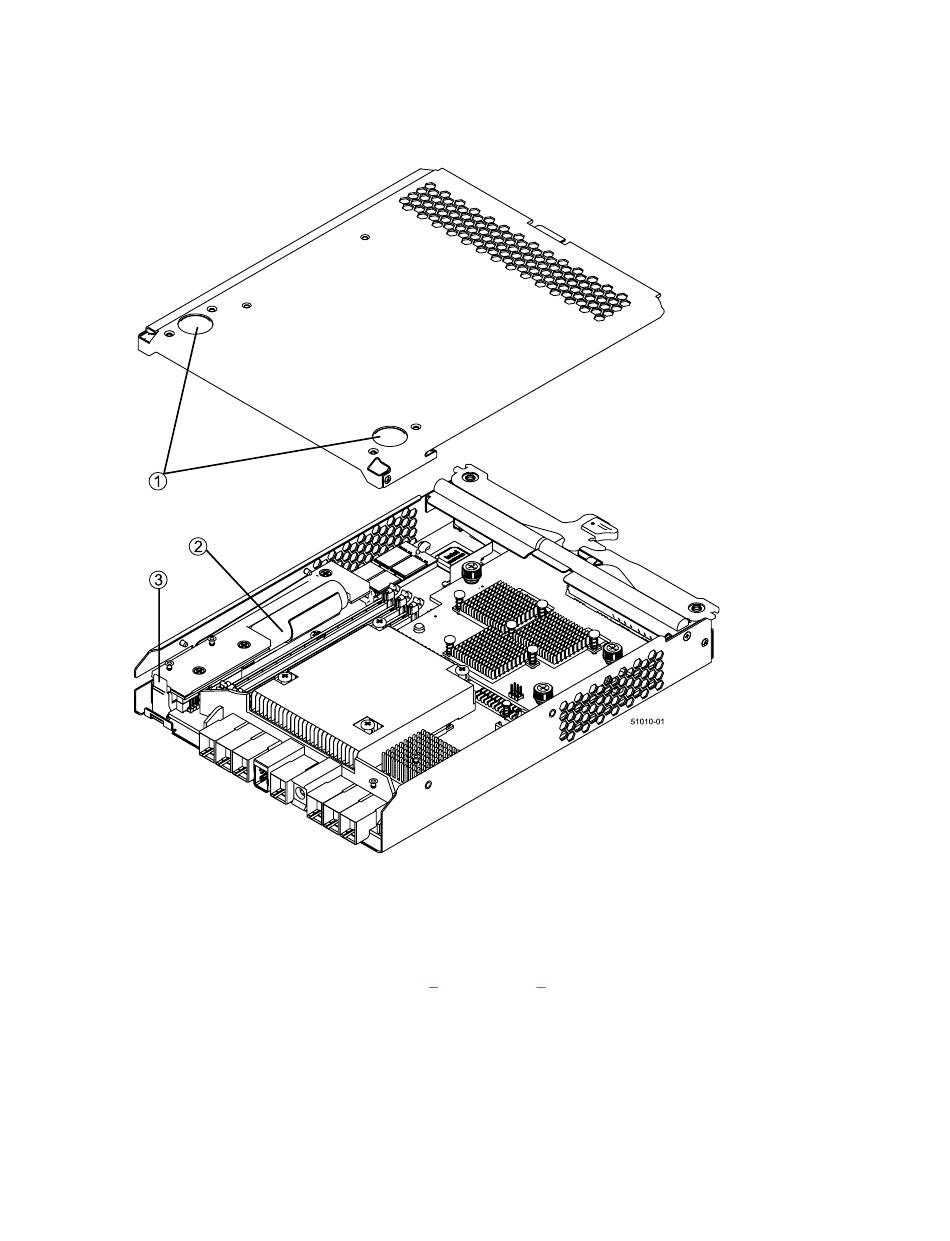

Figure 2. Controller Cover and Internal Parts

1. Top Cover Latch Buttons

2. Battery Circuit Board

3. Battery Locking Tab

c. Remove the controller battery by sliding it towards the rear of the controller canister.

7. For a duplex controller-drive tray, repeat step

Installing a Controller Canister in the E5600 Controller-Drive Tray

1. Unpack a new controller canister.

a. Set the new controller canister on a flat, static-free surface near the controller-drive tray with the top cover up.

b. Save all of the packing materials so that you can ship the old controller canister.

through step

for controller B.

Replacing Controller Canisters in the E5660 Controller-Drive Tray to Update HICs - 5
