b. Using the release levers and your hands, pull the controller canister out of the controller-drive tray.

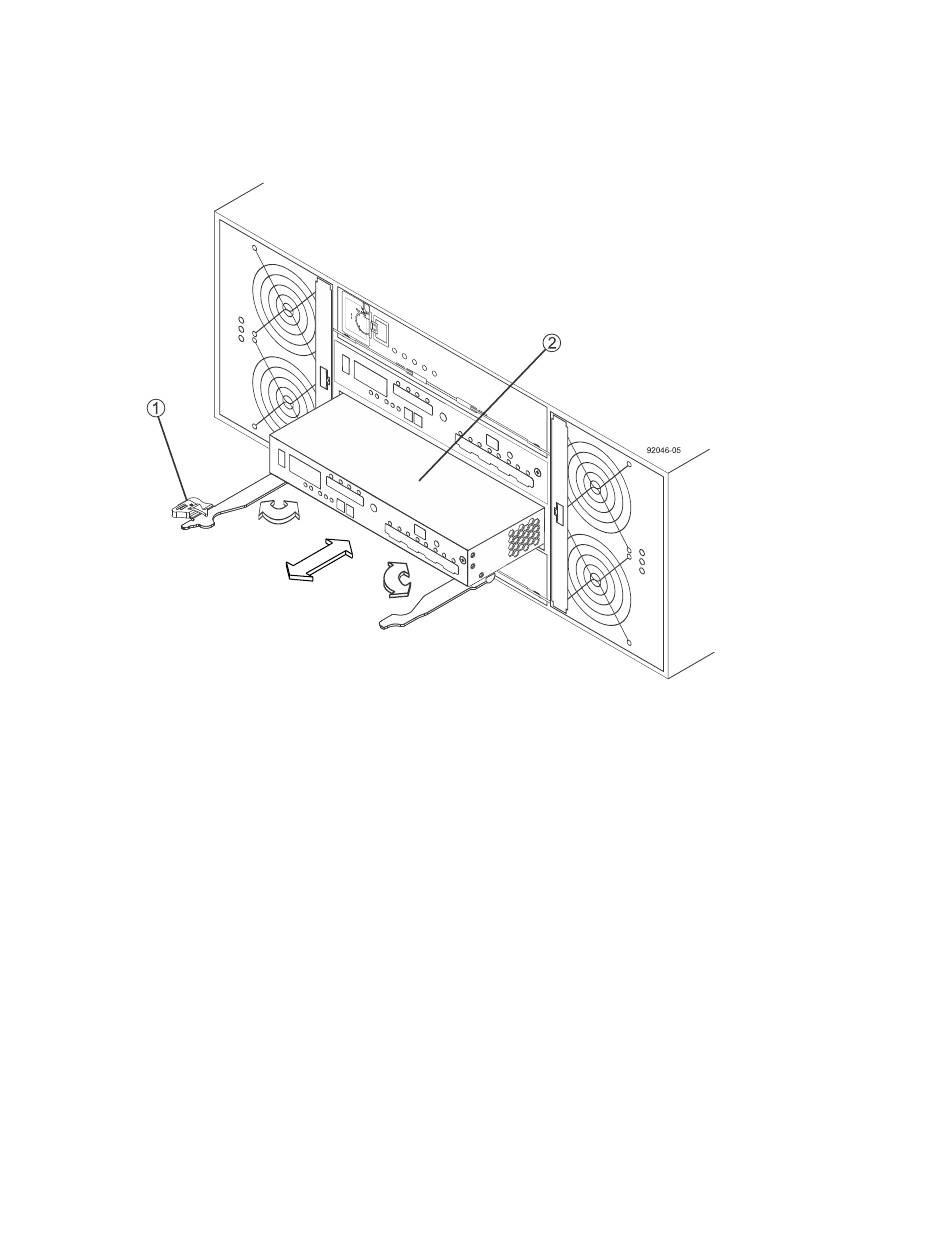

Figure 1. Removing and Replacing a Controller Canister

1. Release Levers

2. Controller Canister

c. Set the controller canister on a flat, static-free surface with the release levers up.

6. Remove the battery from the controller canister by performing these steps:

a. Press down on both of the top cover latch buttons as you slide the top cover off the controller canister.

4 - Replacing Controller Canisters in the E5660 Controller-Drive Tray to Update HICs
