Important Hardware Additional Information
STM32 Nucleo with Expansion boards - Hardware overview (4/4)
7

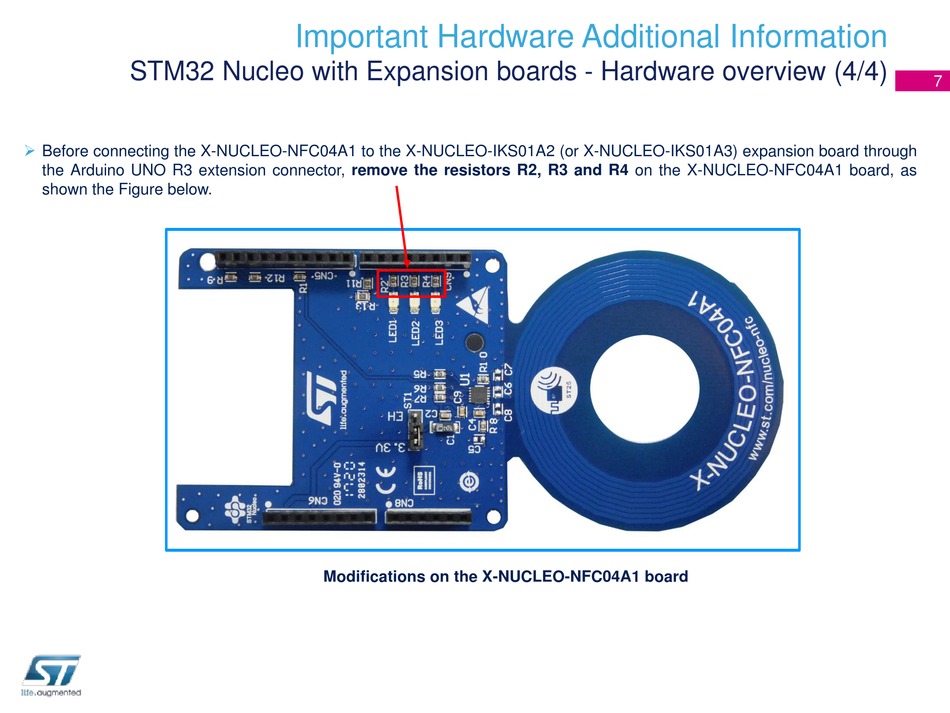

Before connecting the X-NUCLEO-NFC04A1 to the X-NUCLEO-IKS01A2 (or X-NUCLEO-IKS01A3) expansion board through
the Arduino UNO R3 extension connector, remove the resistors R2, R3 and R4 on the X-NUCLEO-NFC04A1 board, as
shown the Figure below.
Modifications on the X-NUCLEO-NFC04A1 board
