ST FP-SNS-SMARTAG1 Quick Start Manual page 12

HW prerequisites and setup with ST NFC SensorTag (1/2)
•

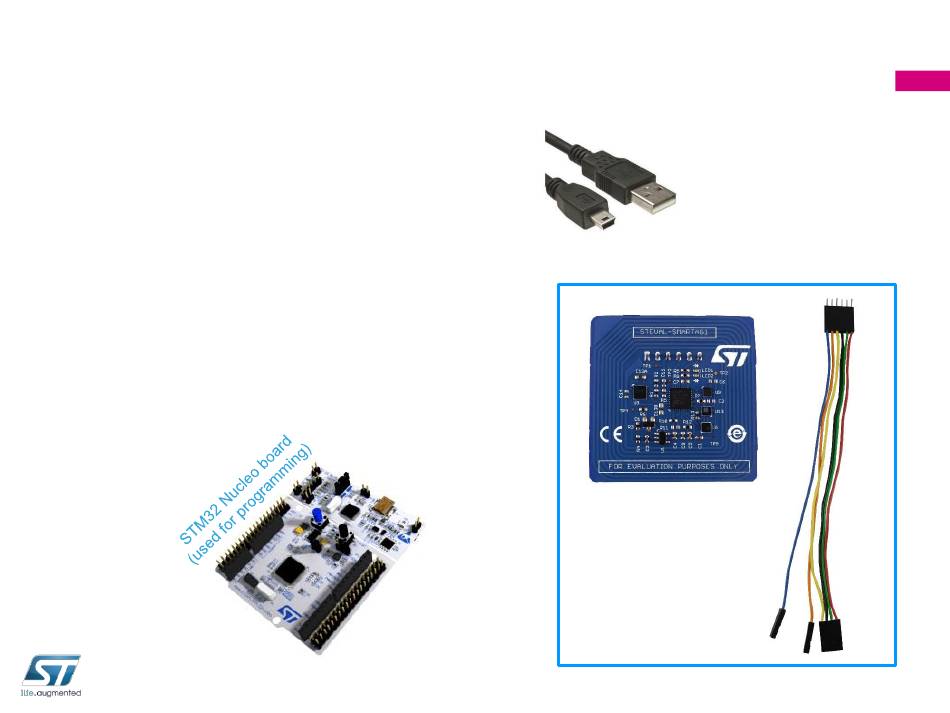

1x ST NFC SensorTag kit (STEVAL-SMARTAG1)
•
It includes SWD connector with a 6pin flat
• 1x Android™ or iOS™ device with ST NFC Sensor app
installed
•
1x PC with Windows 7 and above
•
1x STM32-Nucleo or ST-Link programmer
•
1x USB type A to Mini-B USB cable for the ST-Link
Setup & Demo Examples
Mini USB
1 – RED (VDD)
2 – GREEN (SWCLK)
3 – BLACK (GND)
4 – YELLOW (SWIO)
5 – ORANGE (NRST)
6 – BLUE (USART2_TX)
ST NFC Dynamic Tag sensor node evaluation board
12
6 5 4 3 2 1
