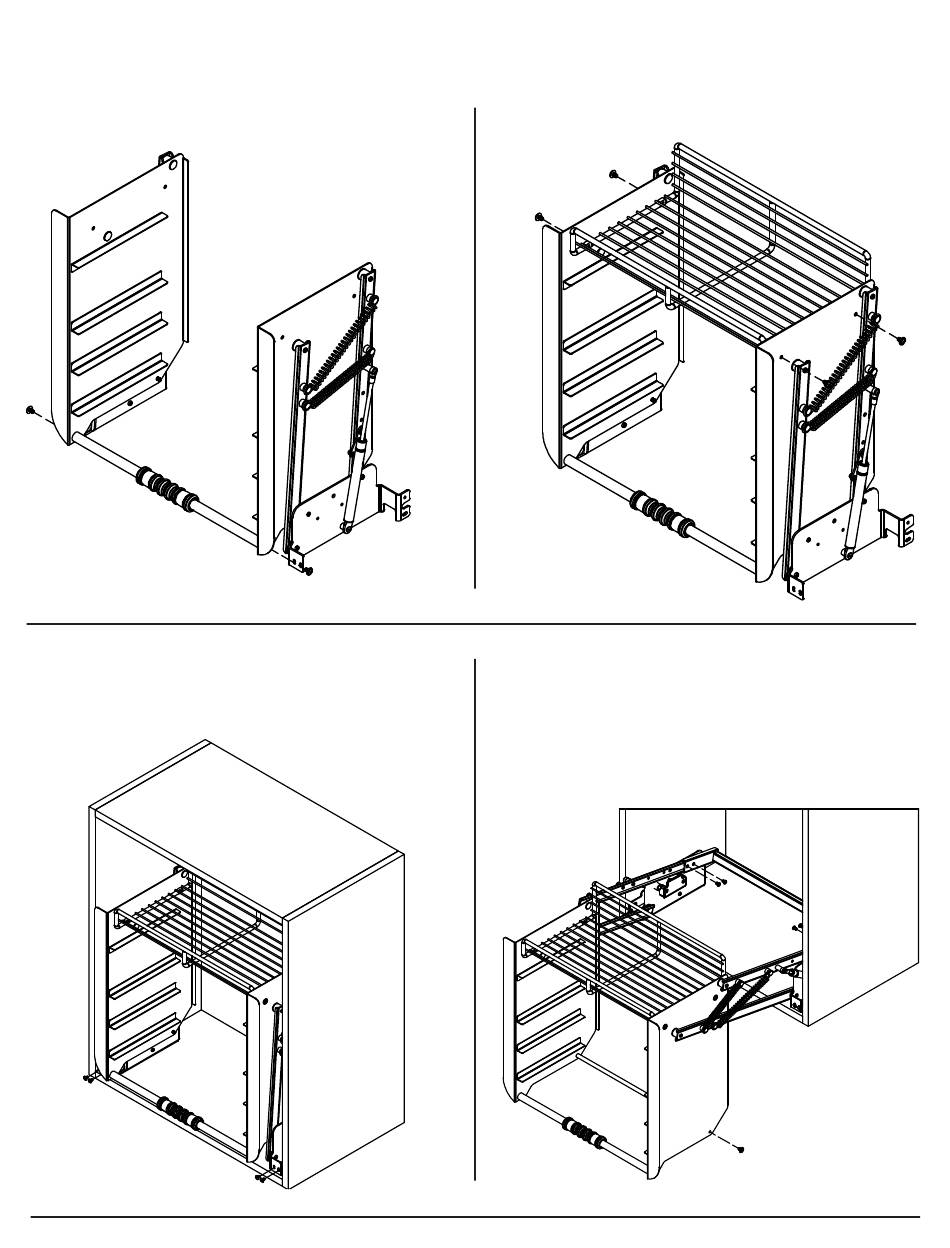

Step 1.
1) Remove the screw from each end of part (E).
Using these 2 screws, attach the front handle (E) to
the Left (C) and Right (D) Kit.
Step 1.
Step 1.
Step 1.
Step 1.
Step 3.
Step 3.
Step 3.
3) You can now place the unit inside your cabinet
and attach to the Left and Right Base Brackets using
4 of the M4x6 Machine Screws (#6).
Step 3.
Step 3.
Step 2.
2) Remove the four screws from Wire Basket (F). Attach
Wire Basket (F) to Left (C) and Right (D) Kit.
Step 2.
Step 2.
Step 2.
Step 2.
Step 4.
Step 4.
Step 4.
4) Once you have secured the unit to the Left and Right
Base Brackets with the M4x6 screws, you can then pull
the unit forward and out of your cabinet. Attach the
back Strap (G) to the arms of the pull down using 4 of
Step 4.
the M4x6 Screws (#6).
Step 4.
3
2014032
20140328-1
20140328-1
20140328-1
20140328-1
2/3
2/3
2/3
2/3
I-5UPD-TRI-0315
