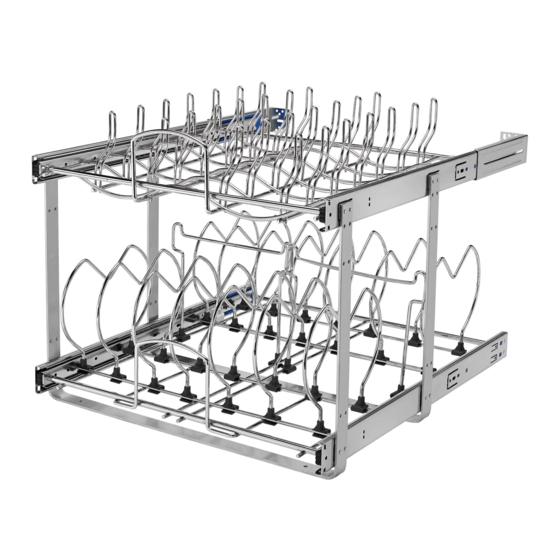

CO AND 5CW2 SERIES
Note 1: Be sure to measure cabinet opening and basket width to make sure basket will clearly pull out of the cabinet without interference.
Note 2: All cabinets are built and constructed differently, some have a built-in shelf that is not easily removeable. This organizer can still be
installed with the shelf in place, but note some taller items could hit the shelf when opening and closing.
TOOLS REQUIRED:
#2
#2
#2
ESTIMATED ASSEMBLY TIME:
20 MIN
CARE AND MAINTENANCE:
Clean with a damp cloth and wipe
parts dry.
WATCH TUTORIALS OF OUR
PRODUCTS BEING INSTALLED
WWW.REV-A-SHELF.COM/VIDEOS
PARTS LIST
No.
Description
A
Dividers*
B
Handle Bar*
C
U-Shaped Support Brackets
D
Upper Slide Shelf
E
Lower Slide Shelf
F
#8 X 3/4" Truss Head Screws
G
M4 X 8 Flat Head Machine Screws
H
#8 x 1/2" Pan Head Wood Screws
* CO-15 and 5CW2-1222 Series come with 7 Dividers and 1 Handle Bar.
CO-21 and 5CW2-2122 Series come with 14 Dividers and 2 Handle Bars
**Extra screws are provided in case one is lost or misplaced.
D
C
H
G

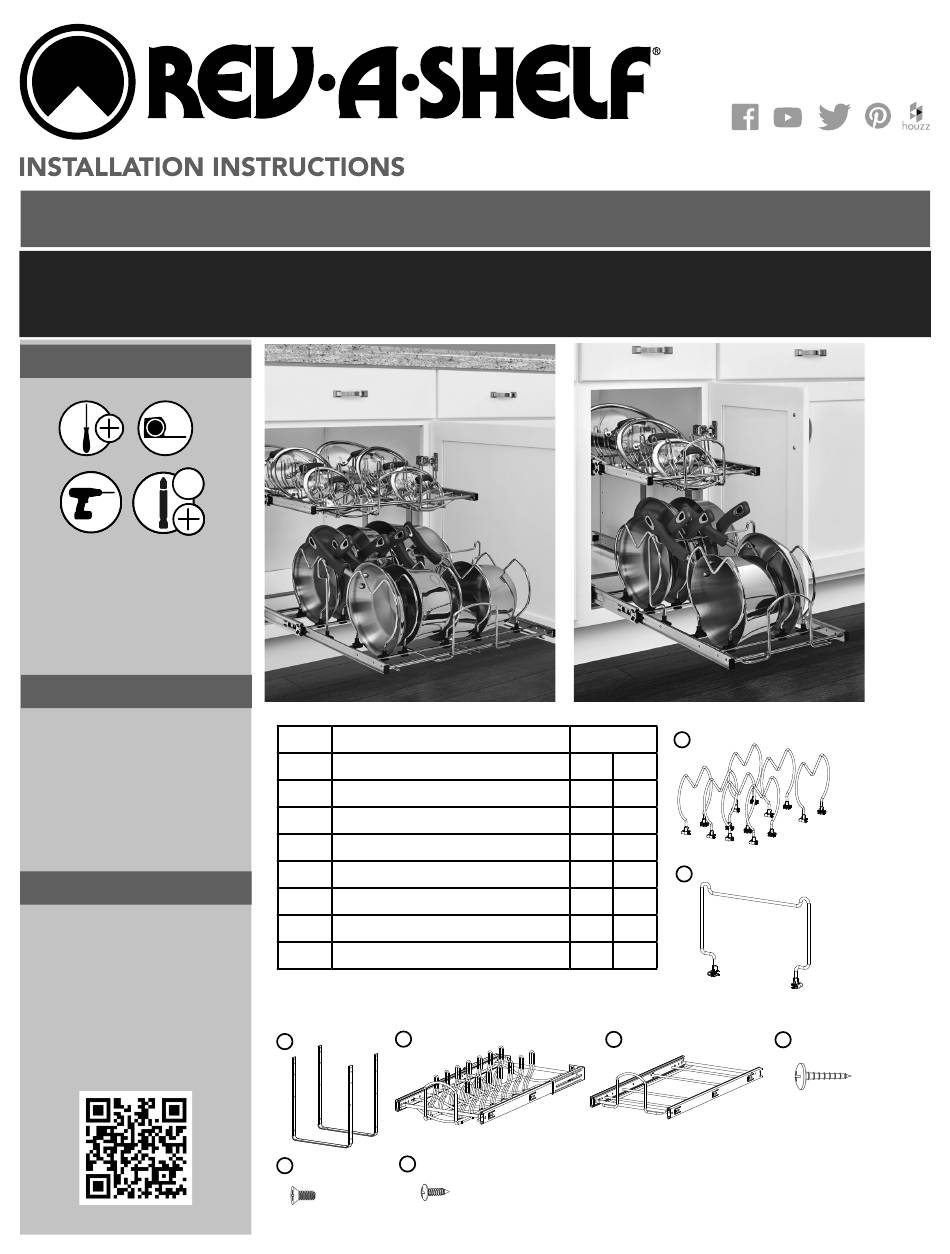

INSTALLATION INSTRUCTIONS: COOKWARE ORGANIZER
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
A
Qty.
7
14
1
2
2
1
B
1
4
16
5
E
F
I-CO5CW2-0521
Advertisement
Related Manuals for Rev-A-Shelf CO Series
Summary of Contents for Rev-A-Shelf CO Series
- Page 1 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 CO AND 5CW2 SERIES Note 1: Be sure to measure cabinet opening and basket width to make sure basket will clearly pull out of the cabinet without interference. Note 2: All cabinets are built and constructed differently, some have a built-in shelf that is not easily removeable. This organizer can still be installed with the shelf in place, but note some taller items could hit the shelf when opening and closing.
- Page 2 U-shaped support bracket using (8) of the provided machine screws FIG. B (See Figure B). Note: start with the circular hole first and then proceed to the slotted hole. Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 3 STEP 3 FIG. C Attach the pair of top basket slides to one of the (3) height options of the U-shaped support bracket using (8) of the provided machine screws (See Figure C). Note: Ensure the correct installation position is being used as shown in Figure C.
- Page 4 1/2” screw and install into the side wall of the cabinet. STEP 6 FIG. F Use the (4) 3/4” wood screws to attach U-shaped unit to the floor of the cabinet. (See Figure F). Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 5 STEP 7 FIG. G Push the (2) rear metal sockets to the rear of the cabinet and attach both sides using the (4) 1/2” wood screws (See Figure G). Note: To ensure optimal performance it is recommended that the rear sockets are perfectly aligned.
- Page 6 An optional Door Mount Kit (Sold Separately) will attach your cabinet door to your Rev-A-Shelf product. Part # WATCH TUTORIALS OF OUR PRODUCTS BEING INSTALLED RV-DM17KIT-5 5WB-DMKIT WWW.REV-A-SHELF.COM/VIDEOS 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126...
- Page 7 12400 Earl Jones Way Louisville, KY 40299 rev-a-shelf.com Customer Service: 800-626-1126 INSTRUCCIONES DE INSTALACIÓN / INSTRUCTIONS D’INSTALLATION SERIE CO Y 5CW2 / MODÈLES CO ET 5CW2 NOTA: Asegúrese de medir la apertura del gabinete y el ancho de la canasta para estar seguro de que la canasta podrá salir fuera del gabinete sin ninguna interferencia.
- Page 8 Fixez les glissières inférieures en vissant les (8) vis fraisées fournies (voir illustration B) dans les trous de la partie inférieure du support en forme de U. Remarque : Commencez par le trou circulaire, puis passez au trou rainuré. Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 9 PASO 3 / ÉTAPE 3 FIG. C Fije el par de deslizadores de la canasta superior a una de las tres (3) opciones de altura del soporte de sujeción en forma de U utilizando ocho (8) de los tornillos para máquina suministrados (véase la figura C).
- Page 10 U al suelo del gabinete (véase la figura F). Utilisez les (4) vis à bois de 3/4 po pour fixer l’unité en U au fond de l’armoire. (Voir illustration F). Customer Service: 800-626-1126 | rev-a-shelf.com...
- Page 11 PASO 7 / ÉTAPE 7 FIG. G Empuje los dos (2) enchufes metálicos traseros hacia la parte posterior del gabinete y fije ambos lados usando los cuatro (4) tornillos para madera de 1/2” (véase la figura G). Nota: Para garantizar un rendimiento óptimo se recomienda que los enchufes traseros estén perfectamente...
- Page 12 Un juego opcional de montaje para puertas (que se vende por separado) fijará la puerta de su gabinete a su producto Rev-A-Shelf. Un kit de montage de porte en option (vendu séparément) permettra de fixer la porte de votre armoire à votre produit Rev-A-Shelf.
