Cabinet Preparation

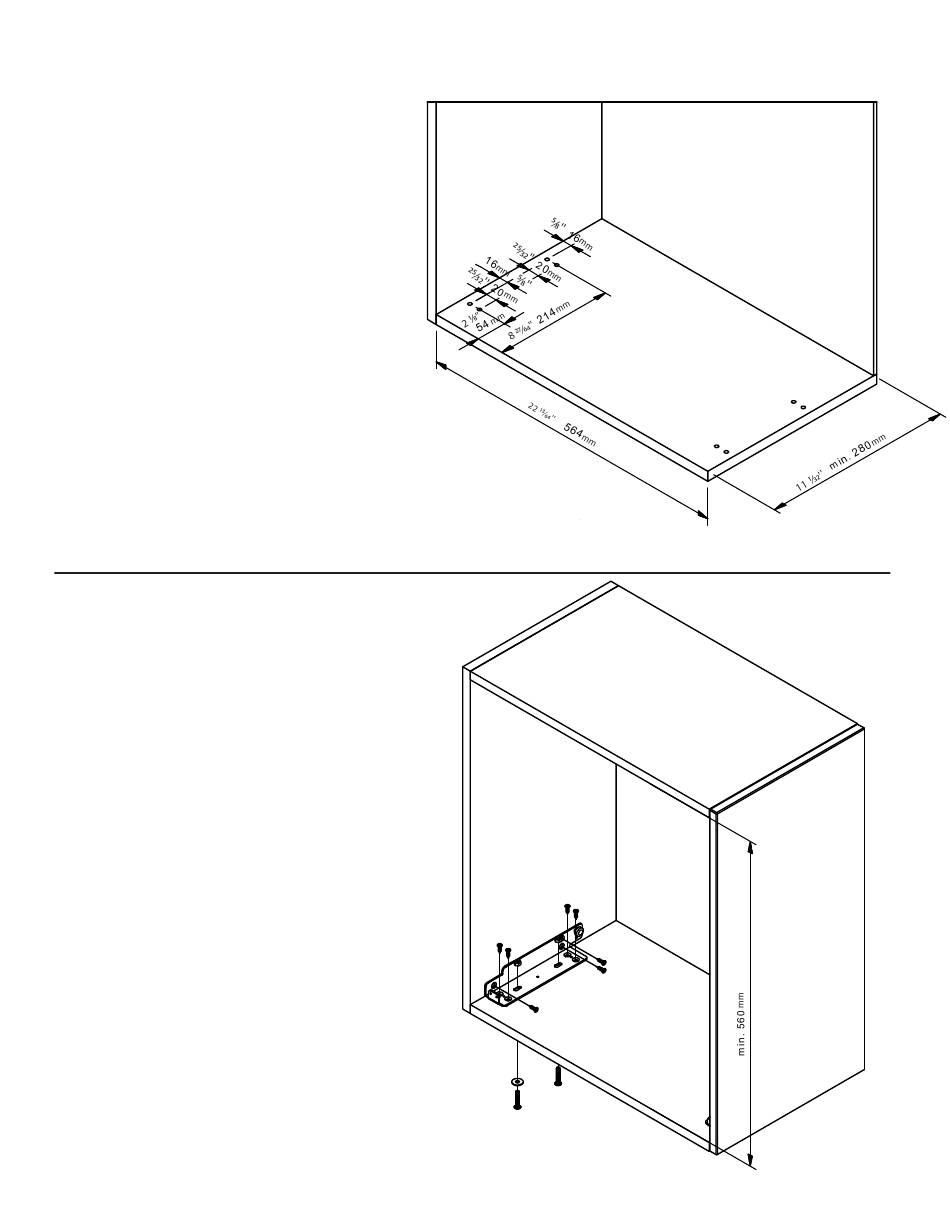

1) Refer to the measurements shown in Figure 1
for your cabinet hole locations.
* NOTE: If wall-to-wall width is exactly 564mm, the unit can be side mounted at a higher location.
2) Place the Left (A) and Right (B) Base Brackets on
their appropriate sides and secure to the cabinet floor
using 8 of the Wood Screws (#5)
3) Comi ng from underneath your wall cabinet floor,
secure the brackets by inserting the 1-1/4" x 1/4" Bolt
(#1) with washer (#3) & 1/4" Cap Nut (#2).
