Eaton Cutler-Hammer S701X25N3BP Instruction Leaflet

Description

The S701 device is a reduced voltage soft start controller
designed to control acceleration and deceleration of three-
phase motors. With the Auxiliary Contact Option, it is possible
to control an external bypass to reduce heating and lengthen
acceleration and deceleration times.
The S701 provides the user with the ability to adjust initial
torque, ramp up and down time, and also select kick start for
high inertia loads.

Installation

WARNING
DO NOT INSTALL OR PERFORM MAINTENANCE ON THIS
DEVICE WHILE EQUIPMENT IS ENERGIZED. DEATH OR
SEVERE PERSONAL INJURY CAN RESULT FROM CON-
TACT WITH ENERGIZED EQUIPMENT. VERIFY THAT NO
VOLTAGE IS PRESENT BEFORE PROCEEDING WITH
INSTALLATION OR MAINTENANCE.
Only qualified persons, as defined in the National Electric
Code, who are familiar with the installation, maintenance and
operation of this device and the equipment onto which it is to
be installed, as well as applicable local, state and national reg-
ulations and industry standards and accepted practices
regarding safety of personnel and the equipment safety should
be permitted to install, maintain or operate this device. These
instructions are provided only as a general guide to such quali-
fied persons and are not all-inclusive. They do not cover every
application or circumstance which may arise in the installation,
maintenance or operation of this equipment. Users are advised
to comply with all local, state and national regulations and
industry standards and accepted practices regarding safety of
personnel and equipment.
CAUTION
REMOVE ALL POWER FROM THE INSTALLATION
BEFORE ATTEMPTING TO INSTALL OR REMOVE THIS
DEVICE. THIS INCLUDES L1, L2, L3 AS WELL AS A1, A2,
11, 12, 13 and 14.

Mounting Guidelines for S701X25N3BP

Important — The controller is designed for vertical mounting in
free air. If the controller is mounted horizontally, the load cur-
rent must be reduced to 50% of rated current.

Maintenance

Cooling fins must be kept clean and free from dust. The airflow
must not be blocked.
Effective 01/02
Instruction Leaflet for the S701X25N3BP
Soft Start Controller with Auxiliary Contact

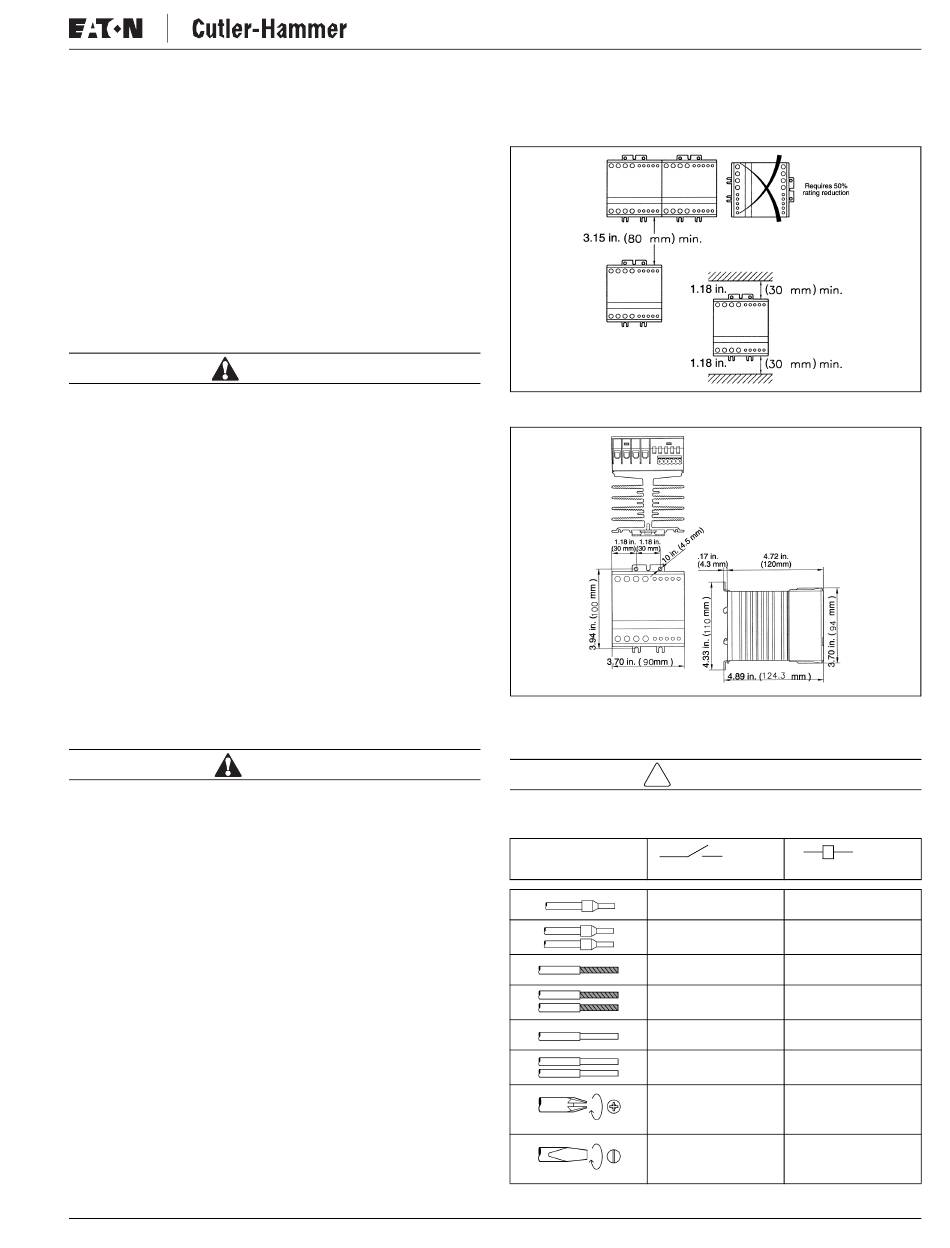

Figure 1. Recommended Mounting Distance
Figure 2. Dimensions

Wiring Directions

IMPORTANT
!
When using electrical or pnuematic tools for screw termi-
nals, observe maximum torque limits.
75°C AWG (mm
18 - 10 (1.5 -6)
*
16 - 10
(2 x 1.5-6)
16 - 10 (1.5 - 6)
*
2 x 16 - 10
(2 x 1.5 - 6)
18 - 8 (1 - 10)
*
2 x 18 - 10
(2 x 1 - 6)
Posidrive 1
1.2 Nm max.
[4.4 lb-in max.]
6 mm
1.2 Nm max.
[4.4 lb-in max.]
* UL Tested.
Pub 49442
2 ) AWG (mm 2 )
20 - 16 (0.5 - 1.5)
2 x 20 - 18
(2 x 0.5 - 0.75)
20 - 16 (0.5 - 1.5)
2 x 20 - 16
(2 x 0.5 - 1.5)
20 - 16 (0.5 - 1.5)
2 x 20 - 16
(2 x 0.5 - 1.5)
N/A
3 mm
0.4 Nm max.
[3.5 lb-in max.]
1
