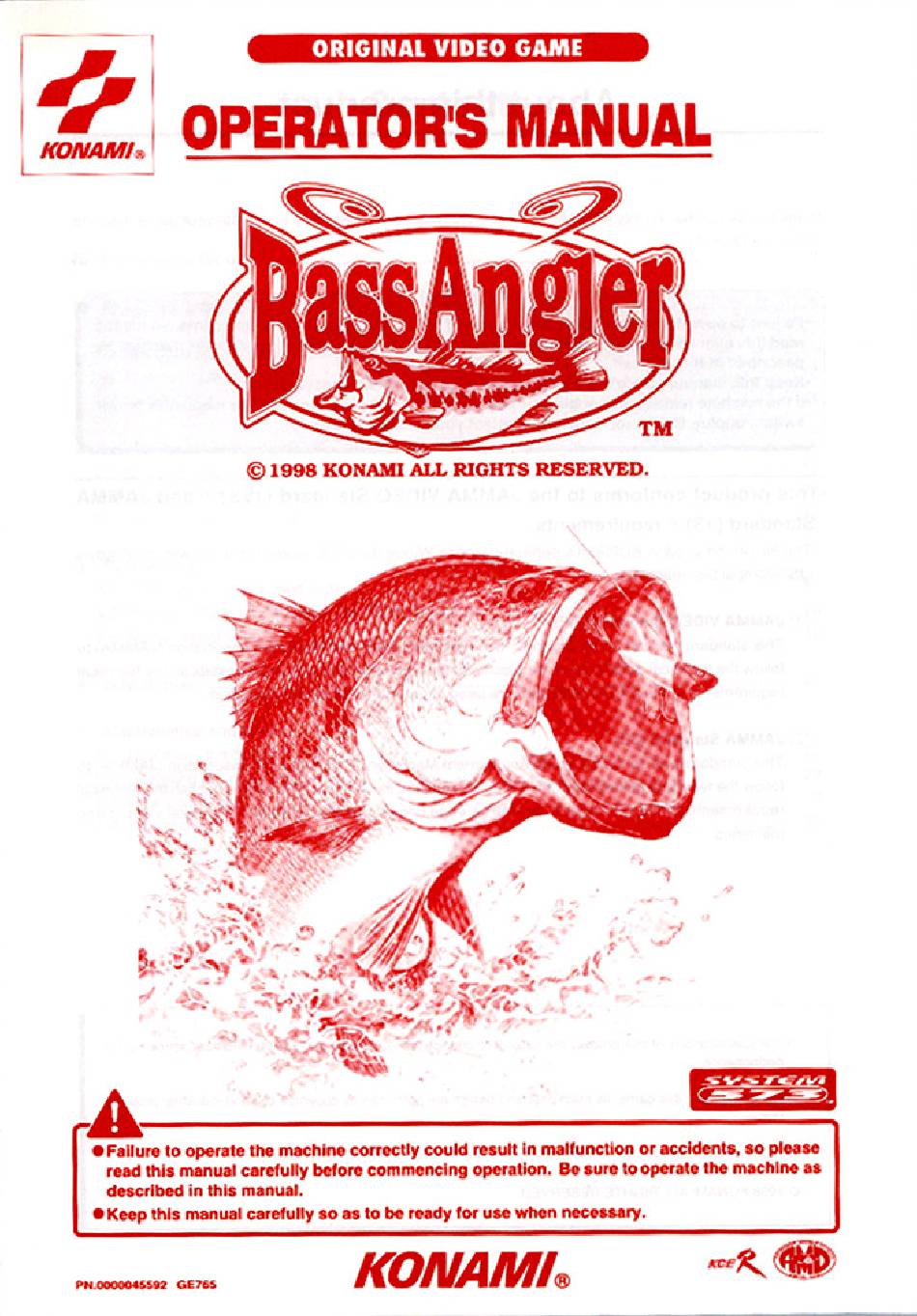

  • Page 2 About this product Thank you for purchasing this KONAMI product. This manual explains how to operate your game machine correctly and safely. •Failure to operate the machine correctly could result in malfunction or accidents, so please read this manual carefully before commencing operation. Be sure to operate the machine as described in this manual.

  • Page 3: Table Of Contents

    Contents Precautions for use ……………………………………………………………………………………… 2 …………………………………………………………………………………………………………………… 6 1 Names of parts and specifications 1-1 Names of parts ……………………………………………………………………………………… 10 1-2 Specifications ………………………………………………………………………………………… 11 2 Setting the kit in the machine 2-1 Setup procedure ……………………………………………………………………………………… 12 2-2 Connecting the connectors ………………………………………………………………………… 12 2-3 Installing the control panel ……………………………………………………………………………...

  • Page 4: Precautions For Use

    Precautions for use In this manual, the precautions to be followed without fail in order to prevent damage to persons to install, use or maintain “BASS ANGLER ” or other persons or to properties are shown as follows. Be sure to read the following •The following suggestions show the degree of danger and damage caused when the product is...
  • Page 5 Precautions for use Setting Up WARNING •Be sure to follow the installation instructions. Wrong handling may cause a machine trouble or accident. Contact a industry specialists or your nearest dealer for installing this kit. •Handle this kit with due care when installing it. ·Wrong handling may cause kit trouble or accident.
  • Page 6 Precautions for use Operation WARNING •If by any chance smoke, unusual smell or noise comes out of the kit, immediately turn OFF the machine’s power switch and unplug the power cord. Do not operate the kit. ·Using the kit in abnormal conditions could result in fire or accidents. プ...
  • Page 7 Precautions for use Inspection and cleaning WARNING •Be sure to turn OFF the machine’s power switch and unplug the power cord from the receptacle before inspecting or cleaning the kit. ·Failure to do so could result in electrical shock. プ グ •When replacing parts, be sure to use parts of the correct specifications.
  • Page 8 BASS ANGLER...
  • Page 10 ( Security cassette )

  • Page 12: Names Of Parts And Specifications

    1 Names of parts and specifications 1-1 Names of parts Security label Reel connector Safety label Security cassette PCB unit 1 CD-ROM drive 2 JAMMA connector (JS) (Cord edge connector) 3 Power connector (JVS) 4 Option terminal 1 5 Option terminal 2 6 DIP switch 7 I/O terminal(JVS) 8 RGB (video) terminal (JVS)

  • Page 13: Specifications

    •No sound volume control is provided on the PCB unit. Adjust the sound volume on the “SOUND OPTIONS” screen in the manual test mode. (See page 20.) The speaker terminals of cabinets by manufacturers other than KONAMI may be incompatible in the specifications.

  • Page 14: Setting The Kit In The Machine

    2 Setting the kit in the machine 2-1 Setup procedure Using wood screws, attach the PCB unit tightly on the wooden board in any of the positions shown below. Then fix the wooden board in the machine. (Prepare the screws yourself because the kit dose not come with those wood screws.) •Before installing the PCB unit, be sure to turn OFF the machine’s power switch and unplug the power cord from the receptacle.

  • Page 15: Installing The Control Panel

    2 Setting the kit in the machine Setting up in a “Windy II ” machine Place the wooden board, with the PCB unit on, in the specified position LINE R1 in the machine. LINE L1 RGB 1 Connect the connectors to the PCB unit in their specified positions.
  • Page 16 2 Setting the kit in the machine Open the machine’s control panel and Cover tilt up the cover until its stays get locked. •For opening the control panel and the cover, refer to the machine’s instruction Stay Manual. •On the “Windy ”...
  • Page 17 2 Setting the kit in the machine Control panel reinforcement Clamp Attach the reel-fitted control panel Square-neck screw with the screws (removed in Step 5). (M4x20L) At this time, fit the reinforcement to Flange nut the spot shown at right using the (6 locations) accompanying square-neck screw.
  • Page 18 2 Setting the kit in the machine •For use on KONAMI’s general-purpose “WindyII ” or “Windy ” machines, the maintenance key nut that fixes the machine’s control panel or the key hook nut may get loose after long hours of use. Just when the kit has been installed as well as at regular intervals thereafter, check to see if these nuts are not loose.

  • Page 19: Pcb Settings

    3 PCB settings 3-1 PCB start-up check (self test) When this kit has been set up, turn ON the machine’s power switch. The game Printed Circuit Boards (PCB) will be automatically checked for its performance. The test results will be displayed on the screen.

  • Page 20: Adjusting The Game Environment (Manual Test)

    3 PCB settings 3-2 Adjusting the game environment (manual test) Manually check and change the settings for the screen displays and game contents. Starting the manual test mode 1 Turn ON the machine’s power switch. 2 While the demo game is on, press the machine’s test switch. (If the power switch is turned on with the test switch down, the current settings will be erased and replaced by the factory settings.) •The manual test mode is called and the main menu appears on the screen.

  • Page 21: Mode Descriptions

    3 PCB settings 3-3 Mode descriptions The original factory settings are displayed in green; the changed settings are displayed in red. Move the reel up and down to select an item to be modified, and move it right and left to change its setting.
  • Page 22 3 PCB settings SCREEN CHECK Adjusting the screen width Mode for checking the screen display. Adjust the width and factors of the monitor screen while watching the crosshatch pattern. Use the machine’s monitor adjustment PCB to make the adjustments. To return to the main menu screen, press the start button. COLOR CHECK Adjusting the display color Mode for checking the display color.
  • Page 23 3 PCB settings DIP SWITCH SETTINGS Indication of DIP switch settings Mode for indication of DIP switch settings Set all the DIP switches to the OFF position. To return to the main menu screen, press the start button. JVS CABINETS Displaying the JVS information This is not selectable when the PCB unit is used in the “Windy ”...
  • Page 24 3 PCB settings GAME OPTIONS Setting the game options This screen is used to make game settings and to check them. Select an item by moving up and down the reel and change its setting by moving it right and left. To return to the main menu screen, select “SAVE AND EXIT”...
  • Page 25 3 PCB settings COIN OPTIONS Setting the coin options This screen is used to make game play charge settings and to check them. Select an item by moving up and down the reel and change its setting by moving it right and left. To return to the main menu screen, select “SAVE AND EXIT”...
  • Page 26 3 PCB settings BOOKKEEPING Displaying the coin data In this mode, the total data on the number of coins put into the machine is displayed. If the time is preset in this mode, the total data on the number of coins put into the machine can be viewed by coin slot.
  • Page 27 3 PCB settings CLEAR BOOKKEEPING INFORMATION This mode is used to clear the coin total data. To clear the data, the “YES/NO” prompt appears twice for two YES’s. The “BOOKKEEPING” screen comes back again. ADJUST SYSTEM CLOCK This mode is used to set and adjust the system clock. Set the time difference from the Greenwich Mean Time (GMT).

  • Page 28: How To Play

    4 How to Play The “BASS ANGLER ” is a simulated bass fishing game. You can play alone on an existing or imaginary lake. Try to land the biggest fish and take first place in the tournament. The controls correspond to the specific control panel.
  • Page 29 4 How to play Casting the line 1 Move the reel right and left to decide a casting direction. 2 Press the cast button (start button) once, and the power gauge appears fluctuating. When a desired casting force comes, press the cast button again. The line is cast according to the then force on the power gauge.

  • Page 30: Maintenance And Annex

    5 Maintenance and annex 5-1 Replacing the button How to replace the button •Before replacing the button, be sure to turn OFF the machine’s power switch and unplug the power cord from the receptacle. Open the machine’s panel. Button •Refer to the machine’s instruction manual. Wires MEMO Disconnect the wires from the button.

  • Page 31: Resetting The Circuit Protector

    5 Maintenance and annex 5-2 Resetting the circuit protector If an overcurrent or short-circuit occurs or if the PCB unit is given a strong shock, the circuit protector will be automatically activated to protect the circuitry of the PCB unit. To reset the circuit protector, turn OFF the machine’s power switch, unplug the power cord from the recep- tacle, pinpoint and remove the cause, and press the button of the circuit protector.

  • Page 32: Reel Unit Layout

    5 Maintenance and annex 5-3 Reel unit layout 4-10 Brown Black Yellow 1P connector Blue Ground cable connector Green Ground cable (Green/Yellow) Orange Ground cable (Green/Yellow)
  • Page 33 5 Maintenance and annex Part # Quantity Remarks Part name Reel case (right) 0000046042 Reel case (left) 0000046049 Reel switch 0000046048 Include 4-1 to 4-10 Mechanism unit 0000045954 Brake 0000043719 Brake bracket 0000046038 Shaft 0000046039 Cable wheel 0000045026 Gear 0000045025 Leaf spring 0000046041 Photo sensor...
  • Page 34 MEMO...
