Non ROUTE
How to Collect Pre-set Non ROUTE Measurements
OR
• Press the Type In button to manually enter the running speed using the numeric
keypad.
• Press the OK function button to save the specified RPM value and begin data
collection, or press the Cancel button to discard changes.
OR
• Press the Spec button to manually enter the RPM value from the spectral display.
After autoranging and data acquisition is complete, the Enter RPM display appears.
• Use the arrow buttons to navigate the cursor over the spectrum to indicate the 1X
RPM (1X running speed).
• Press the OK function button when the cursor is located on the spectrum's 1X
frequency. Data collection begins.

Collecting and Displaying Orbit Data

After pressing an Enter button from the Orbit Setup screen, or after specifying the
measurement's RPM value, data collection takes place and the orbit display appears.
A - 8

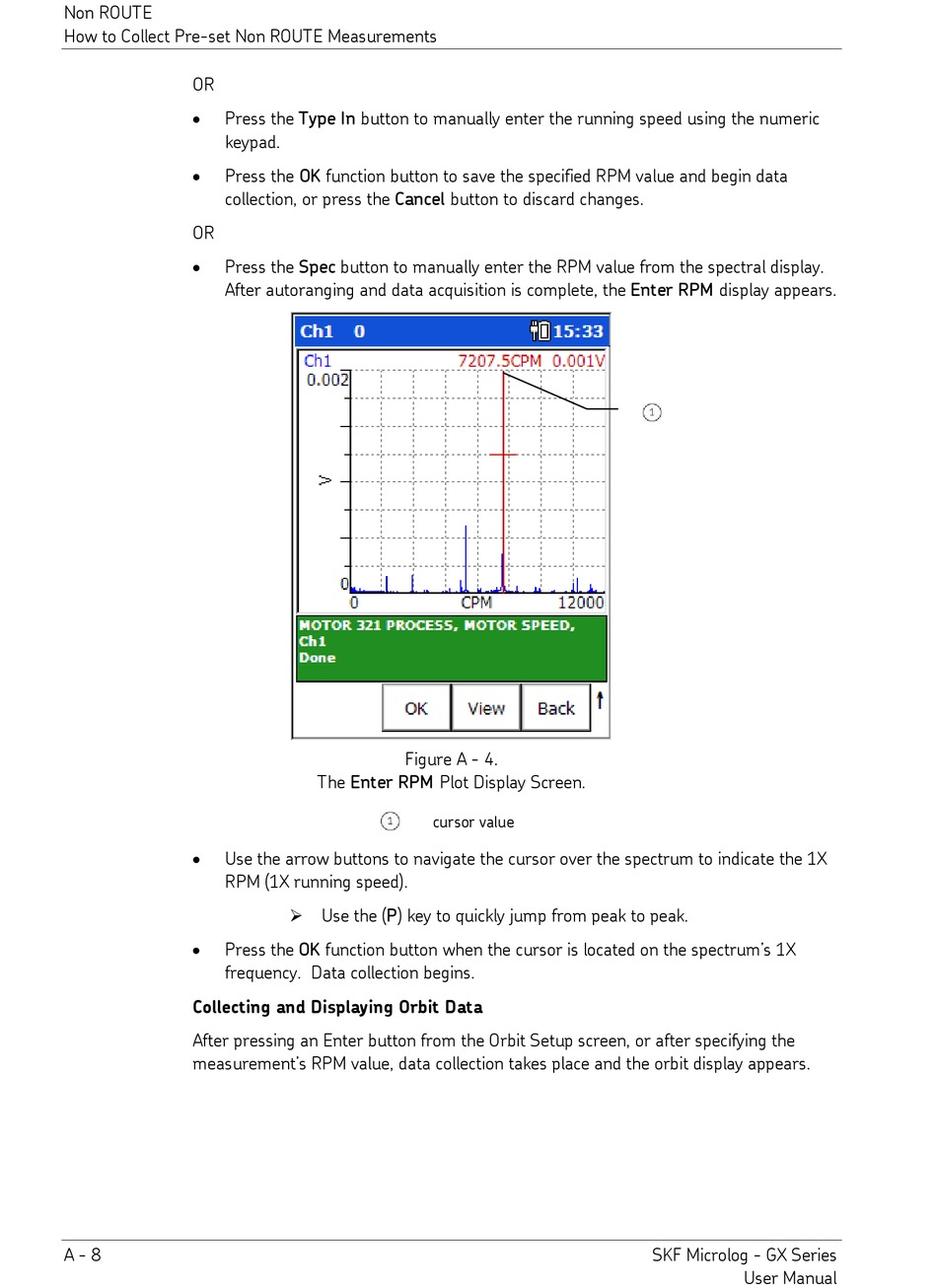

Figure A - 4.

The Enter RPM Plot Display Screen.

cursor value
 Use the (P) key to quickly jump from peak to peak.
