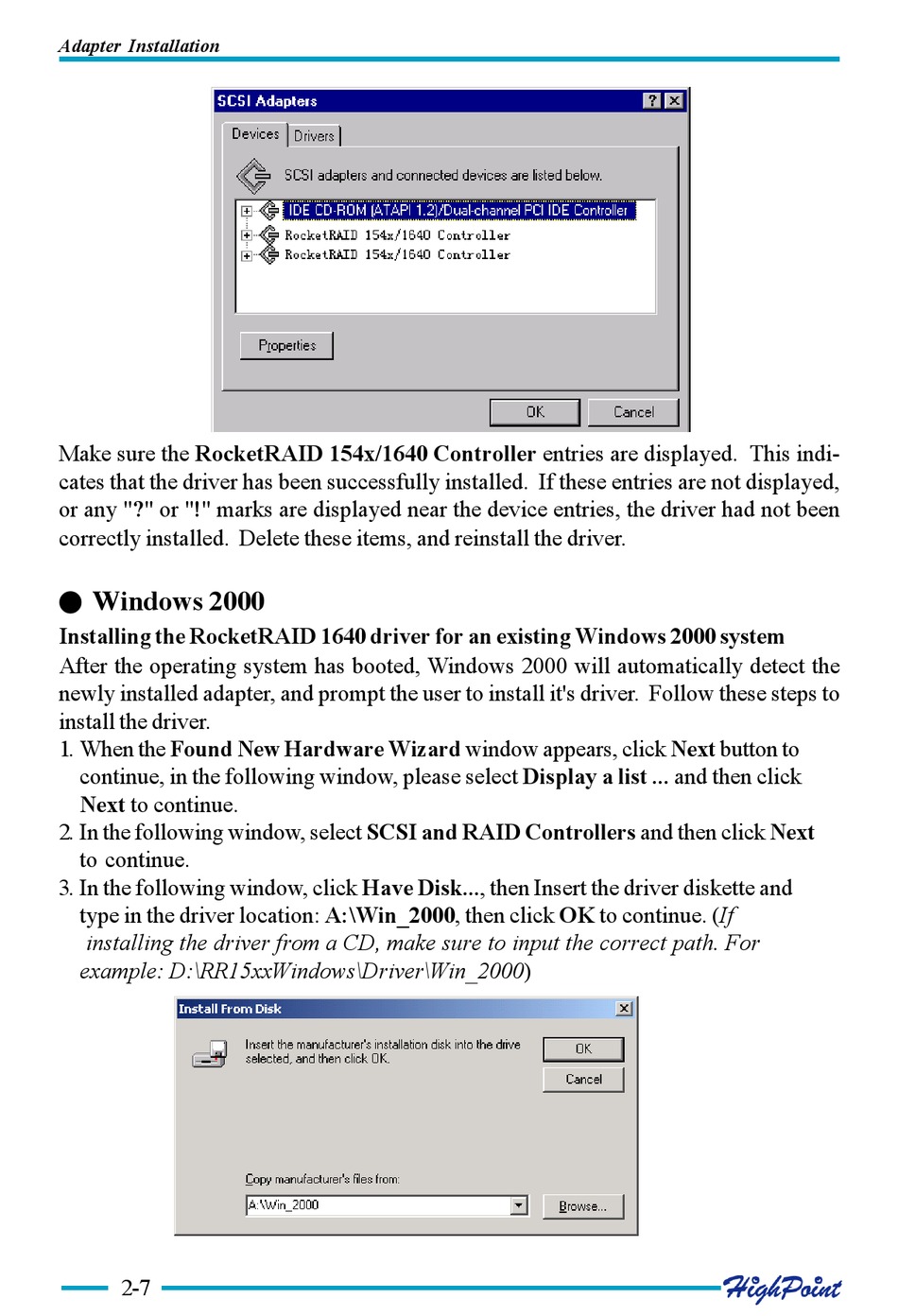

Adapter Installation
Make sure the RocketRAID 154x/1640 Controller entries are displayed. This indi-
cates that the driver has been successfully installed. If these entries are not displayed,
or any "?" or "!" marks are displayed near the device entries, the driver had not been
correctly installed. Delete these items, and reinstall the driver.
Windows 2000
! ! ! ! !
Installing the RocketRAID 1640 driver for an existing Windows 2000 system
After the operating system has booted, Windows 2000 will automatically detect the
newly installed adapter, and prompt the user to install it's driver. Follow these steps to
install the driver.
1. When the Found New Hardware Wizard window appears, click Next button to
continue, in the following window, please select Display a list ... and then click
Next to continue.
2. In the following window, select SCSI and RAID Controllers and then click Next
to continue.
3. In the following window, click Have Disk..., then Insert the driver diskette and
type in the driver location: A:\Win_2000, then click OK to continue. (If
installing the driver from a CD, make sure to input the correct path. For
example: D:\RR15xxWindows\Driver\Win_2000)
2-7
